2-2
2.2 For Speed and Positioning Controls
Figure 2.2 shows connection diagram examples for speed and positioning controls.

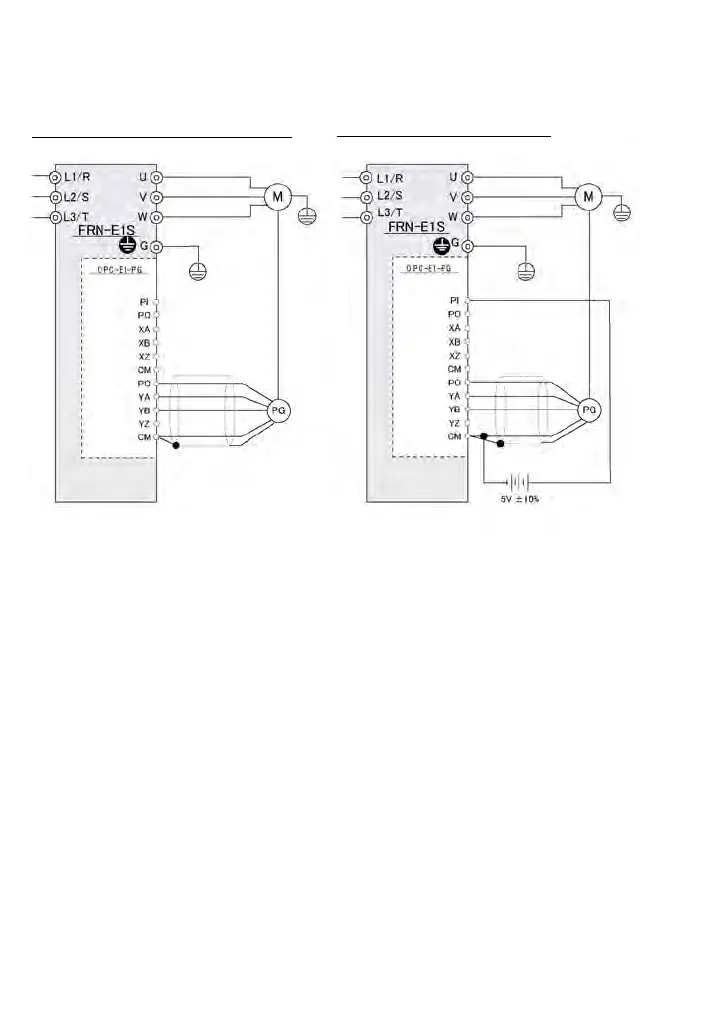

Figure 2.2 Connection Diagrams for Speed Control with PG and Positioning Control
When using inverter internal power suppl
y
When using external power suppl
y
