Fuji Electric Model: PXR4 User Manual

– 5 –
2. Warning
2.1 Cautions on installation
Avoid the following places for installation.
• a place where the ambient temperature may reach beyond the range of from 0 to 50∞C while in
operation.
• a place where the ambient humidity may reach beyond the range of from 45 to 85% RH while in
operation.
• a place where a change in the ambient temperature is so rapid as to cause
condensation.
• a place where corrosive gases (sulfide gas and ammonia gas, in particular) or combustible gases are
emitted.
• a place where the unit is subject directly to vibration or shock.
• a place exposed to water oil, chemicals,steam and vapor.
(if immersed with water, take the inspection by sales office to avoid an electrical leakage and firing )
• a place where the unit is exposed to dust, salt air, or air containing iron particles.
• a place where the unit is subject to intereference with static electricity, magnetism, and noise.
• a place where the unit is exposed to direct sunlight.
• a place where the heat may be accumulated due to the radiation of heat.
2.2 Caution on installation on panel
• Insert the mounting bracket (accessory) from the rear side until the main unit is securely fit into the
panel. If there should be a play, tighten two screws lightly until the play is eliminated. (Do not tighten
the screws excessively because the mounting bracket can be removed from the stopper by the force.)
• The front side of this controller conforms to NEMA 4X(equivalent with IP66). To ensure the
waterproofness between the instrument and the panel, use packings that are provided as accessories
in the following manner: (The improper fitting of packings will ruin the waterproofness.)

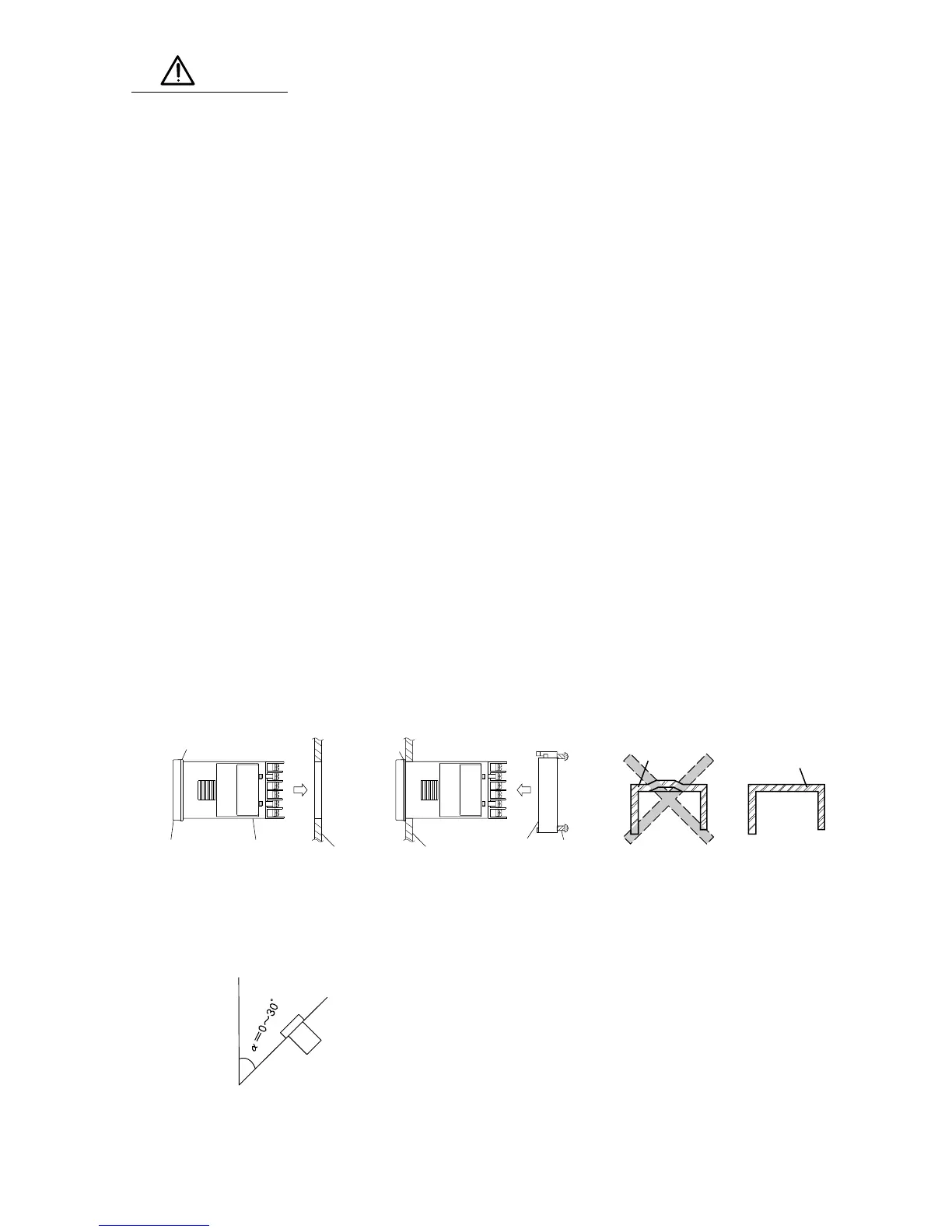

q As shown in Figure 1, fit a packing to the case of the unit and then insert it in the panel.
w Tighten screws on the fixing frame or fixtures so that no gaps are given between the front of
controller and packing and between panels. Check that there are no deviation and deformation of
packing as shown in Fig.3.
No. 000001T
PXR4TAA1-1YM00-D
MFD 2000-04 No. 000001T
PXR4TAA1-1YM00-D
MFD 2000-04
Figure 1 Figure 2
Unit Unit
Front
Case
Panel
PackingPacking
Panel
Mounting
bracket
Screw
Figure 3
Packing
Packing
Case
Case
(Bad) (Good)
Standard : Vertical mounting, flush on the panel. (The controller is horizontal.)
When mounting the controller on tilted surface, the maximum tilt angle is 30° (degree) from virtical.
(Caution)
• Don’t block the openings around the controller, or radiation effect will be reduced.
• Don’t block the ventilation openings at the top of the terminal block.

Fuji Electric Model: PXR4 Specifications

Power

power voltage	100 (- 15%) to 240V AC (+10%)
power consumption	15V AC or less/240V AC
maximum current	20mA or less

Outputs

relay contact output 1	SPDT contact, 220VAC / 30VDC 3A
relay contact output 2	SPST contact, 220VAC / 30VDC 3A
alarm output	Relay contact (SPST contact) 220V AC / 30V DC 1A

Operating Environment

ambient temperature	-10 to 50°C
operating ambient humidity	90%RH or less
preservation temperature	-20 to 60°C
