-20-
Reference Guide Optional Units
iv
Finisher B
p.20 Device Components
p.23 Outputting Paper
p.24 Staple Cartridge
p.28 Waste Container
p.28 Paper Jams

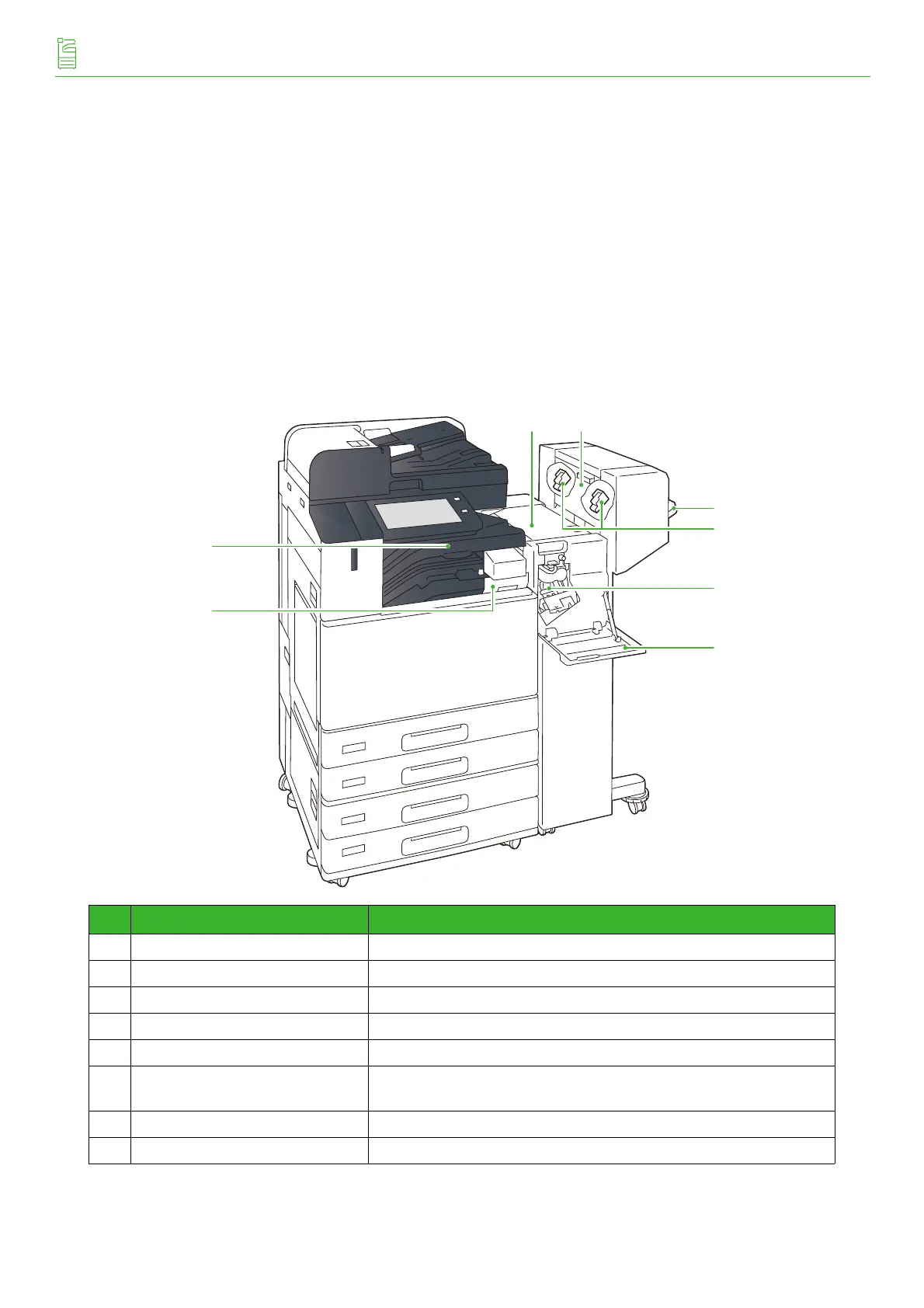

Device Components
No. Name Description
1 Upper Cover Open this cover to clear paper jams.
2 Side Door Open this door when replacing staples for saddle stitch.
3 Finisher Tray Finished paper is ejected.
4 Staple cartridges for saddle stitch This unit is used to replace staples for saddle stitch. There are two.
5 Staple cartridge for side stitch This unit is used to replace staples for side stitch.
6
Front Door Open this door to clear paper jams, replace staples or remove jammed
staples.
7 Center Tray Cover Open this cover to clear paper jams.
8 Hole Punch Waste Container Punched pieces go in here.
7
8
3
4
1
5
2
6
To Next Page
