Machine Components
39
Product Overview
2

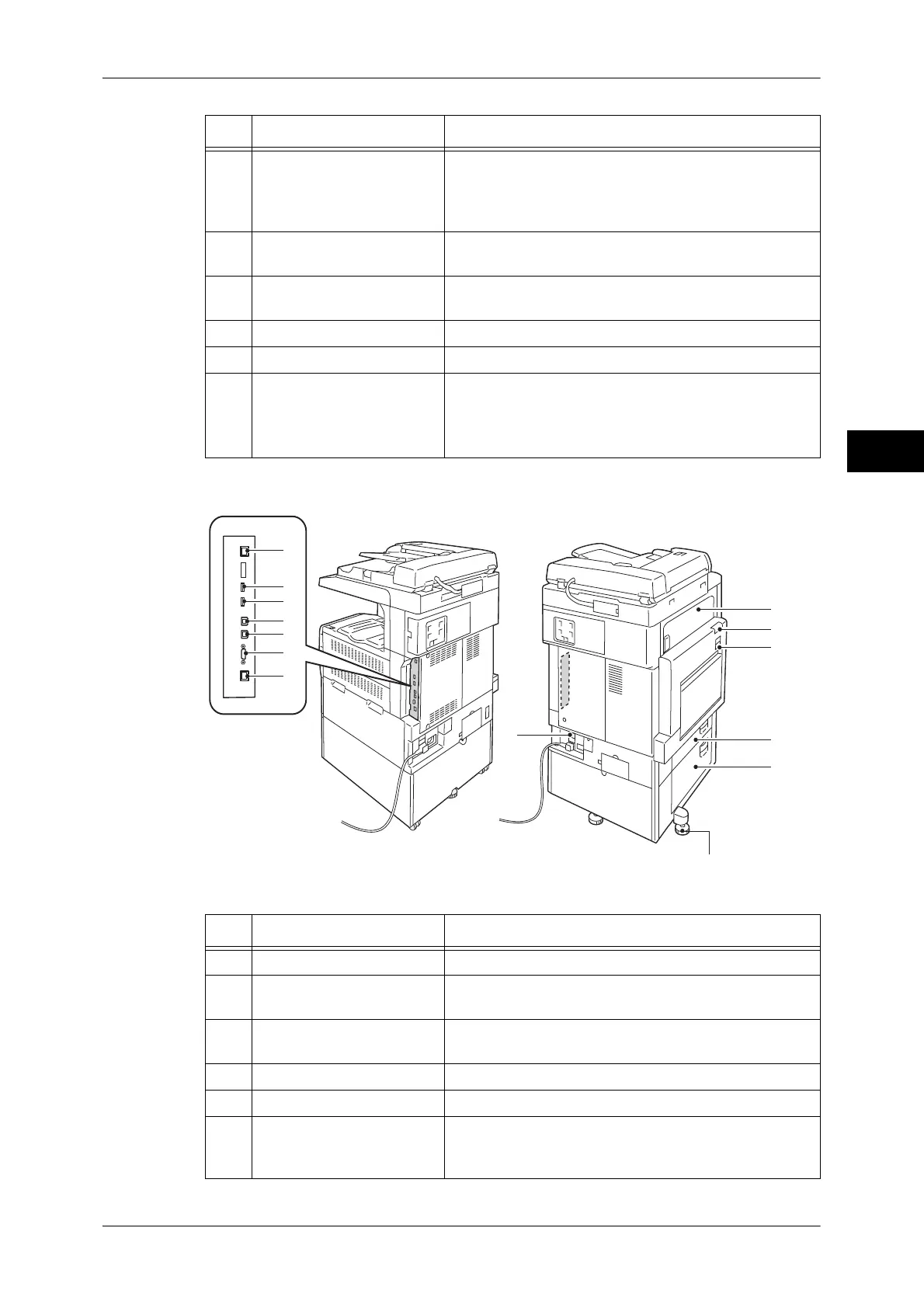

îš„Side and rear views of the machine
8 Tray 1, 2, 3, 4 Load paper here.
Note • The Envelope Tray (optional) can be inserted into
the slot for Tray 1. The standard Tray 1 cannot be
used when the Envelope Tray is used.
9 Locking casters Used for locking the wheels of the machine. Lock these
casters after moving the machine to its installation site.
10 Tray 5 Used for loading non-standard paper, such as
postcards, that cannot be loaded in Trays 1 to 4.
11 Side tray (Optional) Stacks up copies and prints with the face upward.
12 Stylus pen holder Stores the stylus pen.
13 Stylus pen Used for touching the touch screen on the control panel
to configure settings.
Note • You can directly touch the touch screen not only
with the stylus pen but also with a finger.
No. Component Function
1 Top left cover E Open this cover to clear paper jams.
2 Top left cover A Open this cover by lifting up the release lever to clear
paper jams.
3 Top left cover D Open this cover by lifting up the release lever to clear
paper jams.
4 Bottom left cover B Open this cover to clear paper jams.
5 Bottom left cover C Open this cover to clear paper jams.
6 Adjusting foot Prevents the machine from toppling over. Move the
machine to its installation site and then rotate this
adjuster in clockwise direction until it touches a floor.
No. Component Function
