222 A Appendix

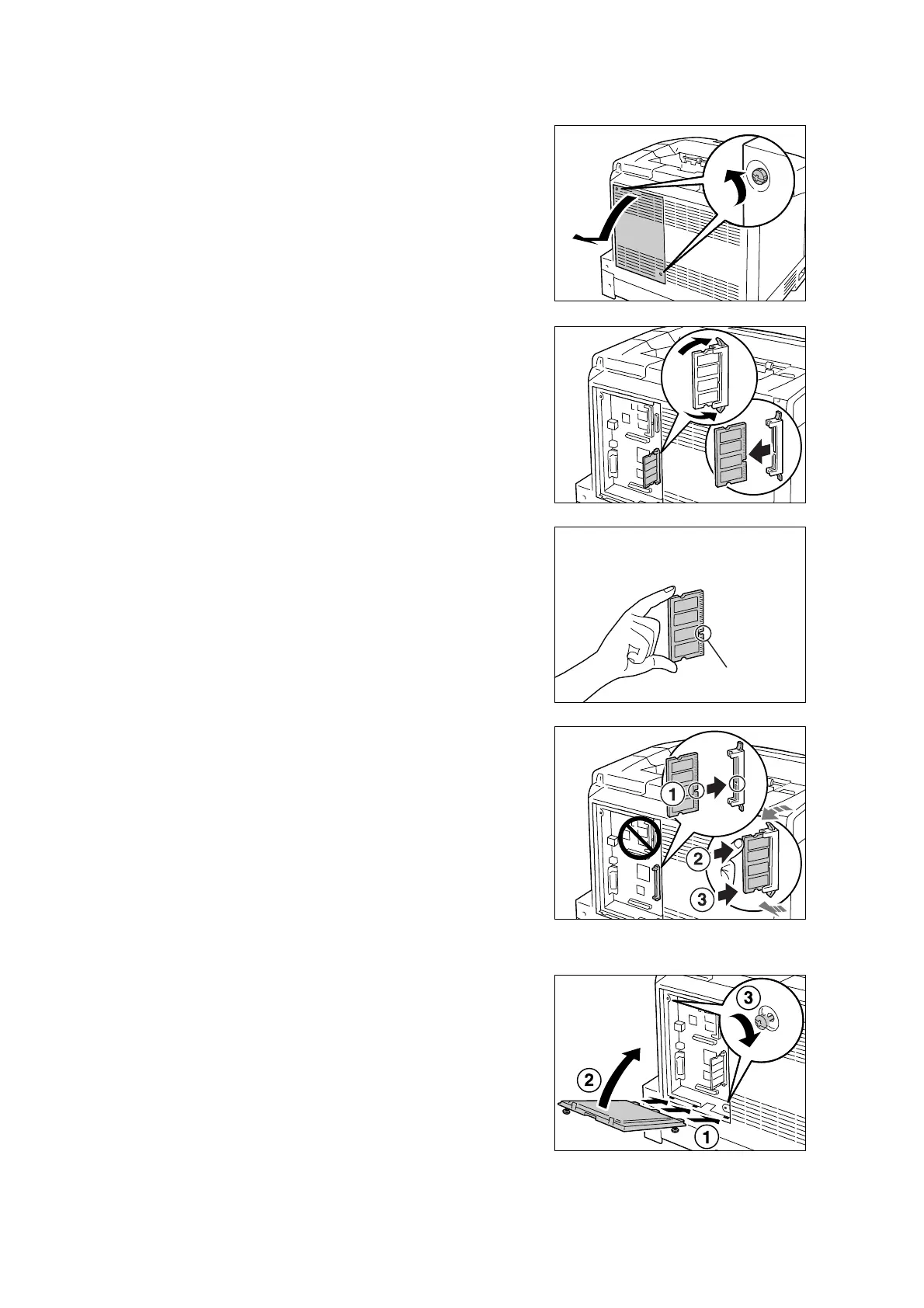

2. Loosen the two screws that secure the rear
cover to the printer.
Then, pull the rear cover forward and
remove it from the printer.
3. If another memory card is already installed,
push the retaining clips on both ends in the
outward direction and pull the memory card
straight out.
4. Hold the new memory card so that the
notch on the card comes below the center
of the card.
5. Align the notch on the new memory card
with the projection on the ROM slot, and
insert the memory card into the slot.
When the memory card is installed
correctly, the retaining clips on both ends
stand up.
Important
• The additional memory should be installed
perpendicular to the controller board. The slot at the
upper part of the controller board is for an optional
ROM which is installed parallel to the controller board.
Make sure to insert the memory card into the correct
slot.
6. Re-attach the rear cover on the printer by
tightening the two screws loosened in Step
2.
7. Plug in the power cord and switch on the
power by pressing the power switch to the
<|> position.
