Fujitsu ASHG12LMCA User Manual

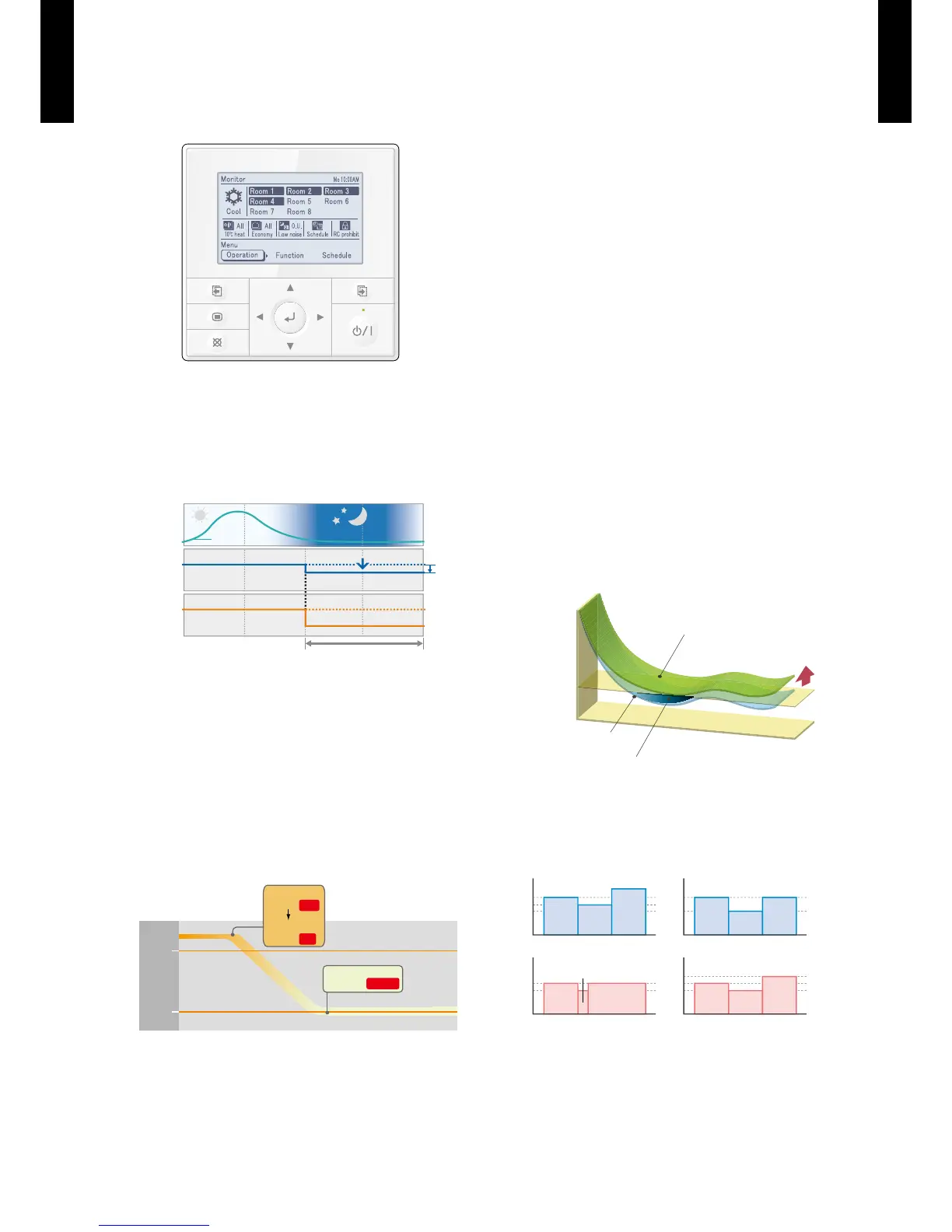

CENTRAL REMOTE CONTROLLER (Option)

 n  ii  n
Screen with backlight can be seen even in the dark
Wide and large keys easy to press, user-intuitive arrow 
key
Outdoor unit low noise operation

Users can choose from 4 low noise levels, 
depending on the installation environment.
100%
58dB
0
0
Heat load
Air
conditioning
load factor
Low noise operation
Operating
sound
Capacity
Down
(time)
10°C heat (All) operation

While this function is selected, all indoor units start 
the 10°C heat operation when all the indoor units
   in  n/ n n 
central remote controller.
When the room temperature is higher than 10°C, 
1  in  n . in
starts and maintains the room temperature at 10°C
when the temperature drops below 10°C.
When “10°C heat" operation stops, the room 
set temperature quickly returns to the preset
temperature.
10
°C
20
°C
Indoor unit
operation START
“10°C heat”
operation
All indoor units
ON
OFF
Economy (All) operation

   in n  ni  n  
economy mode, this can save more energy than
setting each indoor unit individually.
Economy operation is energy saving, as the set 
temperature of indoor unit is shifted by 1°C and
the maximum electric value of the outdoor unit is
suppressed.
Example : Cooling operation
Temp.
Economy operation
Shift
setting
temp
Control maximum current
Normal operation
Time
Set temperature
Schedule timer

in in n  n  im in  
day of the week, and 2 types of schedules can be
set to suit users' preference.
yadnuS~yad ru t aSyad i rF~yadnoM
7
7 712 13 13 1823 23
812 13 18 2217 23 Time
Temp.Temp. Temp.Temp.
Time
Time
Time
Summer
season
pattern
Winter
season
pattern
Cool Cool Cool Cool Cool Cool
Heat
Heat
Heat Heat
Heat
Heat
Prohibited Settings

The remote controller operation of all indoor units
comes with a lock function to prevent unapproved
operations in the various rooms.
The central remote controller also has a key lock
function to prevent children from playing with it, etc.
UTY-DMM

M
1.  
- (01 - 06) -
GENERAL INFORMATION GENERAL INFORMATION

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
