6. SYSTEM DESIGN
INDOOR UNIT (setting by wireless remote controller)5-3.
The function settings of the control of the indoor unit can be changed by this procedure


according to the installation conditions. Incorrect settings can cause the indoor unit to
malfunction.
After the power is turned on, perform the “FUNCTION SETTING” according to the


installation conditions using the remote controller.
The settings may be selected between the following two: Function Number or Setting


Number.
Settings will not be changed if disable numbers or setting numbers are selected.


PREPARATION


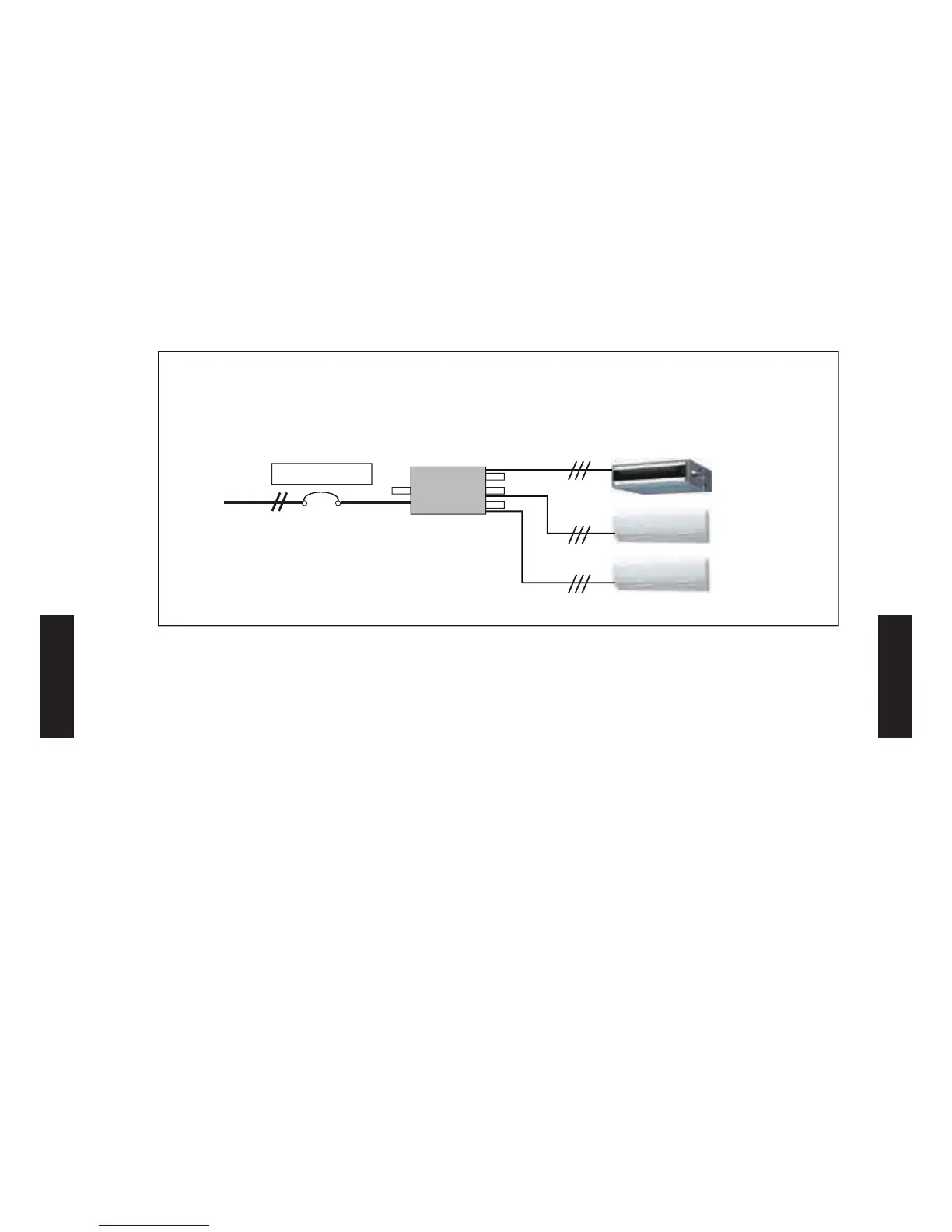

(1) Turn on the power through the Branch box.
Before turning on the power of the indoor units, make sure the piping air-tight test and vacuuming have

been conducted.
Also check again to make sure no wiring mistakes were made before turning on the power.

Indoor
units
Branch box
Breaker ON
- (06 - 57) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
