Fujitsu ASHG12LMCA User Manual

3. OUTDOOR UNIT & BRANCH BOX
BRANCH BOX3-2.
The branch box can be installed on a wall or suspended from the ceiling.


The branch box can be installed and set horizontally or vertically.


Proide a serice hoe or aintenance and inspection purposes as shown in the gure


below.
It is not necessary to perform any draining procedures on the branch box.


The slope of the top side must be within ±5° in all directions of the horizontal plane.


Use M8 or M10 for the bolt size when hanging.



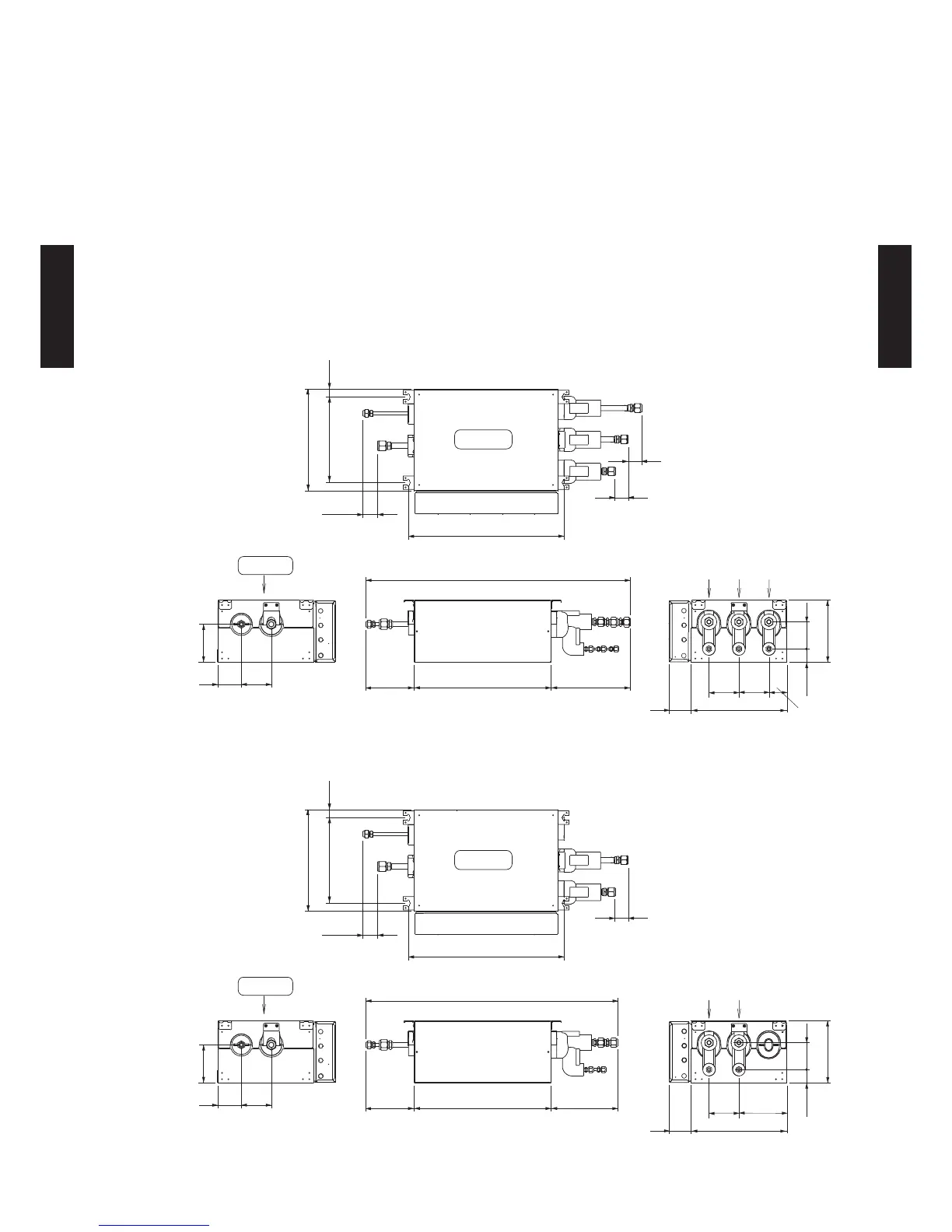

HORIZONTAL INSTALLATION3-2-1.
Be sure to install so that the top side faces up.
44
Top side
469
Hanger bolt pitch
Hanger bolt pitch
256
304
24
Top side
Outdoor unit side
Indoor unit side
(838)
433
154
251
(304)
120
195
69
UNIT A UNIT B UNIT C
40
40
75 95
85
42
57
95 95
[3 branches type]
44
Top side
469
Hanger bolt pitch
Hanger bolt pitch
256
304
24
Top side
Outdoor unit side
Indoor unit side
(798)
433
154
211
(304)
120
195
69
UNIT A UNIT B
40
75 95
85
42
95 152
[2 branches type]
Unit : mm
- (03 - 08) -
OUTDOOR UNITS OUTDOOR UNITS

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
