Fujitsu ASHG12LMCA User Manual

4. INDOOR UNITS
FLOOR TYPE1-5.
MODELS : AG


G09LVCA, AG

G12LVCA, AG

G14LVCA

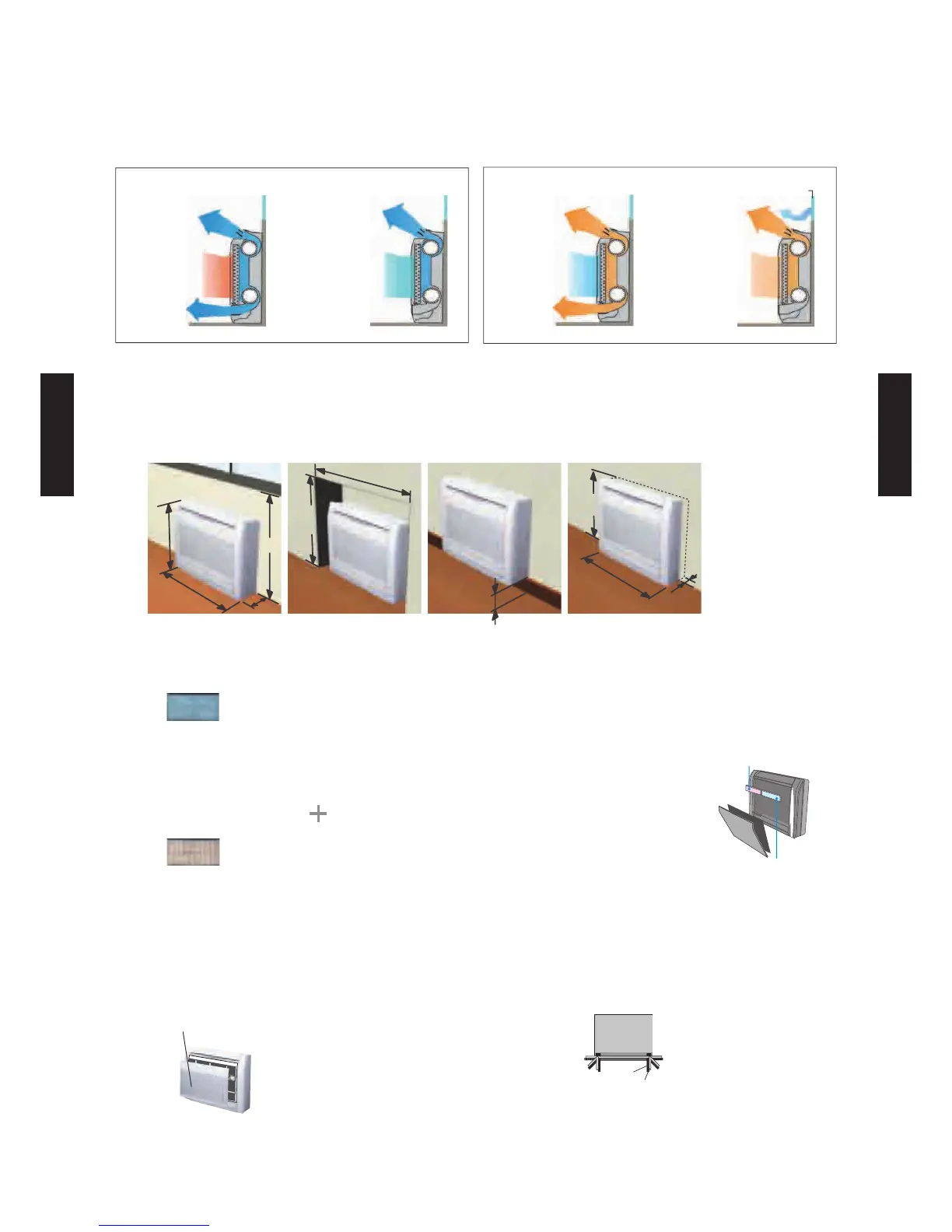

FEATURES

an  ide airow

Cooling
at operation
start
Prevents cold air
from falling
at stable
operation
at operation
start
Heating WindowPrevents cold
draft from
window
at stable
operation
Flexible & easy installation

Beneath
standard window
Standard concave
portion
Wall
Half concealed
(Optional parts necessary)
Min.
700
Min.
590
Min.940
Max. 150
Min. 730
Max.
80
600
740
200
700
nit 
Filter features

ongie ion deodoriation ter
he ter deodories b poweru decoposing absorbed odors using the oidiing and
reducing eects o ions generated b the utranepartice ceraic.
 he ter can be used or appro.  ears i it is washed under water to restore its surace
action when it is dirt.
sing dierent ters at both sides
ppecatechin ter
ine dust inisibe od spores and haru icroorganiss are
absorbed onto the ter b static eectricit and urther growth is inhibited
and deactiated b the popheno etracted ro appes.
Easy maintenance

ashabe and reoeabe pane
Removable panel
Flexible piping connection

 direction o drain  piping
Back view
Drain hose
Piping
1
6
2
5
3
4
Apple-catechin
Filter
Ion Deodorization
Filter
    
INDOOR UNITS INDOOR UNITS

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
