6. SYSTEM DESIGN

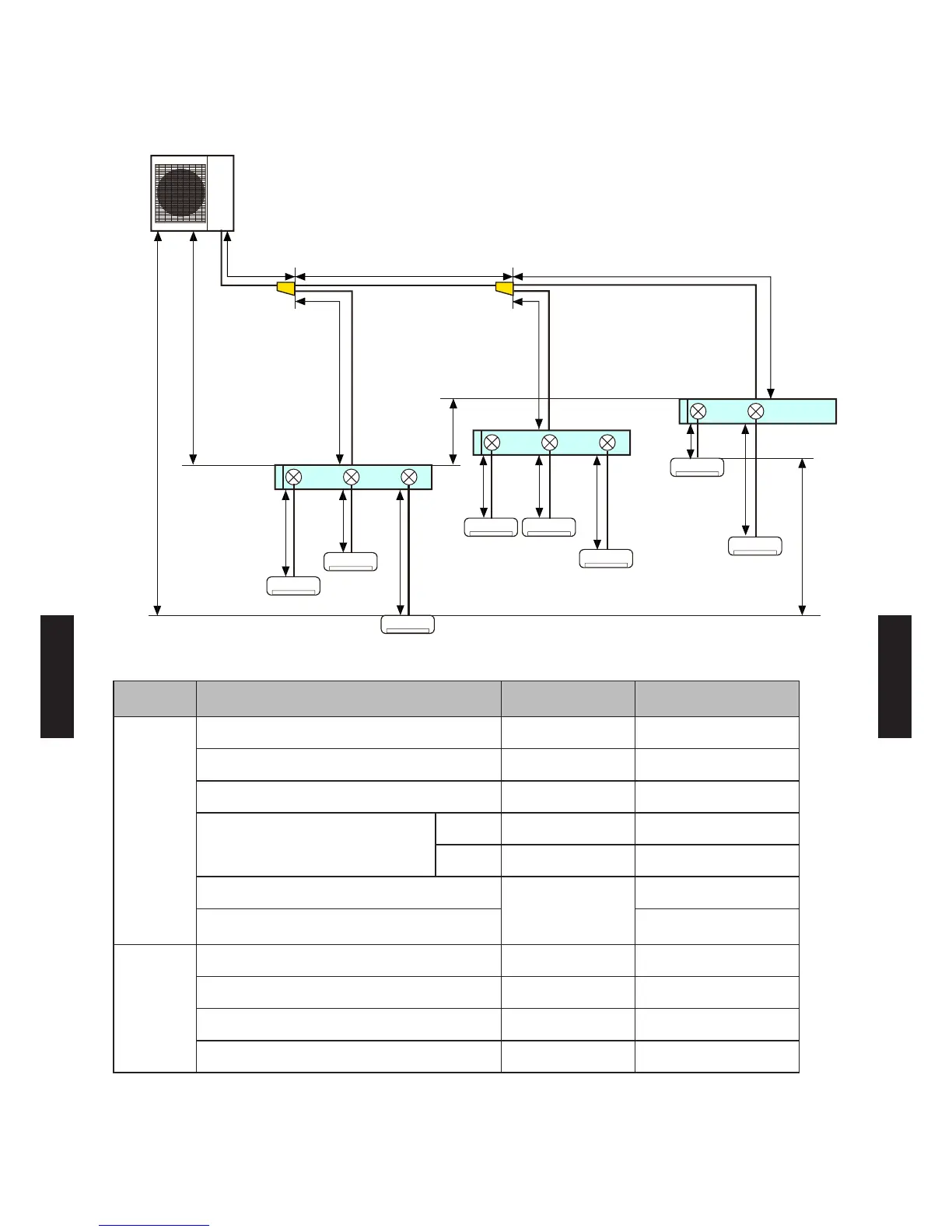

PIPING LIMITATION2-2.
LIMITATION

a b
d
H2
H3
H4
H1
f
g
h
ij
k
l
m
e
c
Limitation
m
Diagram
Allowable pipe length (actual pipe length)
Total pipe length 115 or less Total
Between outdoor unit and the farthest indoor unit 70 or less a + b + c + m
Between outdoor unit and branch boxes 55 or less a + b + c + d + e
Between branch box and indoor unit
Tot al 60 or less f + g + h + i + j + k + l + m
Each unit Between 3 to 15 f, g, h, i, j, k, l, m
etween outdoor unit and the rst separation tube
5 or more
a
Between outdoor unit and branch box
(When there is no separation tube)
a + d
Allowable height difference
Between outdoor unit and indoor unit 30 or less H1
Between outdoor unit and branch box 30 or less H2
Between branch box and branch box 15 or less H3
Between indoor unit and indoor unit 15 or less H4
- (06 - 13) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
