6. SYSTEM DESIGN
BRANCH BOX3-3.
INSTALLATION THE UNIT

WARNING
Perform installation in a location which can properly withstand the weight of the unit. Failure to 
install in a robust location or a faulty installment may cause the equipment to fall, a water leakage,
electric shock or fire.
During installation, secure the hanger bolt so it does not come off.
CAUTION
Be sure to provide adequate maintenance space when installing the unit above the ceiling.

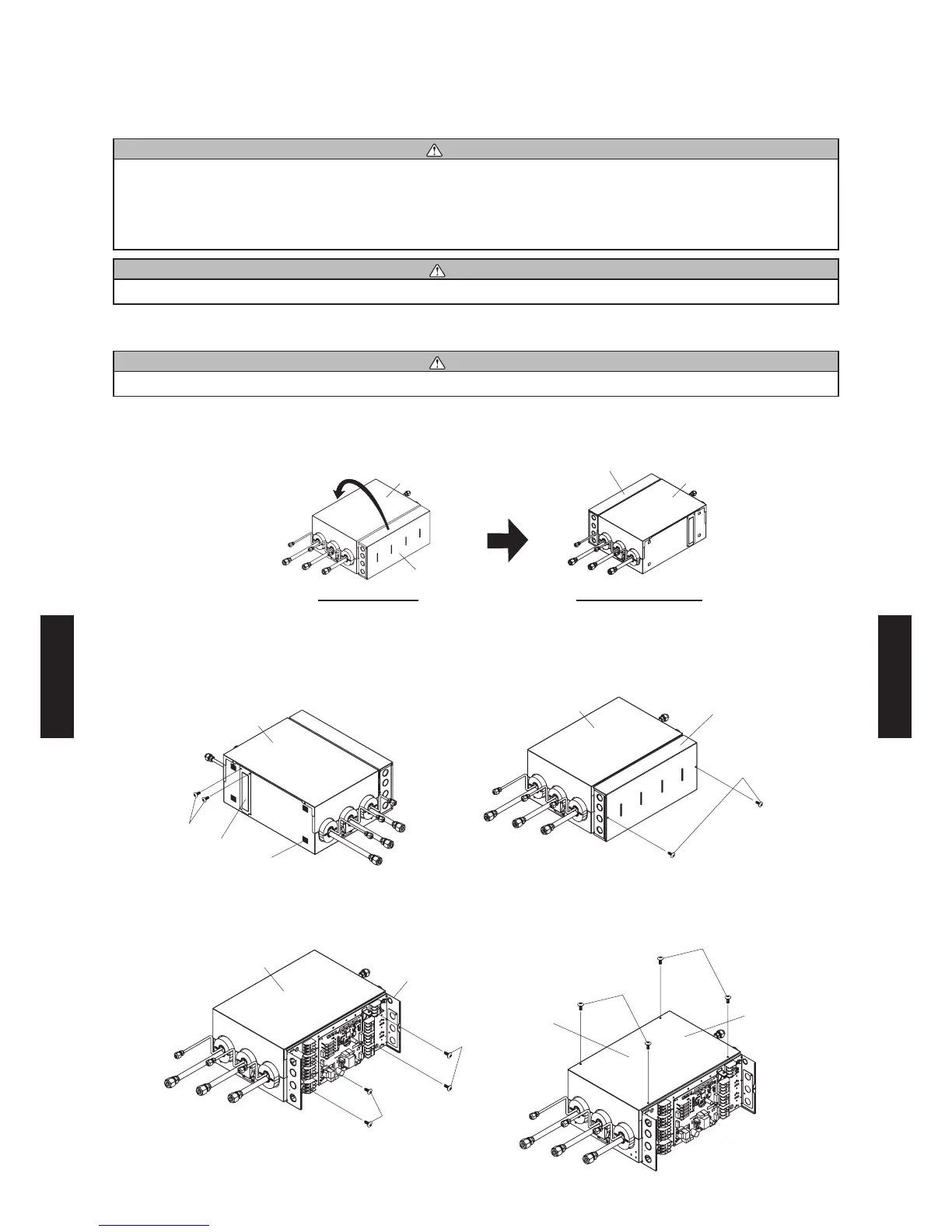

Changing the positioning of the control box

CAUTION
Change the positioning of the control box on-site before performing the installation.
The positioning of the control box can be changed.
(Only when installed horizontally. When vertically installed, the positioning cannot be changed.)
To the opposite side
At time of shipment Positioning after change
Bottom side
Bottom side
Control box
Control box
Bottom side
Bottom side
Control box cover
Screw
Screw
Wiring cover
Tape (4 places)
(1) Remove the screws (2 pieces) to remove the
wiring cover.
Remove the tapes (4 places) on the main unit.
(2) Remove the screws (2 pieces) to remove the
control box cover.
Bottom side
Bottom
panel
Bottom side
Screw
Screw
Screw
Screw
Control box
(3) Remove the screws (4 pieces).
(Note: Do not remove the control box.)
(4) Remove the screws (4 pieces) to remove the
bottom panel.
- (06 - 32) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
