6. SYSTEM DESIGN

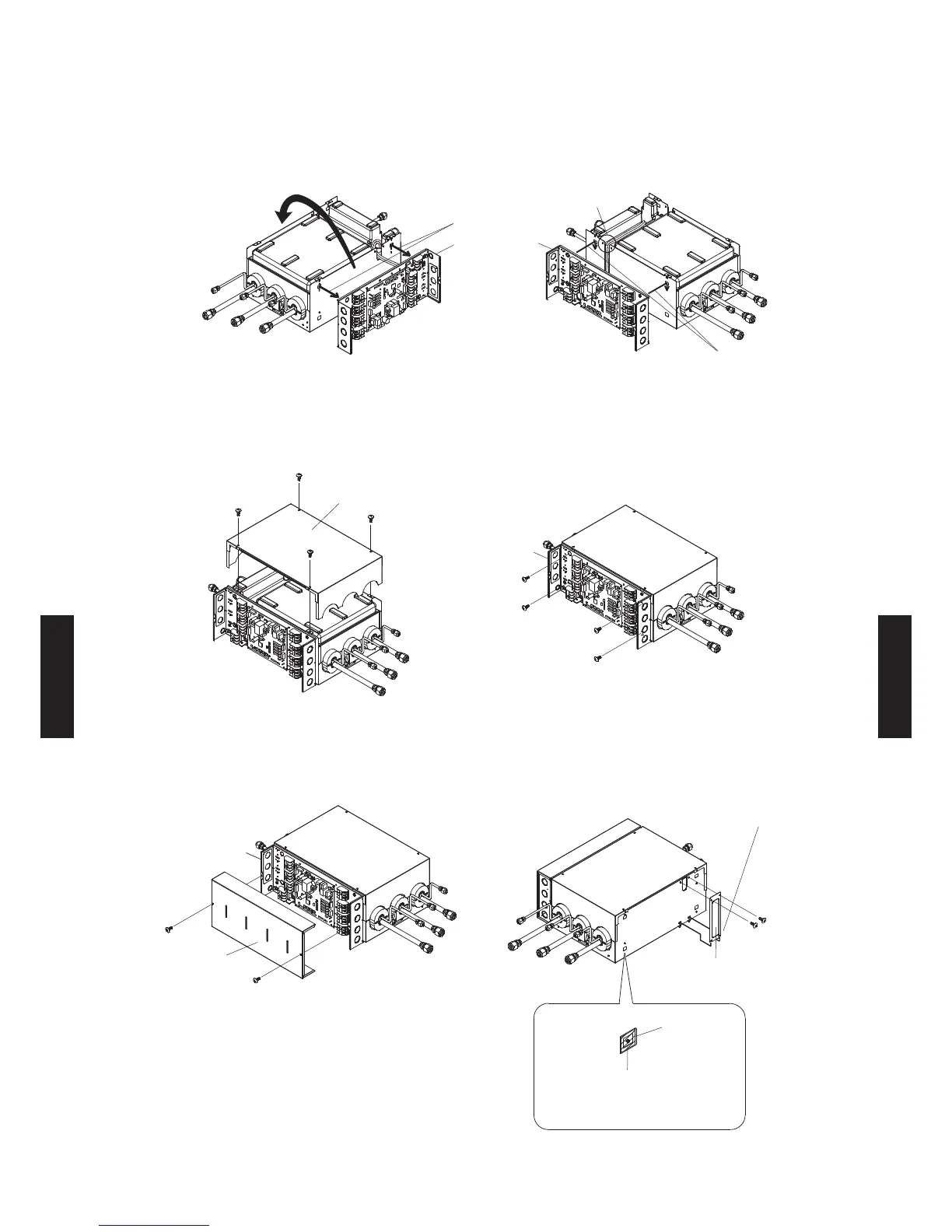

To the opposite side
Control box
Remove the control
box by lifting up and
out through slots
nsert and  the contro
box using the slots
The lead wire
runs here
 eoe the contro bo as shown in the gure
and then change the positioning to the opposite
side.
(6) Attach the control box to the main unit as
shown in the gure.
Control box
Bottom panel
(7) Attach the bottom panel and secure it with the
screws (4 pieces).
(8) Secure the control box with the screws
(4 pieces).
Control box
Control box cover
Seal
(Accessory)
 the sea so each hoe
(4 places) is covered
Wiring cover
Secure the wiring
cover by inserting into
the slots
(9) Attach the control box cover and secure it with
the screws (2 places).
(10) Attach the wiring cover and secure it with the
screws (2 places).
 the seas on the ain unit  paces.
- (06 - 33) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
