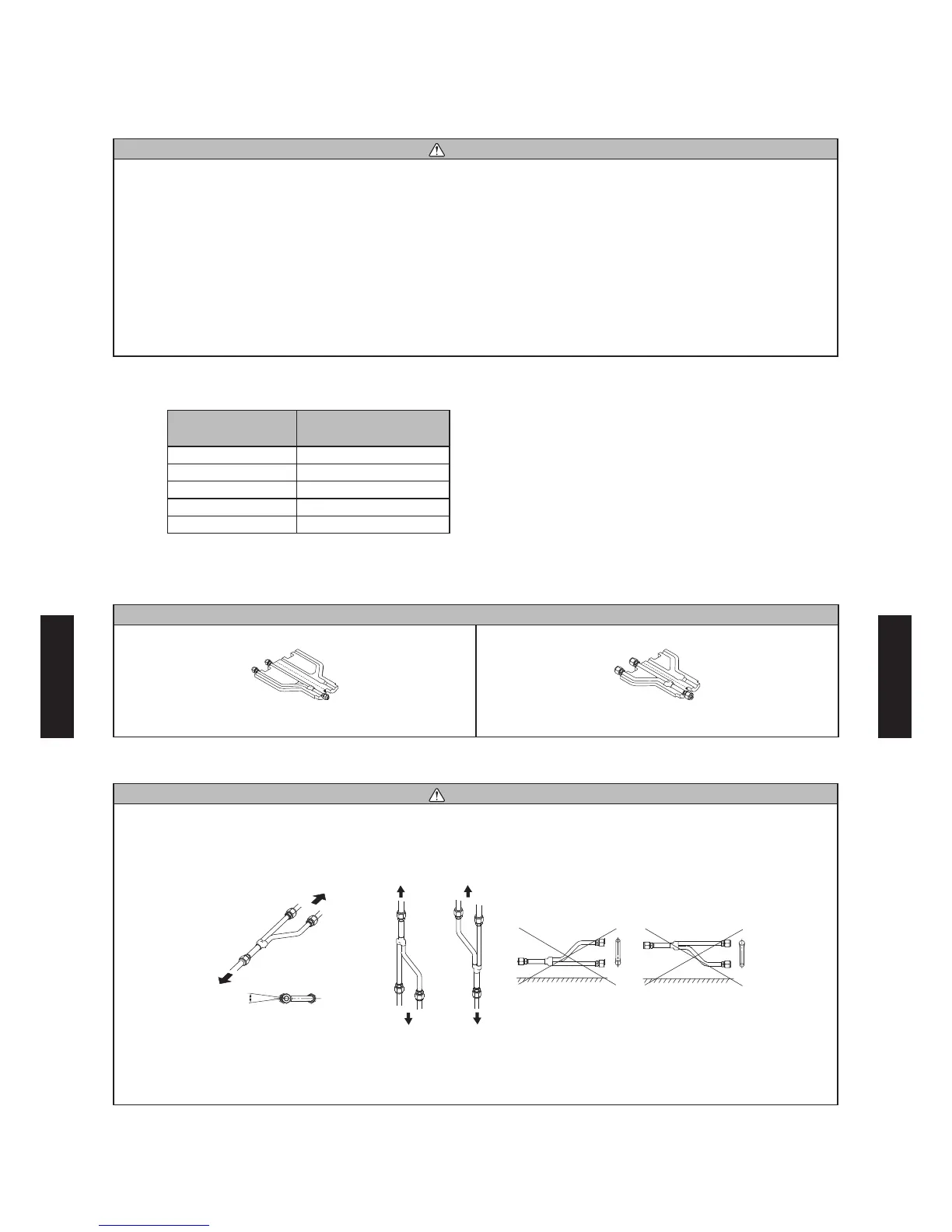

6. SYSTEM DESIGN
SEPARATION TUBE3-2.
PIPE CONNECTION

CAUTION
Be sure to apply the pipe against the port on the indoor unit correctly. If the centering is improper, 
the flare nut cannot be tighten smoothly. If the flare nut is forced to turn, the threads will be
damaged.
Do not remove the flare nut from the indoor unit pipe until immediately before connecting the

connection pipe.
Hold the torque wrench at its grip, keeping it in the right angle with the pipe, in order to tighten the 
flare nut correctly.
Tighten the flare nuts with a torque wrench using the specified tightening method. Otherwise, 
the flare nuts could break after a prolonged period, causing refrigerant to leak and generate a
hazardous gas if the refrigerant comes into contact with a flame.
hen the are nut is tightened proper b our hand hod the bod side couping with a separate
spanner then tighten with a torue wrench. ee the tabe beow or the are nut tightening torues.
Flare nut
[mm (in.)]
Tightening torque
[N·m]
6.35 (1/4) 16 to 18
9.52 (3/8) 32 to 42
12.70 (1/2) 49 to 61
15.88 (5/8) 63 to 75
19.05 (3/4) 90 to 110
Type of separation tube

Name and shape
Liquid pipe Gas pipe
Positioning of separation tube

CAUTION
If it is placed horizontally, keep it within ± 15°. Otherwise, it will not separate the refrigerant evenly, 
causing a reduction in performance.
Place the separation tube in a horizontal position as much as possible. Only place the separation 
tube as shown below during unavoidable circumstances.
A
B
A
B
A
B
±15°
Horizontal
OK
A: Outdoor unit or Separation tube
B: Branch box or Separation tube
OK OK
Not good Not good
Horizontal
line
Vertical
or
- (06 - 30) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
