6. SYSTEM DESIGN

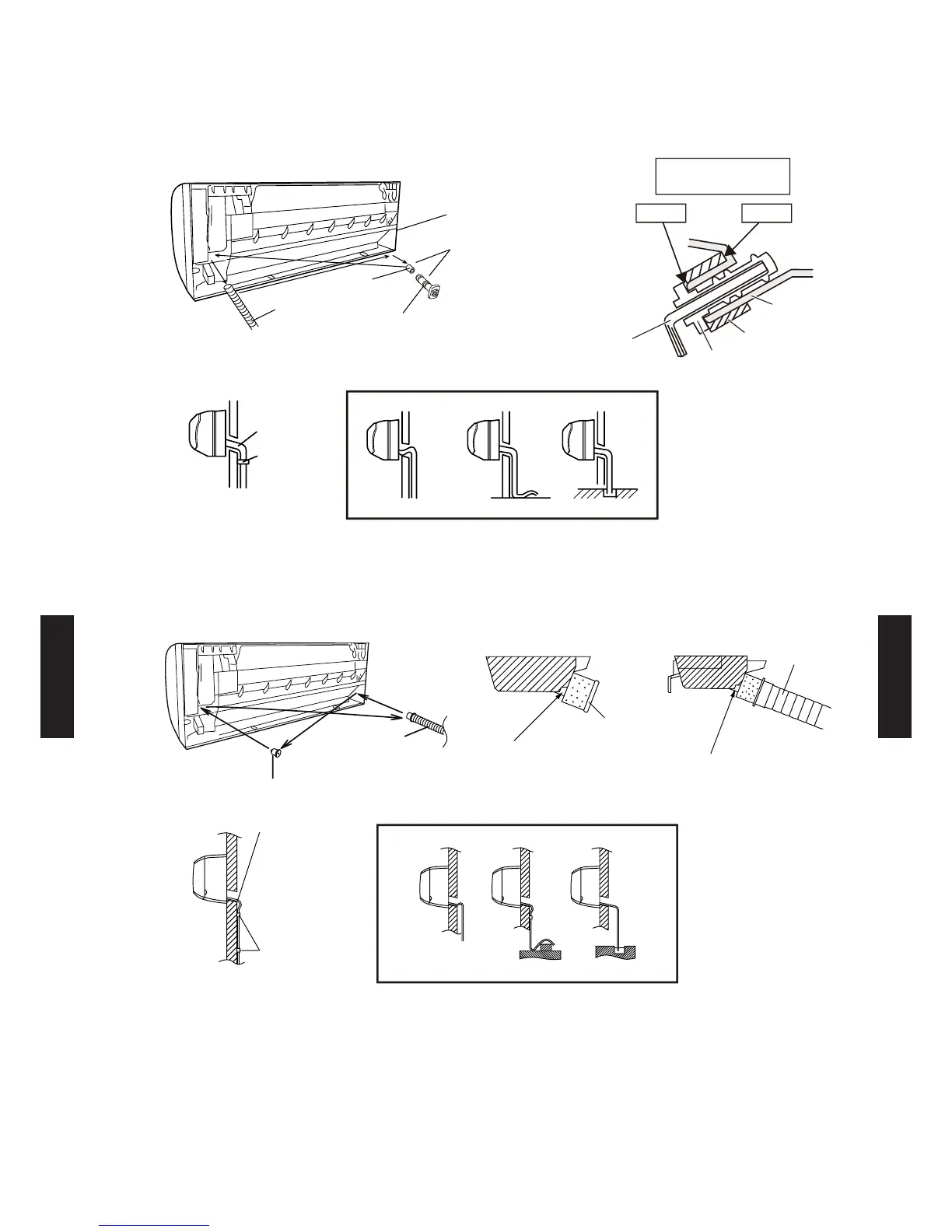

WALL MOUNTED TYPE (LJ, LU, LM)

Remove the drain cap by
pulling at the projection at the
end of the cap with pliers, etc.
And remove the insulation.



prohibited
OK
Drain cap
Drain hose
Saddle
No gap
No gap
Drain cap
Drain Cock
End in waterWave
Liftted up
Insulation
Insulation
Indoor unit
drain hose
Hexagonal
wrench
Installation method
of Drain cap
For left outlet piping, cut
off the piping outlet cutting
groove with a hacksaw.
WALL MOUNTED TYPE (LF)




prohibited
OK
Drain cap
Drain cap
Drain hose
Right side
Left side
Drain hose
Drain hose
Saddle
End in waterWaveLiftted up
Insert the drain cap until it
butts against the drain port.
Insert the drain hose until it
butts against the drain port..
- (06 - 123) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
