6. SYSTEM DESIGN
FUNCTION SETTING5.
OUTDOOR UNIT5-1.
SWITCH POSITION

LED981
POWER
/ MODE
LED982
ERROR
LED961 LED962
MODE /
EXIT
SW931
SELECT
SW932
ENTER
SW933
CHECK
SW934

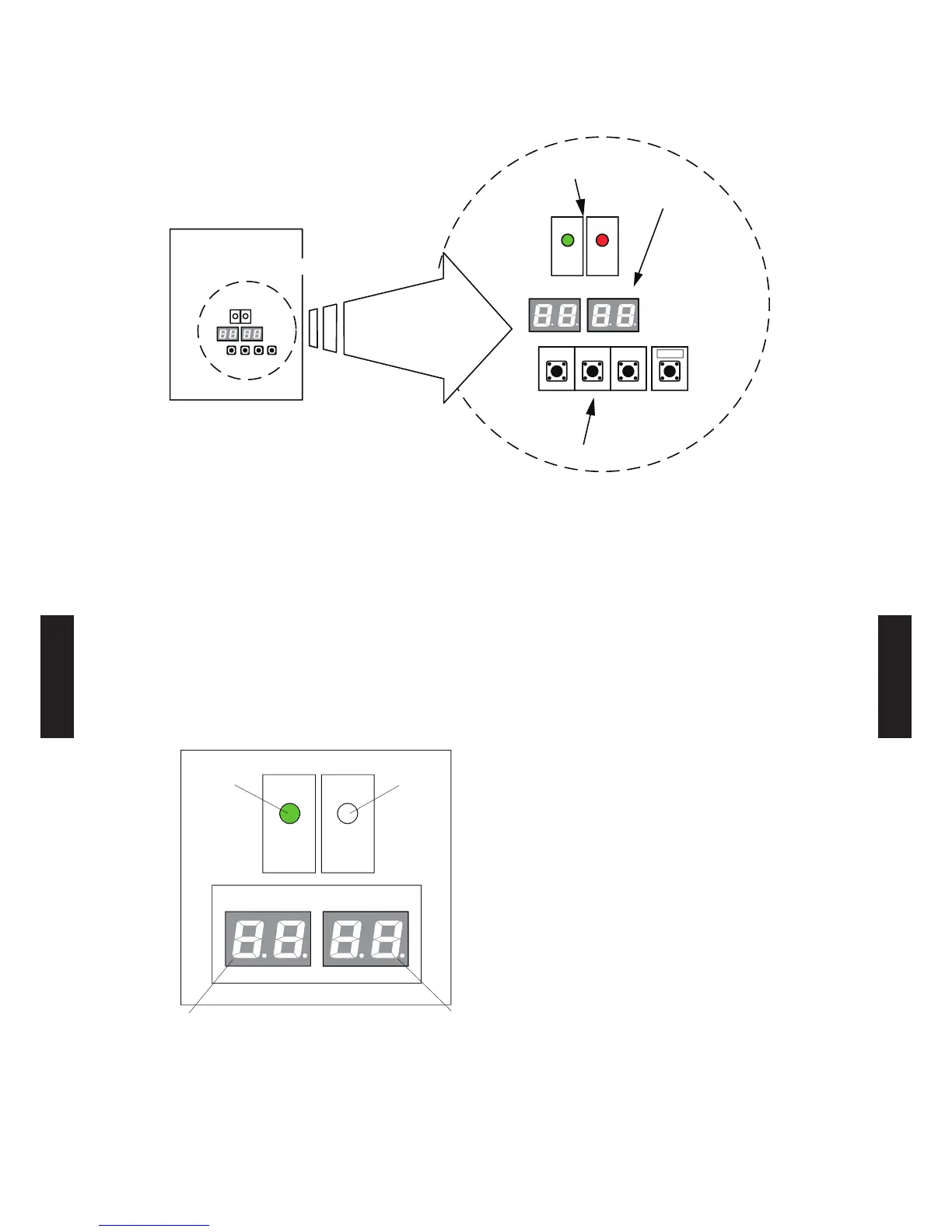

Outdoor unit printed circuit board
LED lamp
7 Segment
LED Lamp
Push button
Set the functions of the outdoor unit with the push buttons (SW931, SW932 and SW933) while 
observing the 7-segment LED lamps (LED961 and LED962) on the printed circuit board.
PREPARATION

Be sure to check that the operation of the outdoor unit has stopped (be sure to stop the 1)
operation if it is still running), and turn off the power.
Remove the front panel of the outdoor unit, and remove the lid of the electrical component box 2)
in order to expose the printed circuit board.
Turn on the power of the outdoor unit.3)
As shown in the figure below, make sure that the POWER/MODE indicator lamp (LED981) is on 
and the ERROR indicator lamp (LED982) is off.
LED981
POWER
/ MODE
LED982
ERROR
LED961 LED962
When the system is normal
(Off)
(On)
(Off)
(Off)
 the  indicator ap  ashes it indicates that an error has occurred. hec 
wiring and power supply. After making sure that the ERROR indicator lamp (LED982) has turned
off, proceed to the next step.
- (06 - 52) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
