6. SYSTEM DESIGN
FUNCTION SETTING


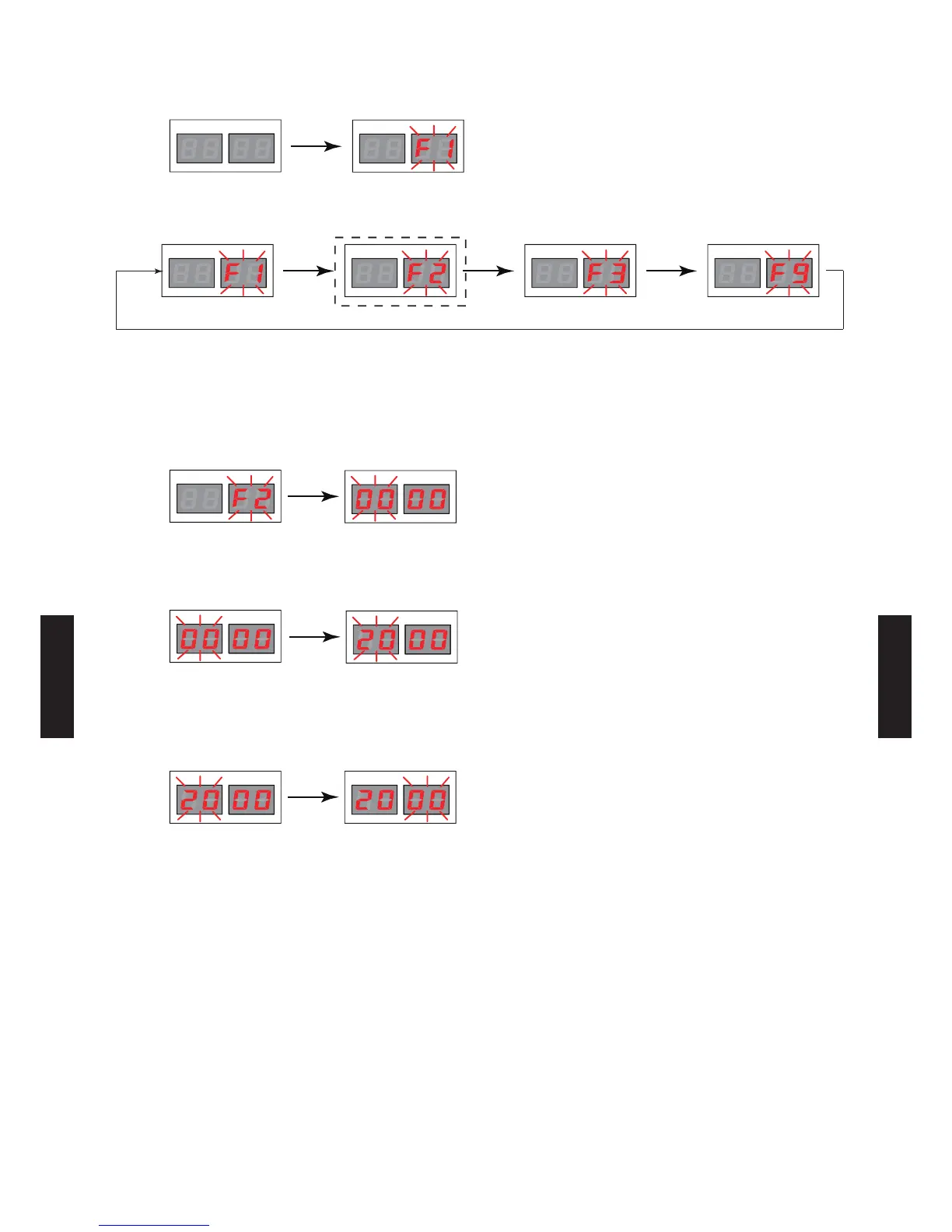

After verifying that the system is normal, press the MODE/EXIT button (SW931) once.1)
LED961 LED962
LED961 LED962
Press the SELECT button (SW932), and display “F2” on the LED962.2)
LED961 LED962LED961 LED962 LED961 LED962 LED961 LED962
*1 *1
(Monitoring mode) (Setting mode) (Function mode) (Error history mode)
(The display of the LED962 changes each time when the SELECT button is pressed.)
*1:The “F1”and “F9” modes are used for maintenance, so do not set them in regular operation.
When “F2” appears on the LED962, press the ENTER button (SW933).3)
 ashing dispa appears on the  and the ashing dispa o  on the 
changes to the illuminated display of a number.
LED961 LED962
LED961 LED962
Referring to the Settings List shown below, press the SELECT button (SW932) and display the 4)
code number of the mode you want to set on the LED961.
Ex.) To select switching between Forced Stop and Emergency Stop
LED961 LED962
LED961 LED962
et press the  button  and conr the seection o the ode ou want to
set.
 ashing dispa on the  changes to an iuinated dispa and an iuinated dispa
on the  changes to a ashing dispa.
LED961 LED962 LED961 LED962
- (06 - 53) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
