6. SYSTEM DESIGN

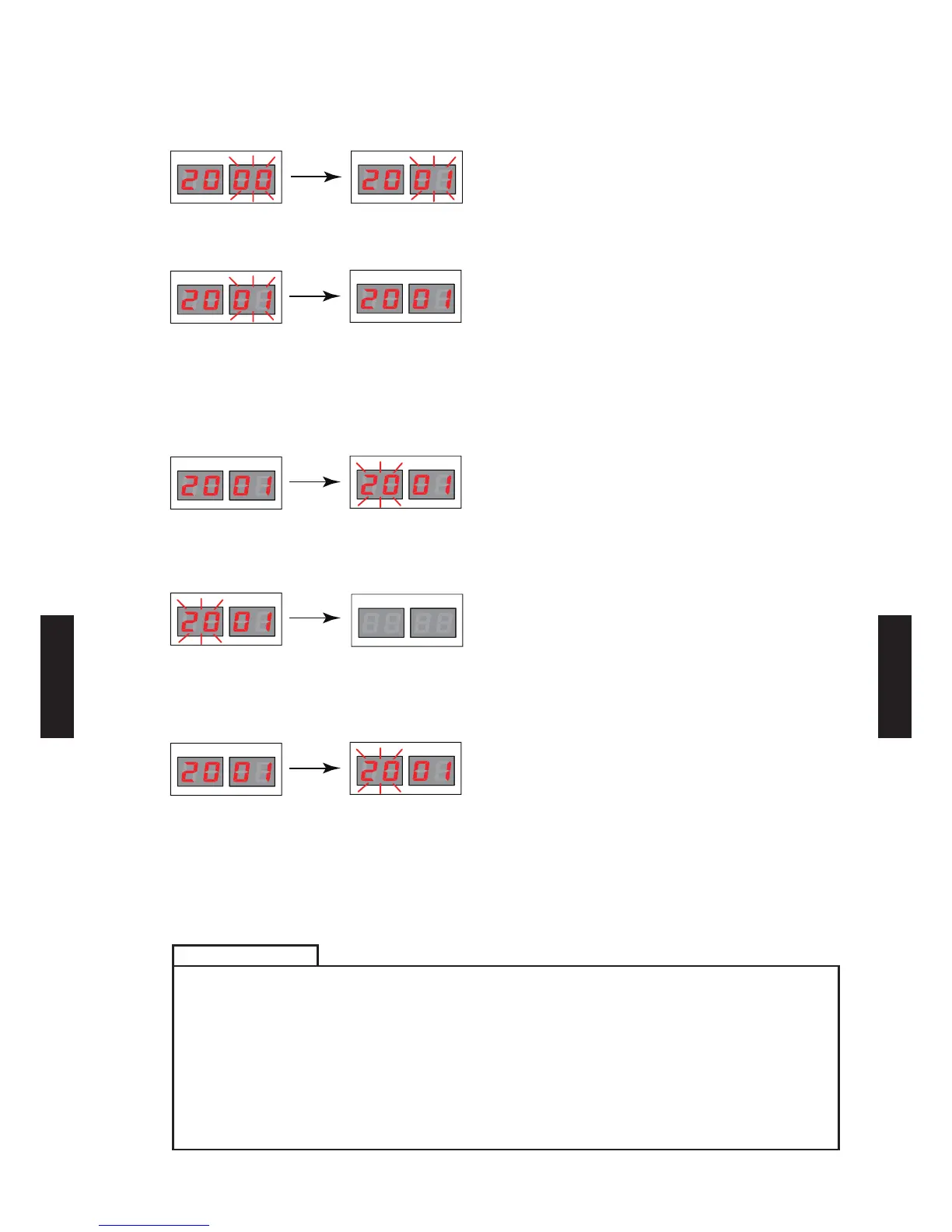

Again, referring to the Settings List shown below, press the SELECT button (SW932), and 5)
display the code number of the function you want to set on the LED962.
Ex.) To select the Emergency Stop function
LED961 LED962 LED961 LED962
et press the  button  and conr the seection o the unction ou want to
set.
LED961 LED962
LED961 LED962
 ashing dispa on the  changes to an iuinated dispa.
This completes FUNCTION SETTING.
To exit FUNCTION SETTING, press the ENTER button (SW933) in the setting completed 6)
status shown in step 5) above.
   seconds ater een i  button is not pressed   changes to a ashing dispa
automatically.
LED961 LED962
LED961 LED962
*2
Then, press the MODE/EXIT button (SW931) to exit FUNCTION SETTING MODE.
LED961 LED962
LED961 LED962
To set another function, press the ENTER button (SW933) in the setting completed status 7)
shown in step 5) above.
LED961 LED962
LED961 LED962
Repeat steps 4) and 5) above to set other functions.
When all settings are complete, perform the operation described in step 6) above to exit.
RESET THE POWER AFTER SETTING UP FUNCTION OF

OUTDOOR UNIT
Important
If the reset is not performed, function can not be read in normally.

After all the functions have been set, the circuit breaker needs to be switched off

for at least 2 minutes.
After the 2 minutes has passed, power can be restored.
The set function is stored in the PCB and will remain in memory even when the

power is turned off.
However setting function is effective after power reset.
Record the function set in the outdoor unit on a label, etc., and afx the label to the
unit so it can be used for after-sales service operations.
- (06 - 54) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
