6. SYSTEM DESIGN

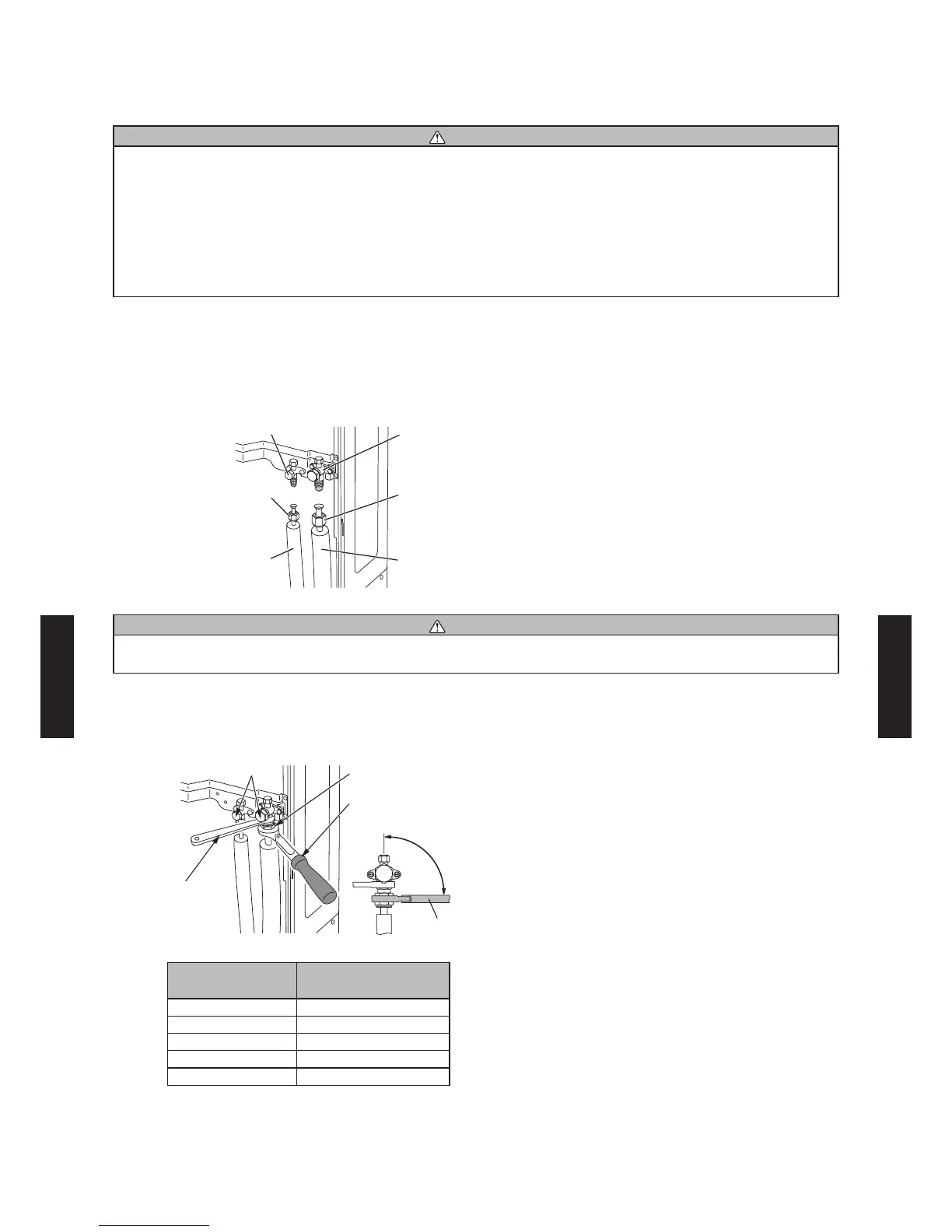

PIPE CONNECTION

CAUTION
Be sure to install the pipe against the port on the indoor unit and the outdoor unit correctly. If the 
centering is improper, the flare nut cannot be tightened smoothly. If the flare nut is forced to turn,
the threads will be damaged.
Do not remove the flare nut from the outdoor unit pipe until immediately before connecting the 
connection pipe.
After installing the piping, make sure that the connection pipes do not touch the compressor or 
outer panel. If the pipes touch the compressor or outer panel, they will vibrate and produce noise.
(1) Detach the caps and plugs from the pipes.
 enter the pipe against the port on the outdoor unit and then turn the are nut b hand.
 ighten the are nut o the connection pipe at the outdoor unit ae connector.
 ter tightening the are nut b hand use a torue wrench to u tighten it.
3-way valve
(Liquid)
Connection pipe
(Liquid)
Connection pipe
(Gas)
3-way valve
(Gas)
Flare nut
Flare nut
CAUTION
Hold the torque wrench at its grip, keeping it in a right angle with the pipe, in order to tighten the 
flare nut correctly.
Outer panel may be distorted if fastened only with a wrench. Be sure to fi x the elementary part
with a spanner and fasten with a wrench (refer to below diagram).
Do not apply force to the blank cap of the valve or hang a wrench, etc., on the cap. It may cause 
leakage of refrigerant.
90°
Holding
wrench
Blank cap
Flare nut
Torque wrench
Torque wrench
Flare nut
[mm (in.)]
Tightening torque
[N·m]
6.35 (1/4) dia. 16 to 18
9.52 (3/8) dia. 32 to 42
12.70 (1/2) dia. 49 to 61
15.88 (5/8) dia. 63 to 75
19.05 (3/4) dia. 90 to 110
- (06 - 28) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
