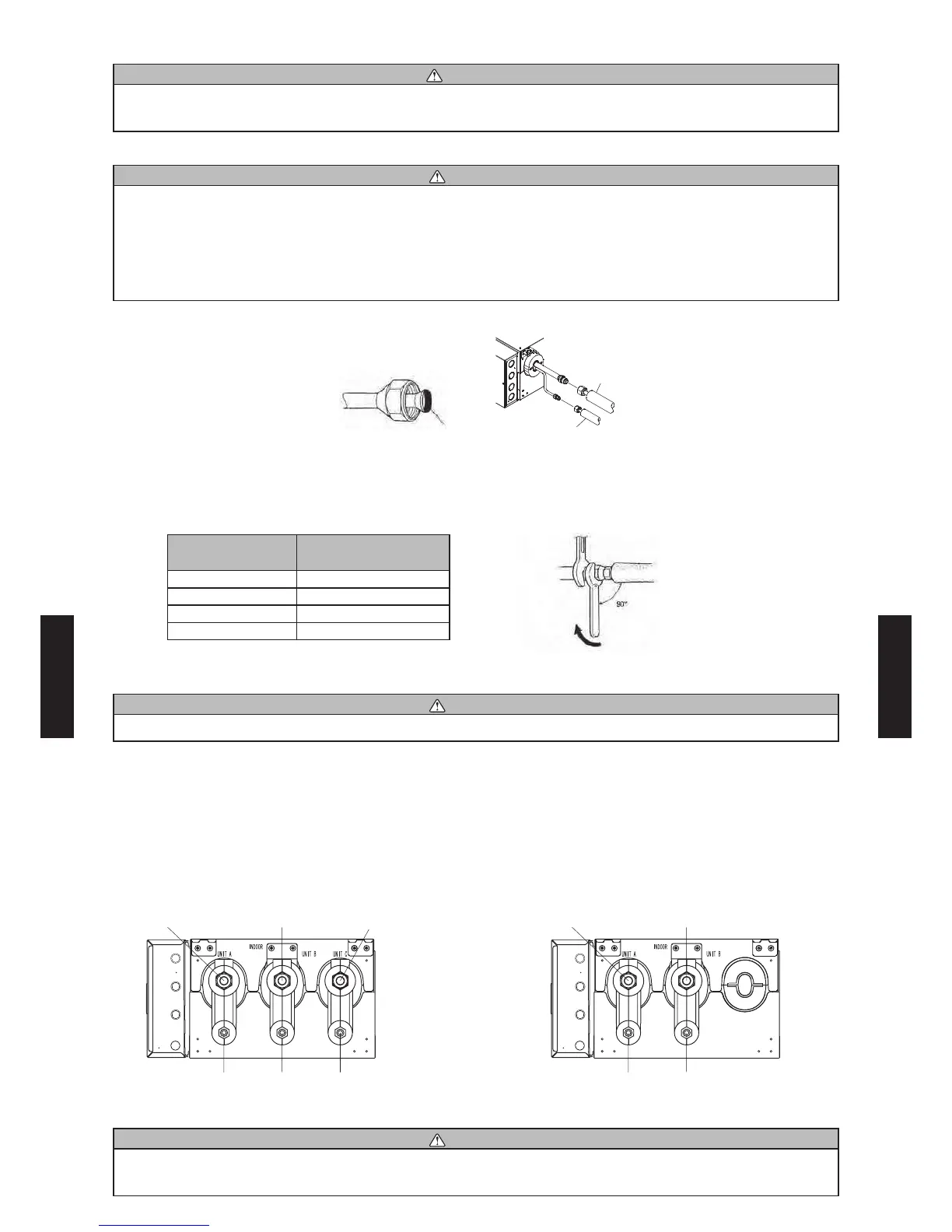

6. SYSTEM DESIGN
PIPE CONNECTION

WARNING
Be sure to perform flare connection. It causes a malfunction and a fire of this unit when connecting 
the pipes other than flare connection (brazing etc.).
(1) Detach the caps and plugs from the pipes.
CAUTION
Be sure to apply the pipe against the port on the unit correctly. If the centering is improper, the flare 
nut cannot be tightened smoothly. If the flare nut is forced to turn, the threads will be damaged.
Do not remove the flare nut from the pipe until immediately before connecting the connection pipe.
Hold the torque wrench at its grip, keeping it in the right angle with the pipe, in order to tighten the 
flare nut correctly.
 entering the pipe against port on the unit turn the are nut with our hand.
Connection
pipe (Gas)
Connection
pipe (Liquid)
To prevent gas leakage, apply the
refrigeration compressor oil (or
equivalent) used for the outdoor unit to
the are surace.
 hen the are nut is tightened proper b our hand use a torue wrench to na tighten it.
Flare nut
[mm (in.)]
Tightening torque
[N·m]
6.35 (1/4) dia. 16 to 18
9.52 (3/8) dia. 32 to 42
12.70 (1/2) dia. 49 to 61
15.88 (5/8) dia. 63 to 75
Do not remove the cap from the connection pipe before connecting the pipe.
CAUTION
Be sure to connect the large pipe after connecting the small pipe completely.
(4) Branch box is marked with engraved letters indicating each corresponding indoor unit (UNIT A,
UNIT B and UNIT C).
UNIT A : Refrigerant pipe connection port for UNIT A
UNIT B : Refrigerant pipe connection port for UNIT B
UNIT C : Refrigerant pipe connection port for UNIT C
UNIT A
(gas pipe)
UNIT A
(liquid pipe)
UNIT B
(liquid pipe)
UNIT B
(gas pipe)
[2 branches type]
UNIT A
(gas pipe)
UNIT A
(liquid pipe)
UNIT B
(liquid pipe)
UNIT C
(liquid pipe)
UNIT B
(gas pipe)
UNIT C
(gas pipe)
[3 branches type]
CAUTION
Label all the refrigerant piping (liquid pipe, gas pipe) specifying to which indoor units they will be 
connected.
Body side
Holding spanner
Torque wrench
- (06 - 36) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
