6. SYSTEM DESIGN

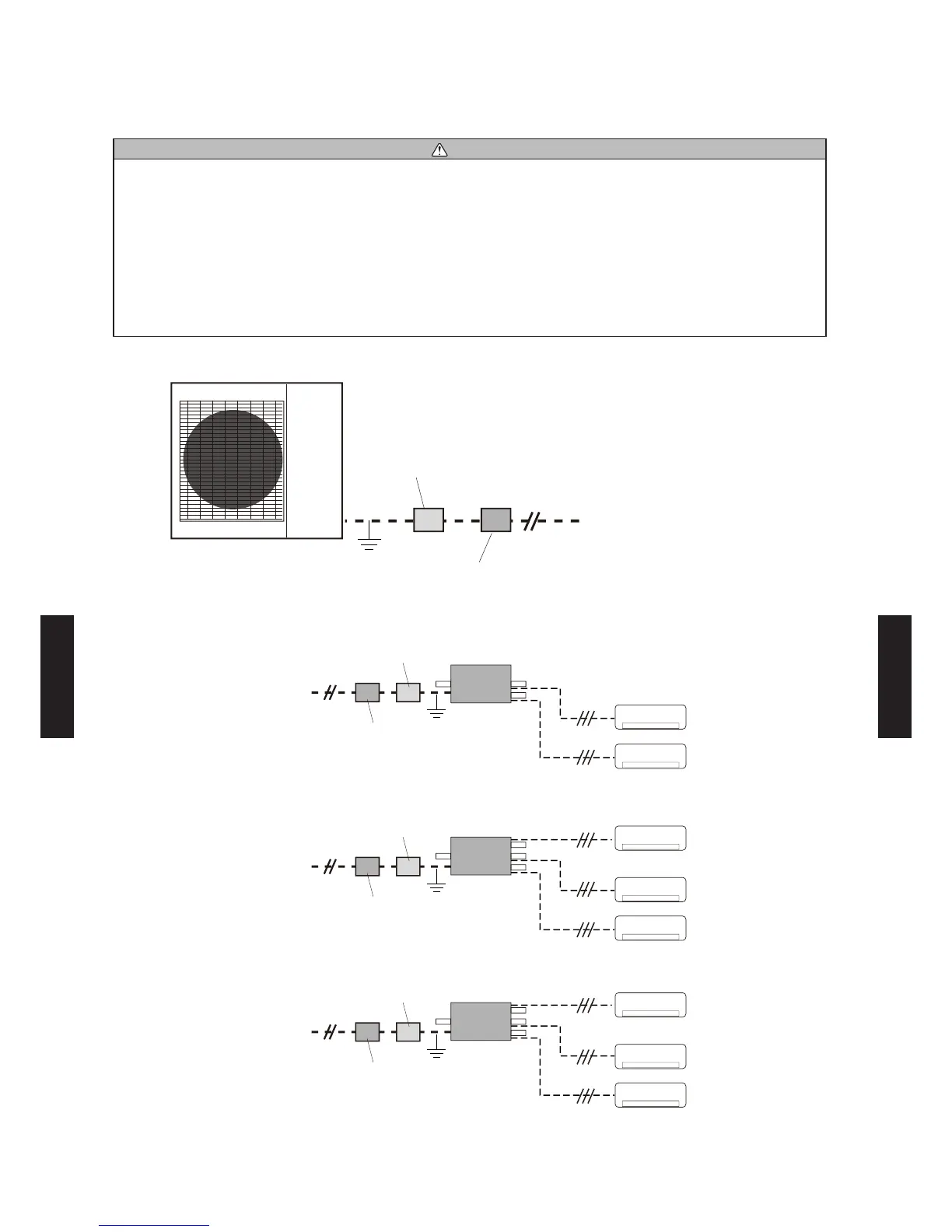

POWER SUPPLY CABLE WIRING

Caution
Except for EMERGENCY, never turn off main as well as sub breaker of the indoor units during 
operation. It will cause compressor failure as well as water leakage.
First, stop the indoor unit by operating the control unit or external input device and then cut the 
breaker.
Make sure to operate through the control unit or external input device.
When the breaker is designed, locate it at a place where the users cannot start and stop in an 
ordinary manner.
Regulation of wire size and circuit breaker differs from each locality, please refer to and be in 
accordance with local rules.
Example 1 (Outdoor unit)

Outdoor unit
Power supply
1ø 230V 50Hz
Earth leakage breaker
Outdoor unit
Circuit breaker (over current)
Example 2 (Branch box & indoor unit)

Earth leakage
breaker
Branch box
Indoor units
Branch box
Branch box
Earth leakage
breaker
Earth leakage
breaker
Circuit breaker
(over current)
Circuit breaker
(over current)
Circuit breaker
(over current)
Branch box - Indoor unit
Power supply
1ø 230V 50Hz
Branch box - Indoor unit
Power supply
1ø 230V 50Hz
Branch box - Indoor unit
Power supply
1ø 230V 50Hz
- (06 - 41) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
