Fujitsu ASHG12LMCA User Manual

6. SYSTEM DESIGN
REMOTE CONTROLLER CUSTOM CODE SETTING

According to the following instructions, please set the custom code setting of the Wireless remote
controller to match any changes in the custom code setting of the indoor unit.
(Note that the air conditioner cannot receive a signal if the right custom codes has not been set.)

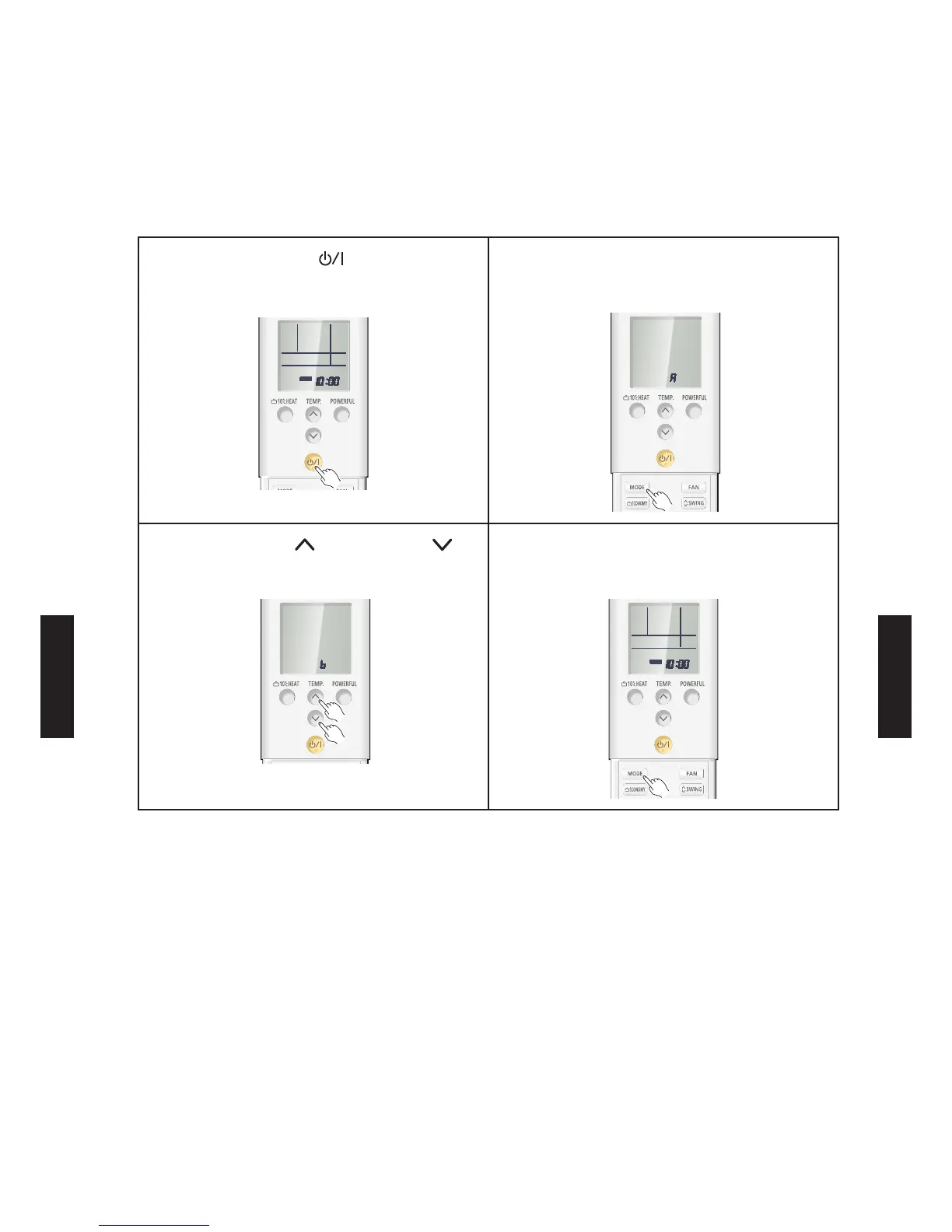

1. Press the Start/Stop “ ” button until only
the clock is displayed on the remote controller
display.
2. Press the "MODE" button for at least 5
seconds to display the current custom code
(initially set to "A")
3. Press the “TEMP.
” or the “TEMP. ”
button to change the custom code between
bcd.
4. Press the "MODE" button again to return to
the clock display. The custom code will be
changed.
If no buttons are pressed within 30 seconds after the  custom code is displayed, the system
returns to the original clock display. In this case, start again from step 1.
The air conditioner
 custom code is set to "A" prior to shipment.
The remote controller resets to  custom code "A" when the batteries in the remote controller are
replaced. If you use a custom code other than custom code "A", reset the custom code after
replacing the batteries. If you do not know the air conditioner custom code setting, try each of
the custom codes bcd unti ou ind the code which operates the air conditioner.
- (06 - 72) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
