6. SYSTEM DESIGN
EXAMPLE5

When connection destination does not match

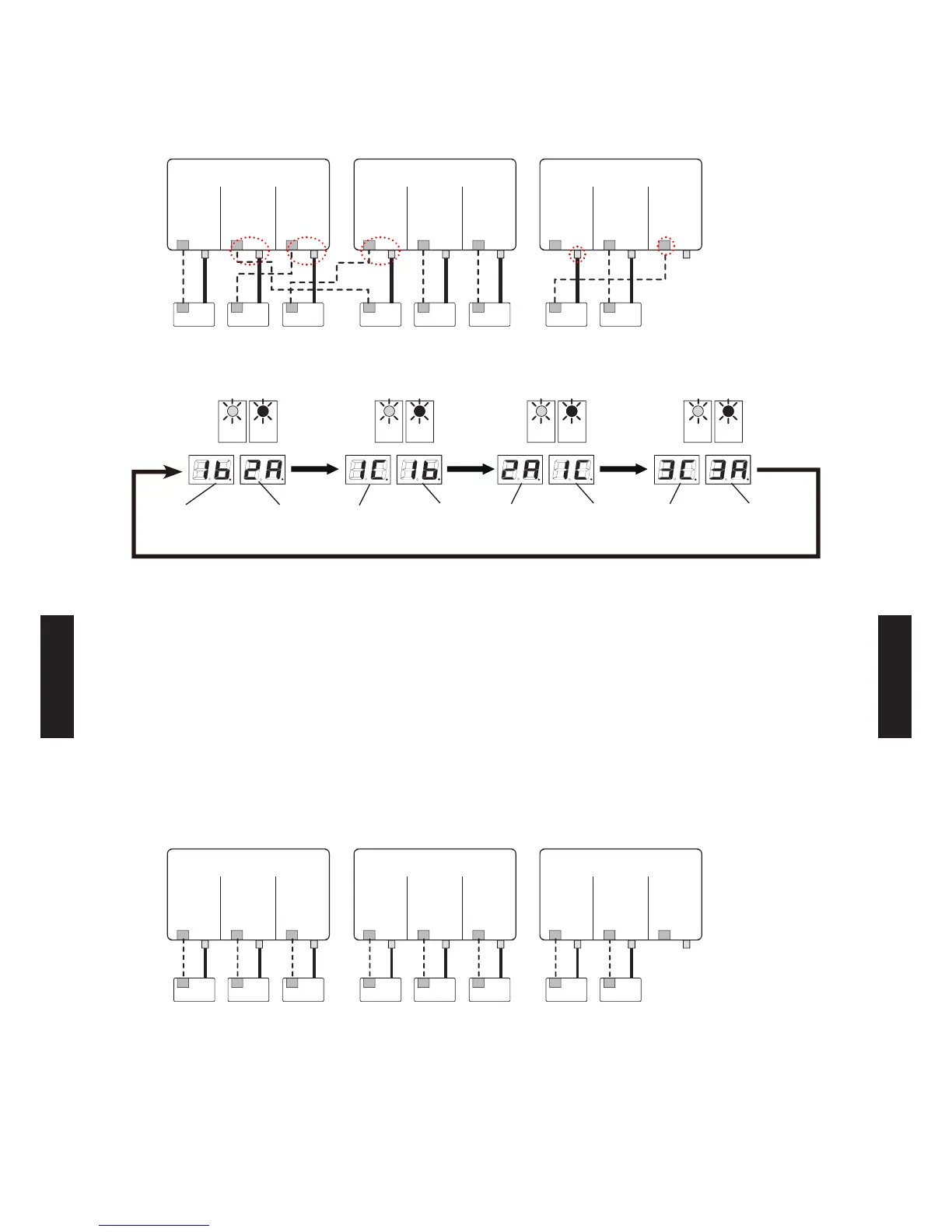

INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C
Indoor
unit 1
Indoor
unit 2
Indoor
unit 3
Indoor
unit 4
Indoor
unit 5
Indoor
unit 6
Indoor
unit 7
Indoor
unit 8
Branch box 1 (Primary) Branch box 2 (Secondary) Branch box 3 (Secondary)
[Display (Check run ends)]
LED961 LED962
LED981
POWER
MODE
LED982
ERROR
LED961 LED962
LED981
POWER
MODE
LED982
ERROR
LED961 LED962
LED981
POWER
MODE
LED982
ERROR
LED961 LED962
LED981
POWER
MODE
LED982
ERROR
Switching every 2 seconds
Switching
every 2
seconds
Switching
every 2
seconds
Switching
every 2
seconds
Branch box 1
Indoor unit B
Branch box 1
Indoor unit C
Branch box 2
Indoor unit A
Branch box 3
Indoor unit C
Branch box 2
Indoor unit A
Branch box 1
Indoor unit B
Branch box 1
Indoor unit C
Branch box 3
Indoor unit A
to to to to
[Coping process]
1) The wire connected to Terminal Indoor unit B of Branch box1(Primary) must be rewired to
Terminal Indoor unit A of Branch box 2(Secondary).
2) The wire connected to Terminal Indoor unit C of Branch box1(Primary) must be rewired to
Terminal Indoor unit B of Branch box 1(Primary).
3) The wire connected to Terminal Indoor unit A of Branch box2(Secondary) must be rewired
to Terminal Indoor unit C of Branch box 1(Primary).
4) The wire connected to Terminal Indoor unit C of Branch box3(Secondary) must be rewired
to Terminal Indoor unit A of Branch box 3(Secondary).
[After correcting wiring]
INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C
Indoor
unit 1
Indoor
unit 2
Indoor
unit 3
Indoor
unit 4
Indoor
unit 5
Indoor
unit 6
Indoor
unit 7
Indoor
unit 8
Branch box 1 (Primary) Branch box 2 (Secondary) Branch box 3 (Secondary)
- (06 - 102) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
