6. SYSTEM DESIGN
EXTERNAL INPUT7-1-1.
ON/OFF of the "Low noise mode", "External input priority mode", "Peak cut mode", and "Stop
operation ode unctions can be changed with an eterna ed deice.
LOW NOISE MODE

The following reduces the operating sound of the outdoor unit from the normal sound.
The air conditioner is set to the "Low noise mode" when closing the contact input of a commercial
timer or ON/OFF switch to a connector on the outdoor control PC board.
* Performance may drop depending on the outside air temperature condition, etc.

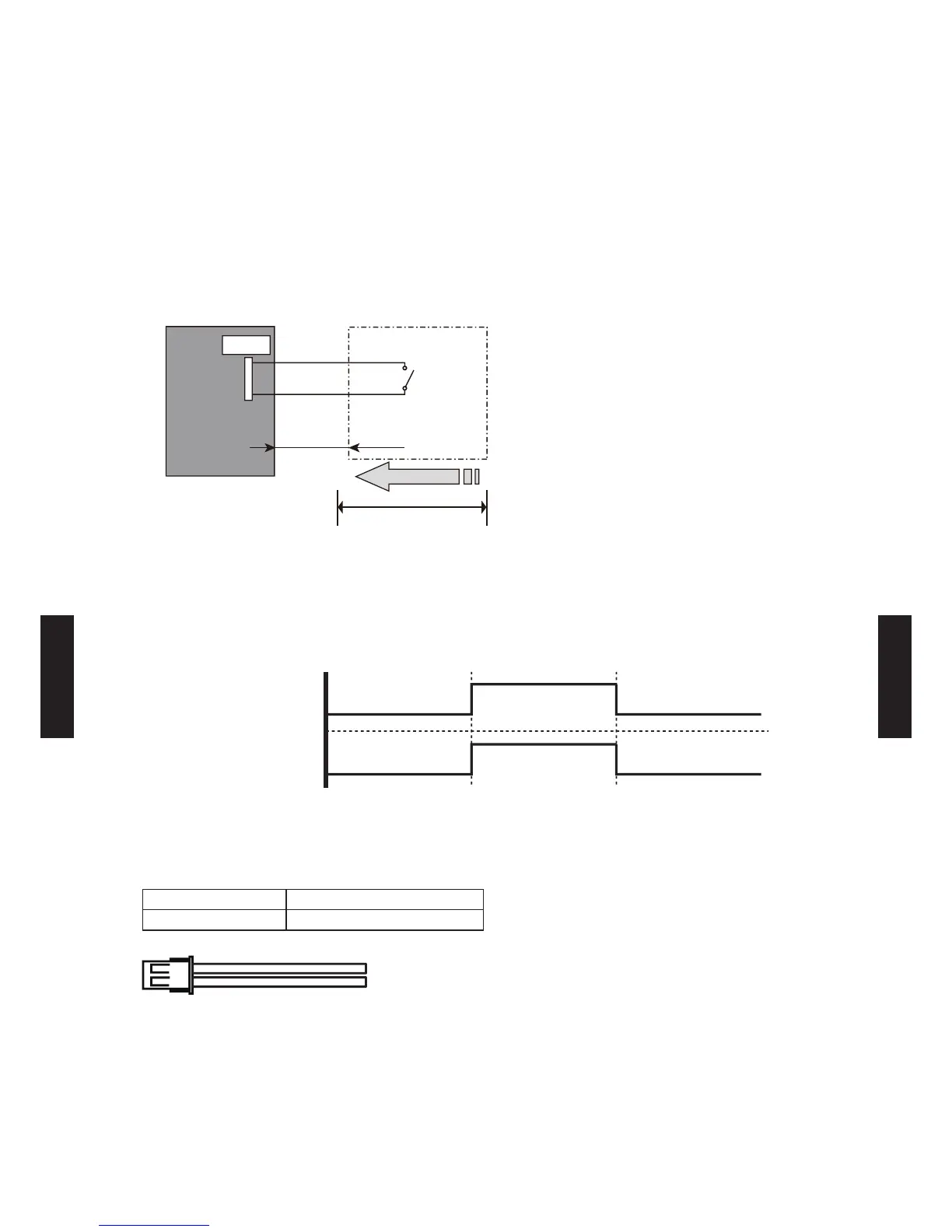

Circuit diagram example

* Make the distance from the PC board to the connected unit within 10 m.
Contact capacity: DC 24 V or more, 10 mA or more.
Use the following parts and construct a circuit as shown above.
nput igna ow noise ode nput igna ora operation
* Set the "Low noise mode" level, refer to "5. FUNCTION SETTING".
ON
OFF
ON
OFF
Input Signal
Low noise mode
Parts (Optional)

Parts name External connect kit
Model name UTY-XWZ X Z3
Outdoor unit
control PC board
Connector
1
2
Signal
Field supply
*10 m
Connected unit
Ex.) Switch
