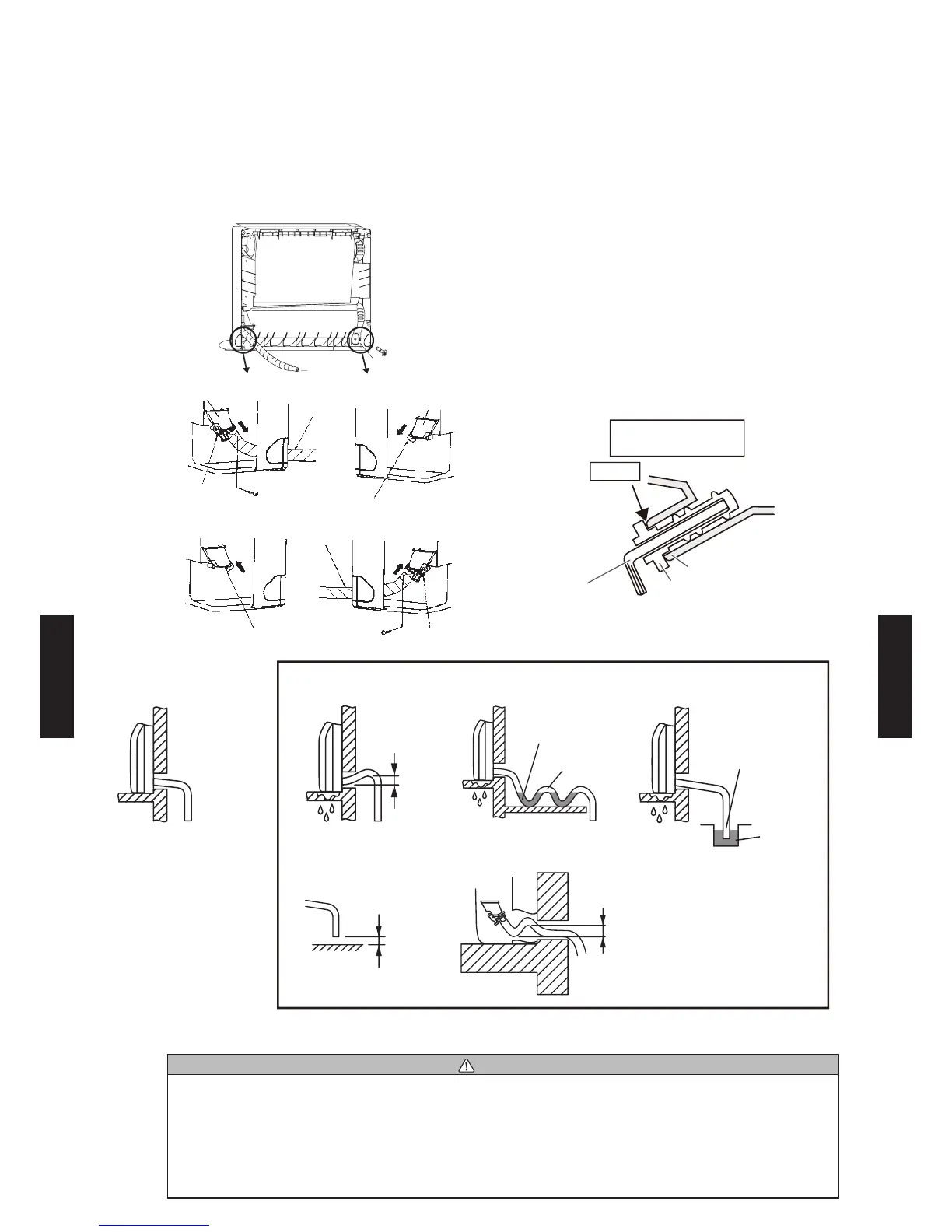

6. SYSTEM DESIGN
FLOOR TYPE

The drain hose can be connected at either side of the indoor unit.
The unit has been shipped with the drain hose connectedat left (viewed from the back of the 
unit) and the drain cap applied at right.
Drain
hose
Drain cap
Drain pan
Drain holder
Screw
Drain hose
Drain pan
Drain cap
Drain cap Drain holder
Screw
Drain hose
OK
Stopping
downward
prohibited
No upward
slope
Air
Accumulated
drain water
End of drain hose
is immersed in
water
Drainage
channel
50 mm or less
from ground
No upward
slope
CAUTION
In order to align the drain hose and drain cap, be sure to insert securely and vertically. 
Incline insertion will cause water leakage.
When inserting, be sure not to attach any material besides water. If any other material is 
attached, it will cause deterioration and water leakage.
After removing drain hose, be sure not to forget mounting drain cap.
Be sure to fix the drain hose with tape to the bottom of piping.
No gap
Drain cap
Drain Cock
Hexagonal
wrench
Installation method
of Drain cap
- (06 - 125) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ASHG12LMCA Specifications

General

Type	Split system
Timer	Yes
Multi-split	-
Product color	White
Dehumidifying capacity	1.8 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	5300 W
Cooling capacity in watts (nominal)	3400 W
Cooling energy efficiency (EER, W/W)	3.5
Heating energy efficiency (COP, W/W)	3.92
Seasonal efficiency rating (cooling) (SEER)	7
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Power consumption (cooling) (max)	970 W
Power consumption (heating) (max)	1020 W
Annual energy consumption (cooling)	170 kWh
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1225 kWh
Indoor unit type	Wall-mountable
Indoor unit depth	203 mm
Indoor unit width	840 mm
Indoor unit height	268 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
Outdoor unit depth	293 mm
Outdoor unit width	663 mm
Outdoor unit height	535 mm
Outdoor unit weight	26000 g
Outdoor unit noise level	50 dB
Airflow	750 m³/h
