Fujitsu D943 - Connecting an Audio Board

Add-on modules Connecting an audio board
56 A26361-D943-Z120-14-7619
Connecting an audio board
If an audio board is installed at the front of your system or you install one at the
front, you must attach the connecting line to the Game/Midi / Audio port on the
system board. The Game/Midi / Audio port is a combined plug.
1
2

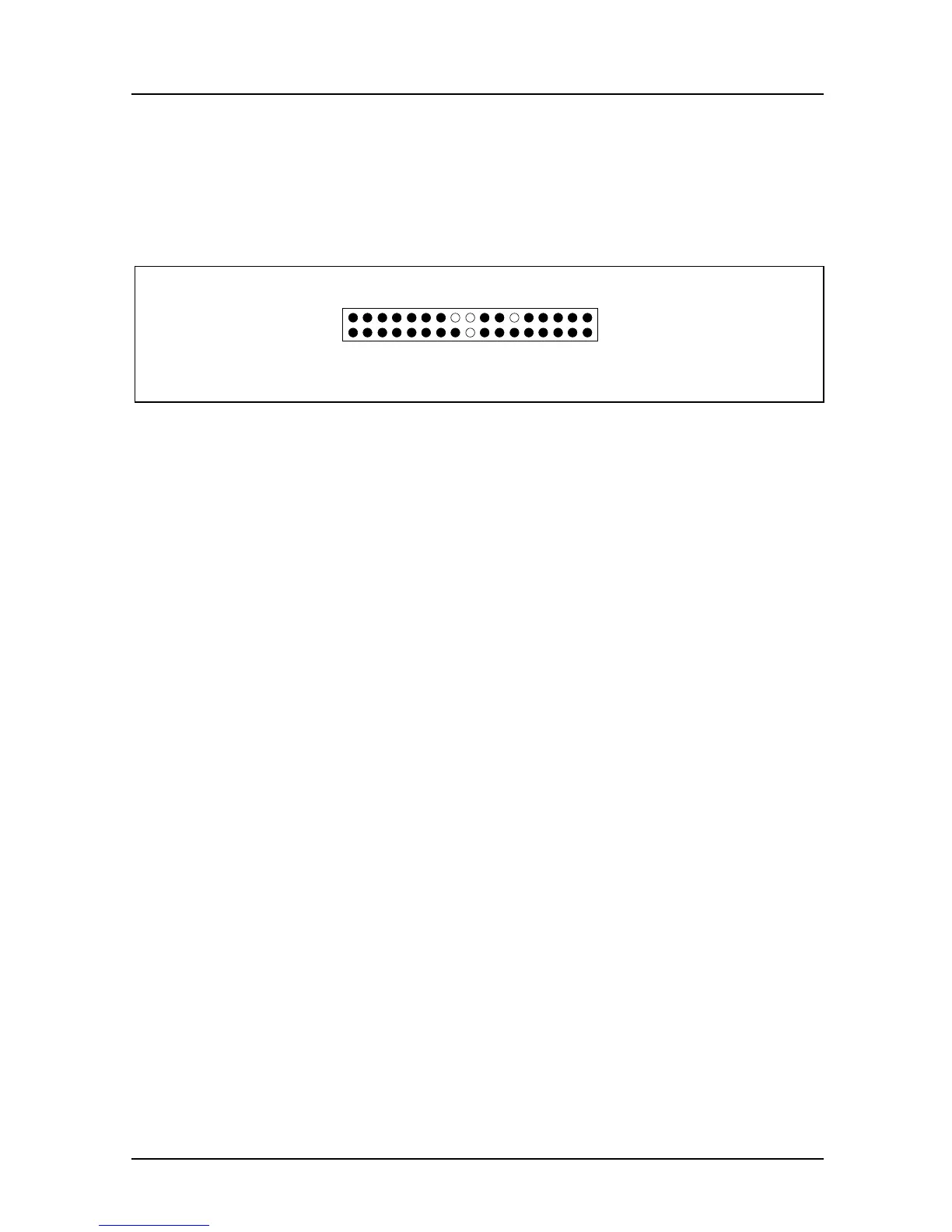

Game-Port Audio
Ê Plug the connecting line onto the side marked with Audio.
If an audio board is installed at the back of your system or you install one at the
back, you must attach the connecting line to the Game/Midi / Audio port on the
system board. The plug on the connecting line is exactly the same width as the
Game/Midi / Audio port.
Ê Plug the connecting line into the Game/Midi / Audio port.
