Note :1. The switch on the back side of CD changer ( A ) must be set to the "L" position.
2. The switch on the back side of CD changer ( B ) must be set to the "H" position.

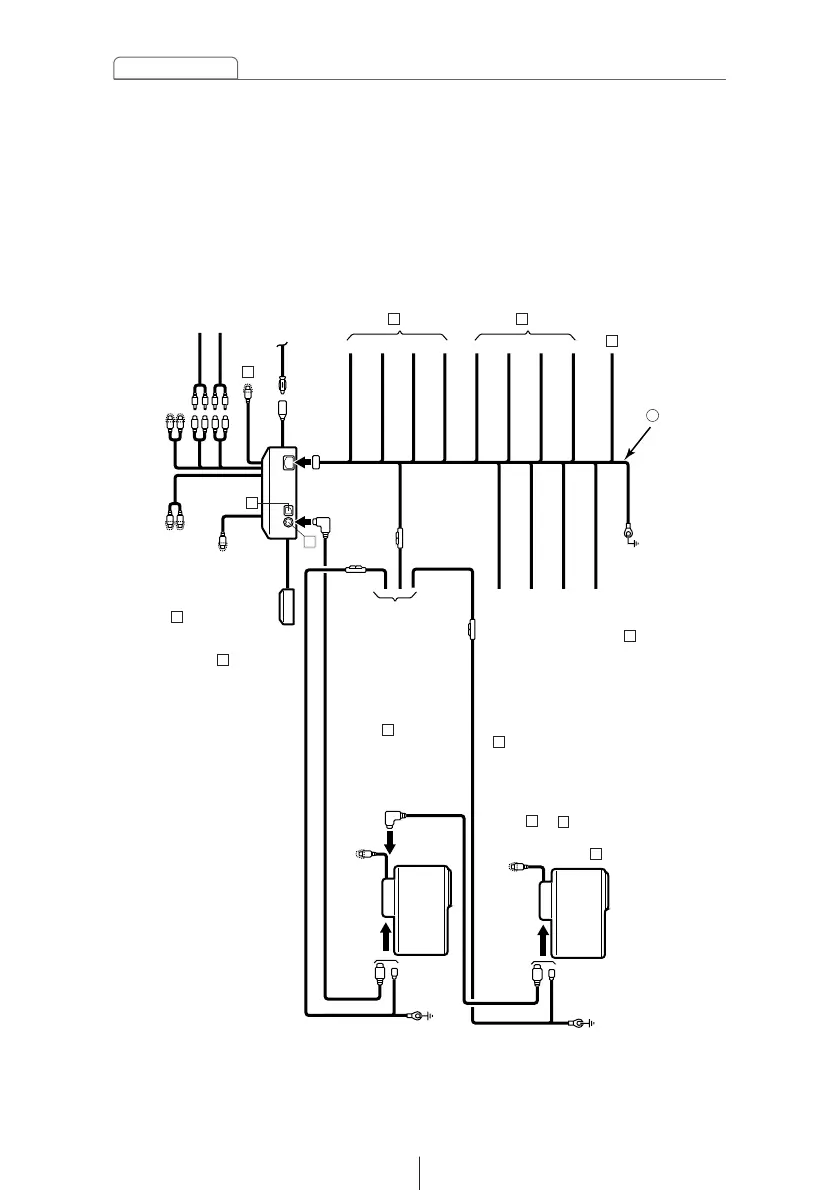

CD8443+ CH3083 + CH3083 + Power Amplifier
3)
NON-FADER
10
CD8443
NO CONNECTION
TO SIGNAL INPUT
OF AUXILIARY
POWER AMPRIFER
15
TO PORTABLE UNIT
(MP3 player, MD player, etc.)
TO BATTERY+12V
(Permanent supply)
2
13P
16P
ANTENNA PLUG
Black
Blue/White
Orange/White
Blue
Red
Yellow
TO POWER ANTENNA RELAY (supply)
TO HEAD LIGHT SWITCH (Illumination)
TO TURN ON LEAD OF EACH UNIT (supply)
TO ACC (Power supply)
1
4
5
6
Pink
Purple/Black
Purple
Green/Black
Green
Gray/Black
White/Black
White
Gray
CELLULAR PHONE
(For mute)
12
INTERCONNECTING CABLE
12
TO GROUND
3
13P
2P
CH3083
(A)
CH3083
13P
2P
(B)
14
7
E-COM OUTPUT
13
INSULATE EACH
WIRE WITH TAPE
11
INSULATE EACH
WIRE WITH TAPE
11
