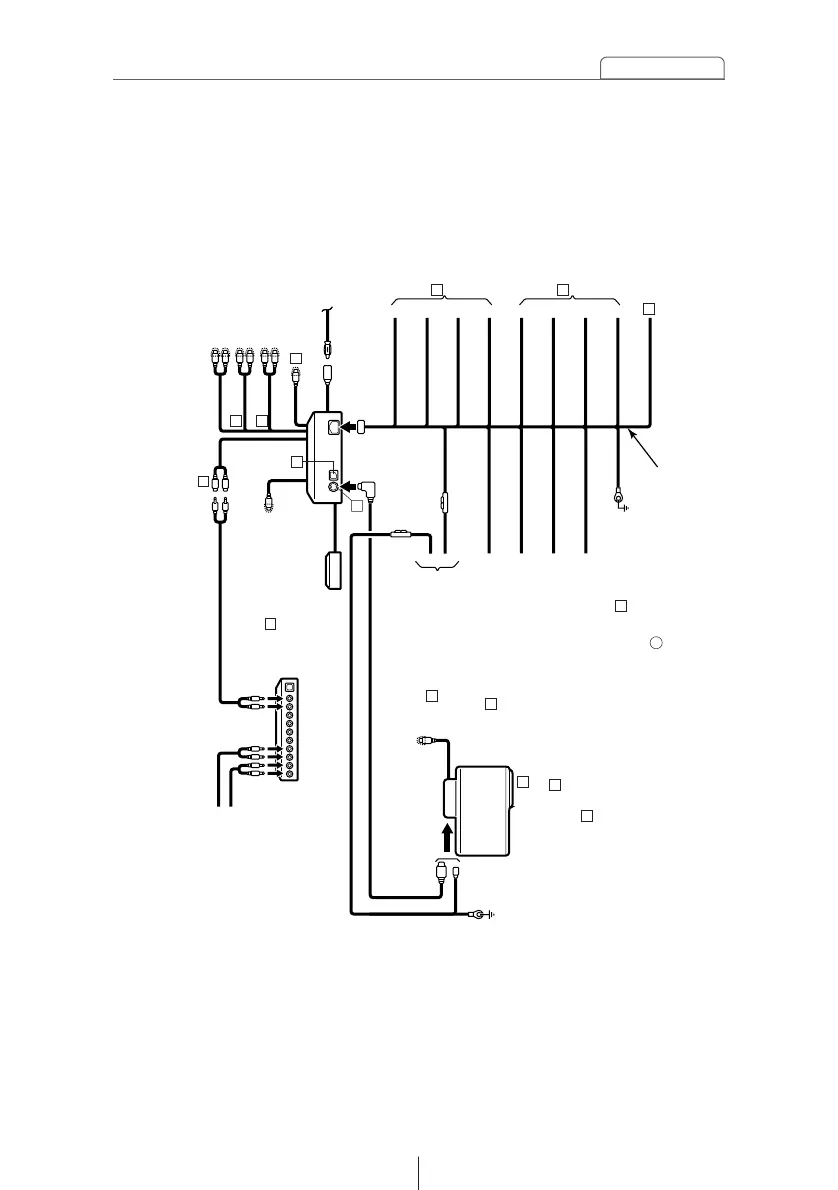

Mounting instruction
CD8443+ CH3083 + 21010 + Power Amplifier
4)
TO BATTERY+12V (Permanent supply)
2
TO POWER ANTENNA RELAY (supply)
TO HEAD LIGHT SWITCH (Illumination)
TO TURN ON LEAD OF EACH UNIT (supply)
TO ACC (Power supply)
1
4
5
6
TO GROUND
3
INTERCONNECTING CABLE
12
Black
Blue/White
Orange/White
Blue Red
Yellow
13P
2P
CH3083
CD8443
NO CONNECTION
TO SIGNAL INPUT OF AUXILIARY POWER AMPRIFER
TO PORTABLE UNIT (MP3 player, MD player, etc.)
15
ANTENNA PLUG
16P
13P
7
E-COM OUTPUT
13
14
Pink
Purple/Black
Purple
Green/Black
Green
Gray/Black
White/Black
White
Gray
INSULATE EACH WIRE WITH TAPE
INSULATE EACH WIRE WITH TAPE
CELLULAR PHONE (For mute)
12
21010
8 9
REAR
FRONT
10
NON-FADER
11
11
