Fujitsu ErgoPro m664 Series User Manual

ErgoPro m664-series PC Specialist's Handbook
Page 1-12 Edition 1 - Release 1 - March 1998
Adding or Removing a DIMM module
1. Open the system unit cover (see pages 1-6).
2. Touch the metal chassis before touching the DIMM module or system board. Keep part of your body
in contact with the metal chassis to dissipate the static charge.
3. Holding the DIMM only by the edges, remove it from its antistatic package.
4. Place the DIMM into the socket and secure it in place with the two plastic clips (A) as shown below.
B
A
Inserting a DIMM
A
Removing a DIMM

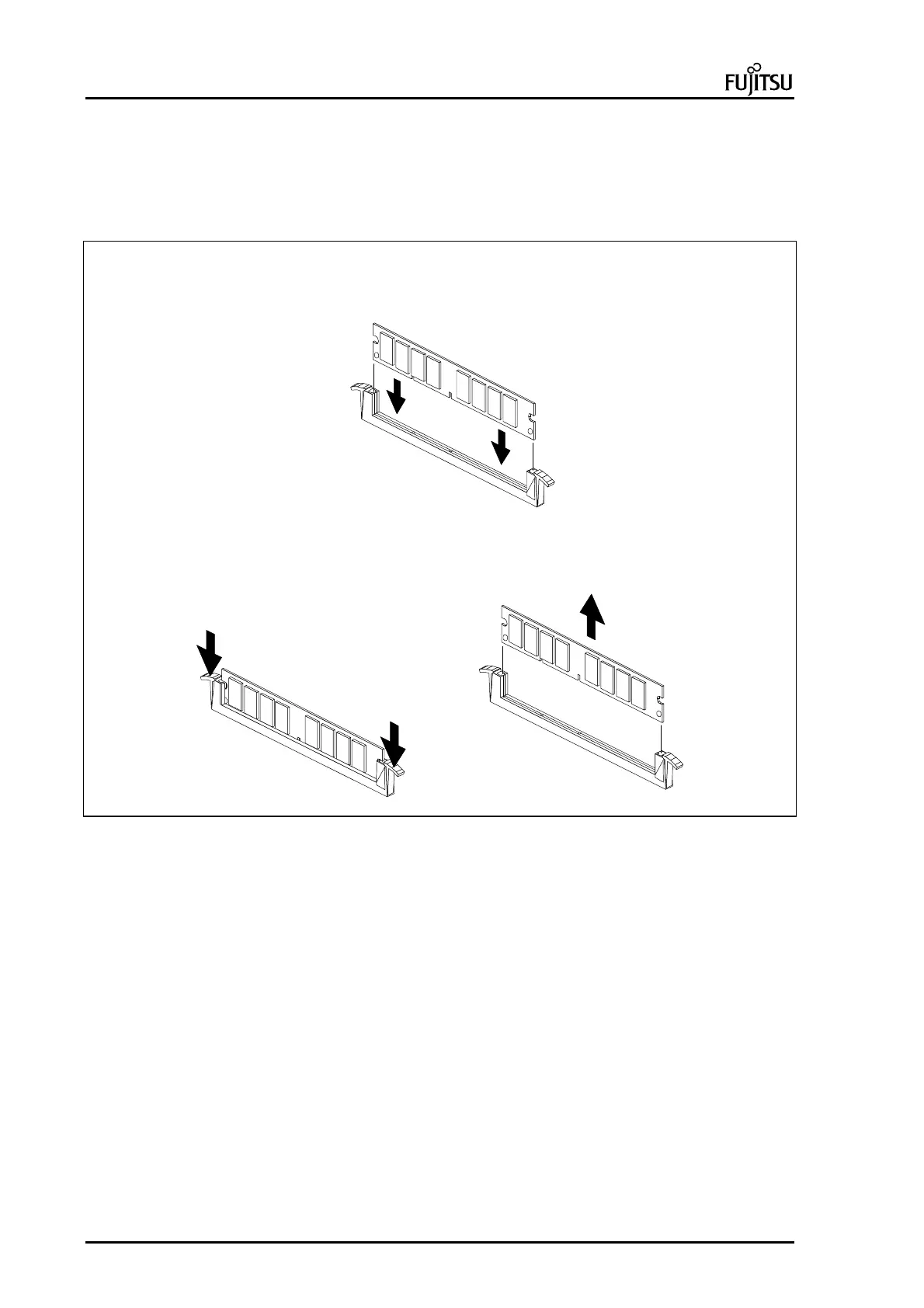

Picture 16 : Inserting and removing a DIMM module
To remove a DIMM module :
6. Gently spread the retaining clip (A) at each end of the DIMM, as shown above.
7. Holding the DIMM only by the edges, lift it away from the socket (B), as shown above.
