PC Specialist's Handbook ErgoPro m664-series
Edition 1 - Release 1 - March 1998 Page 2-3
Flash BIOS
440 LX Chipset
DIMM sockets (0, 1, 2)
Primary IDE
Front panel
Speaker
Secondary IDE
Floppy
connector
Power Supply
connector
connector
connector
connector
CPU Fan
connector (Not used)
Auxiliary LED connector
Wavetable connector
Super I/O controller
Configuration jumper block
SCSI HDD LED connector
Wake On Modem Ring connector
Fan connector
(Not used)

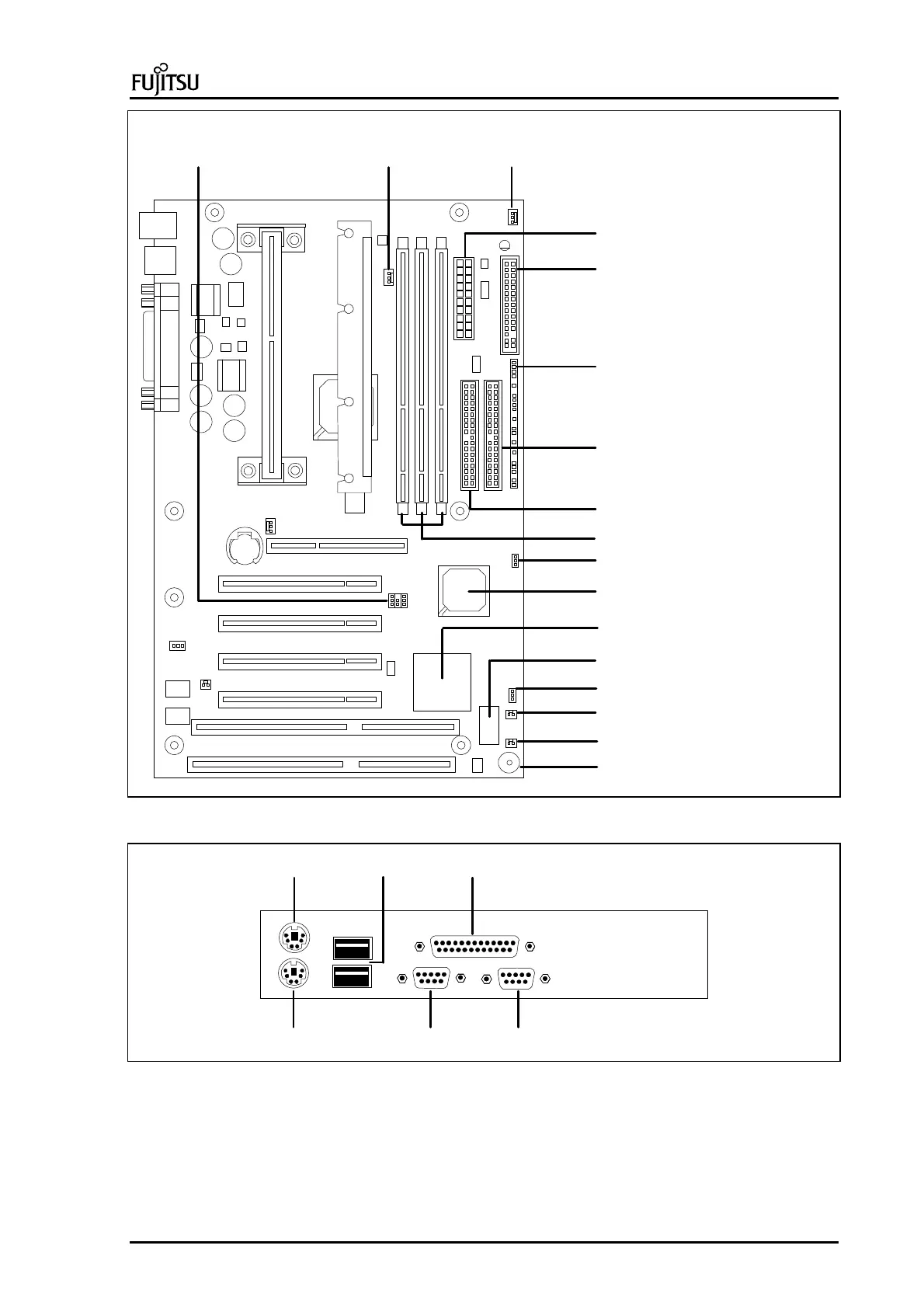

Picture 19: System Board layout (2)
PS/2 Mouse Parallel port
PS/2 Keyboard
Serial port 2
Serial port 1
USB ports
Picture 20 : System Board rear connectors
