− 72/83 −

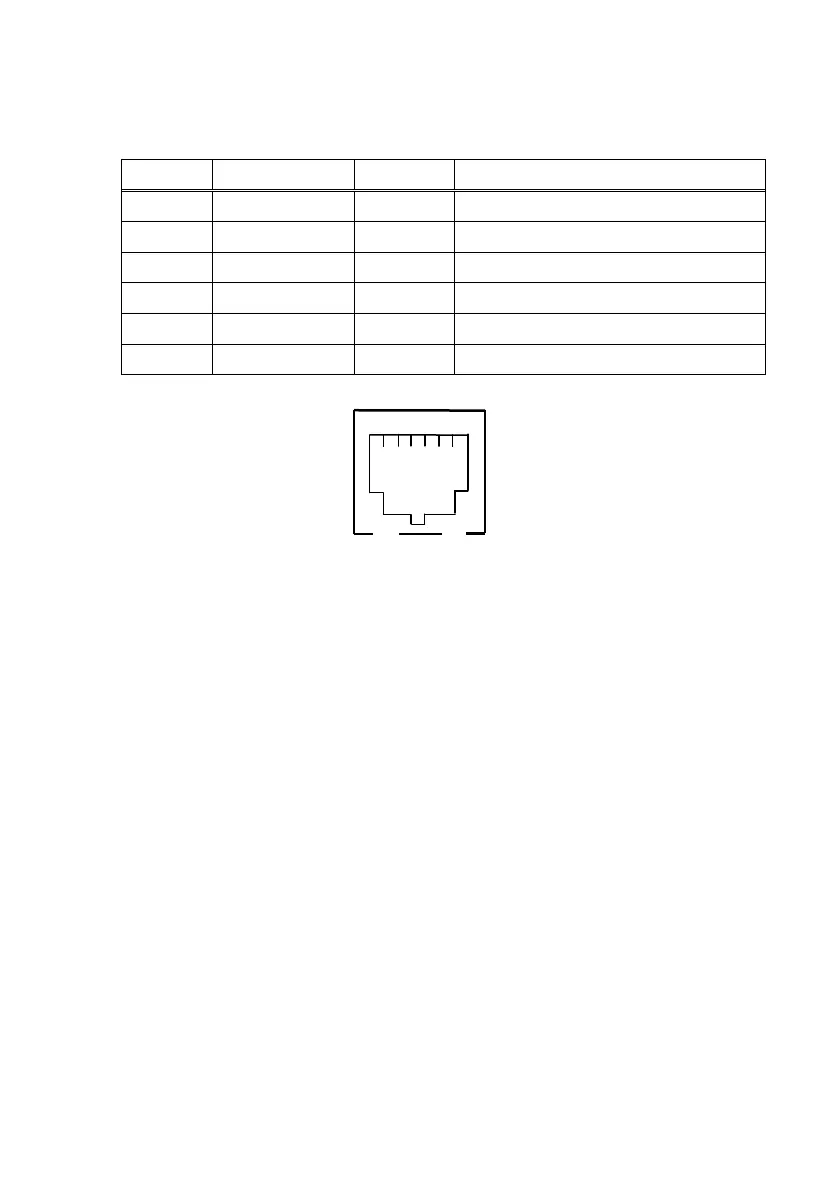

11-4. Drawer Kick Connector
Pin No. Signal Name Direction Signal Line Name
1
FG - Frame Ground
2 *DRD1 Output Drawer Kick Drive Signal 1
3 DRSNS1 Input Drawer Sense Signal 1
4 +24V - Drive Power
5 *DRD2 Output Drawer Kick Drive Signal 2
6 SG -
Signal Ground
1
6
<Connecting side>
