11-5. Power Specifications
(1) Standard Model
Operating Voltage: 24V ±10%
Operating Current: 1.5A
Power Consumption: During standby: 3.0W or less/0.1A (Dual Interface)
4.5W or less/0.1A (LAN Interface)
During operation: 38W or less /1.5A
(at 25°C, print density setting 100%, paper width
80mm, print duty 9%)
(2) Built-in Power Supply Model
Rated Input Voltage: 100-240V, 50-60Hz
Rated Input Current: 1.1A
Power Consumption: During standby: 3.0W or less/0.1A (Dual Interface)
4.5W or less/0.1A (LAN Interface)
During operation: 38W or less /1.5A
(at 25°C, print density setting 100%, paper width
80mm, print duty 9%)
Note: Drawer Kick Drive Current: Max. 1A
However, do not operate two drawer kick at the same time.
2
1
3

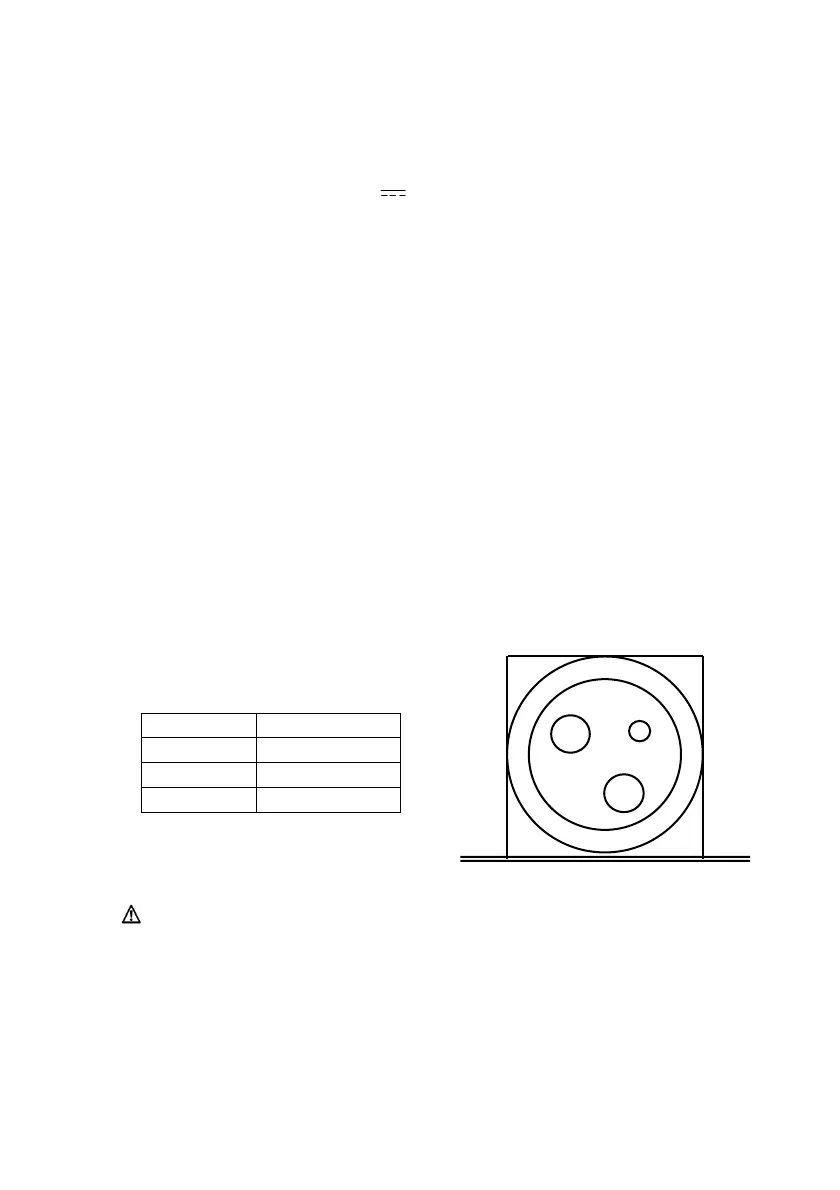

Po
wer C
onnector Pin Assignment
Pin No. Signal Name
1
+24V
2 SG
3 N.C
Warning: Use the specified AC adapter for the power supply.
(If our AC adapter is not used, problems such as bad print
quality, electromagnetic interference, or circuit noise may
occur.)
