Fujitsu LIFEBOOK P Series - Notebook Open; Ports and Operating Elements

Ports and op erati ng eleme nts
Ports and operating elements
Ports
This chapter presents the individual hardw a re components of you r notebook. Yo u can obtain
an overview of the ports and operating elements of the notebook. Please familiarise yourself
with these components before you start to work with your notebook.

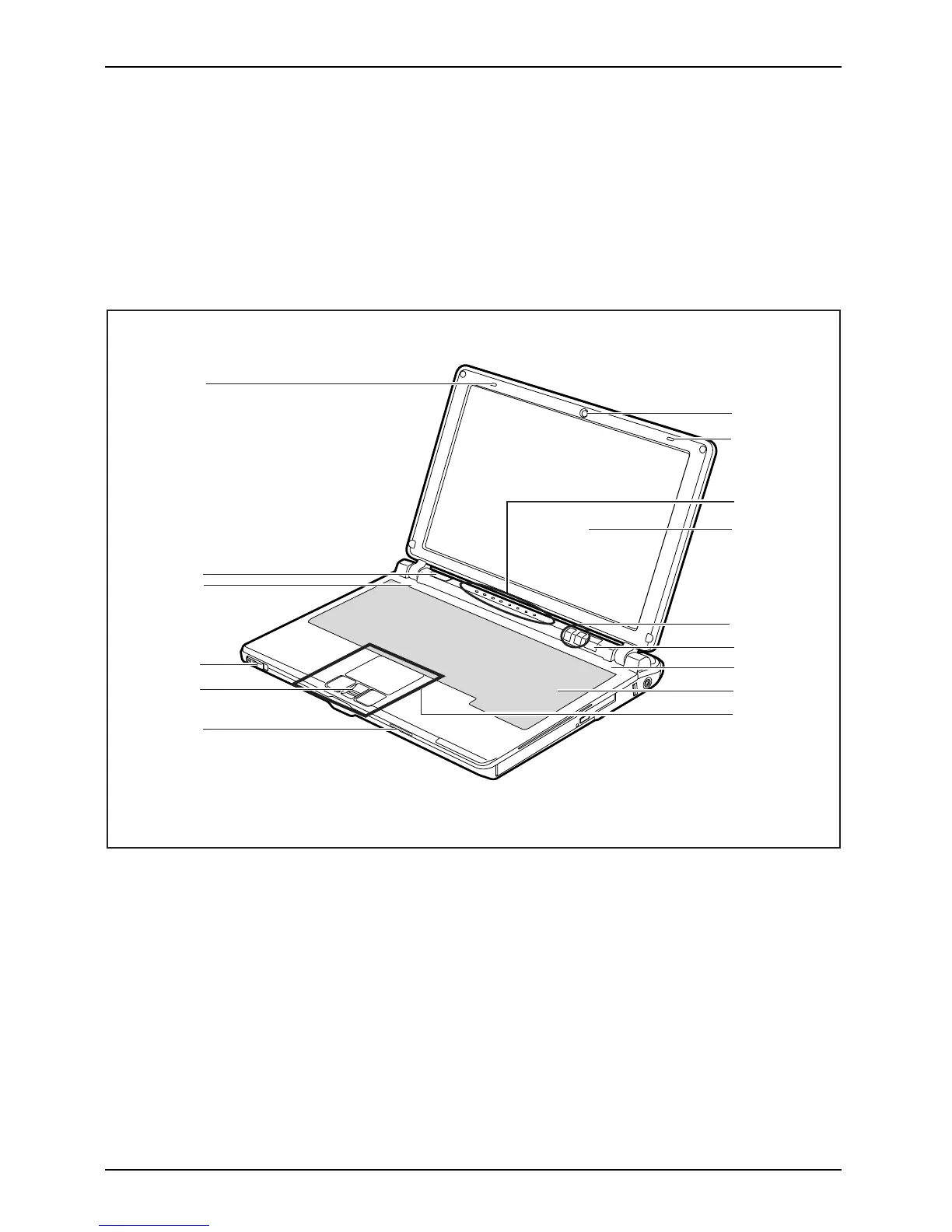

Notebook open
Opennotebook,illustrationCameraMicrophoneStatusindicatorsLCDscreenEasyLau nchkeysON/OFFswitchLoudspeakerKeyboardTouchpadandtouchpadbuttonsPCcardejectbuttonFingerprints ensorON/OFFswitchforwirelessLAN/Bluetooth
1
2
2
4
5
6
3
8
9
12
13
7
7
11
10
1=Camera
2 = Microphone
3 = Status indicators
4 = LCD screen
5 = Easy Launch keys
6 = ON/OFF switch
7 = Loudspe aker
8 = Keyboard
9 = Touchpad and touchpad buttons
10 = M emory card slot
11 = Fingerprint sensor
12 = P C card eject button
13 = ON/OFF switch for wireless LAN /Bluetooth
and UMTS (optional)
