Ports and operating elem en ts
Port Replicator (optional)
PortReplic ato r
The Port Replicator is a docking device w hereby you ca n quickly con nect a F ujitsu
Siemens notebo ok to peripherals such as a mon itor, printer etc.
The Port Replicator has standard ports for monitor, mouse, keyboard and other
peripherals. The audio port is a 2-in-1 audio output (Line Ou t/SPDIF). You can configure
this output in the audio settings of your operating system.
You simply have to dock the notebook to work with your peripherals. There
is no need to connect additional cables.
For further information about the Port R eplicator and the different external
devices that can be connected to it, ref er to the "Professional N otebook" manual,
in the section e ntitled "Connecting externa l devices".
Ports on the Port Replicato
r

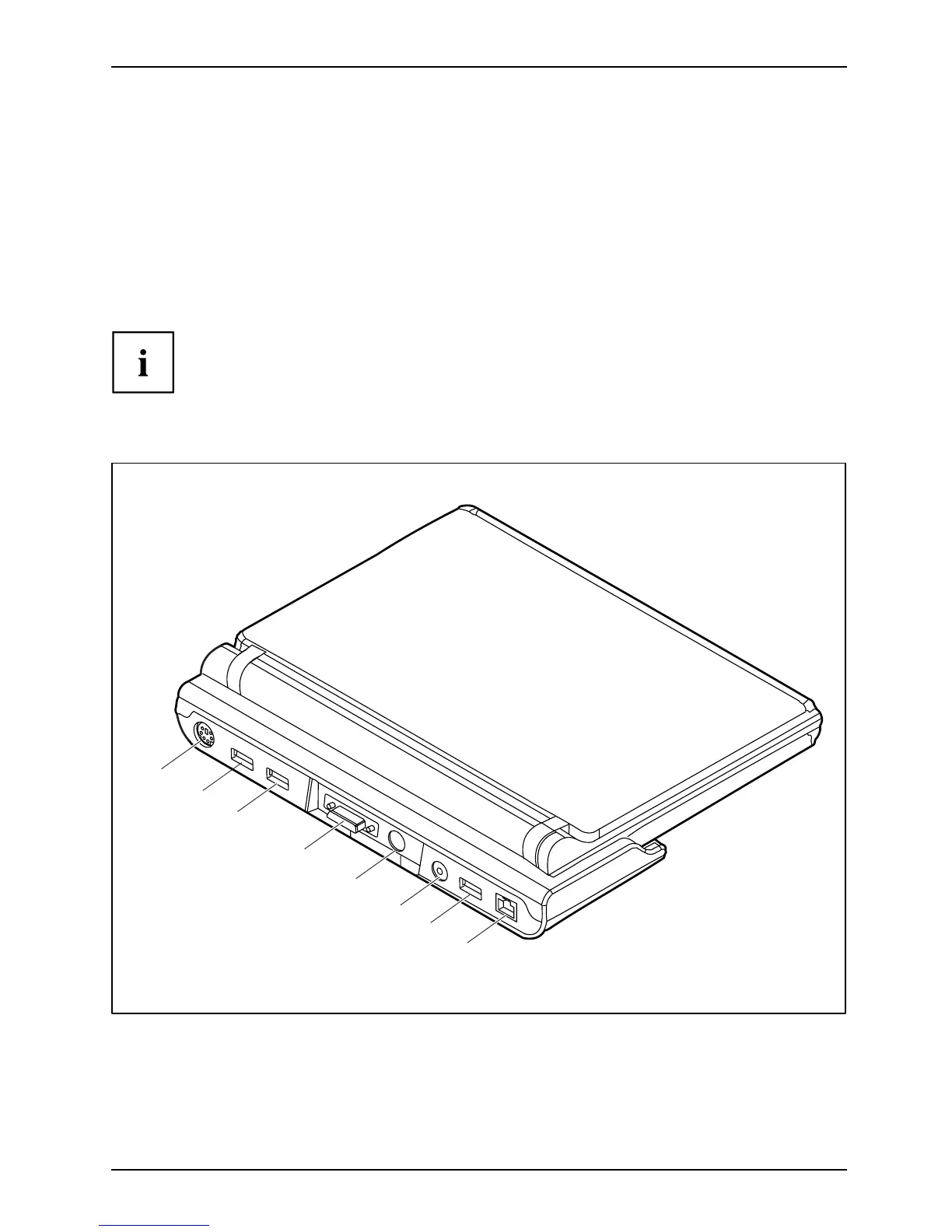

PortReplic ato rPorts
1
3
4
5
2
2
6
2
1 = DC input connector (DC IN)
2=USBport
3 = Monitor port
4 = S-Video out socket
5 = Audio output (Line out /SPDIF)
6 = LAN port
A26391-K198-Z121-1 -7619 , edition 2 25
