Rear Panel Components
DC Power Jack
The DC power jack allows you to plug in the AC
adapter to power your Tablet PC and charge the
internal Lithium ion Battery.
Modem (RJ-11) Telephone Port
The Modem (RJ-11) telephone port is for
attaching a telephone line to the internal
multinational 56K modem.
The internal modem is not intended for use
with Digital PBX systems. Do not connect the
internal modem to a Digital PBX as it may
cause serious damage to the internal modem
or your entire LifeBook T Series Tablet PC.
Consult your PBX manufacturer’s
documentation for details. Some hotels have
Digital PBX systems. Be sure to find out
BEFORE you connect your modem.

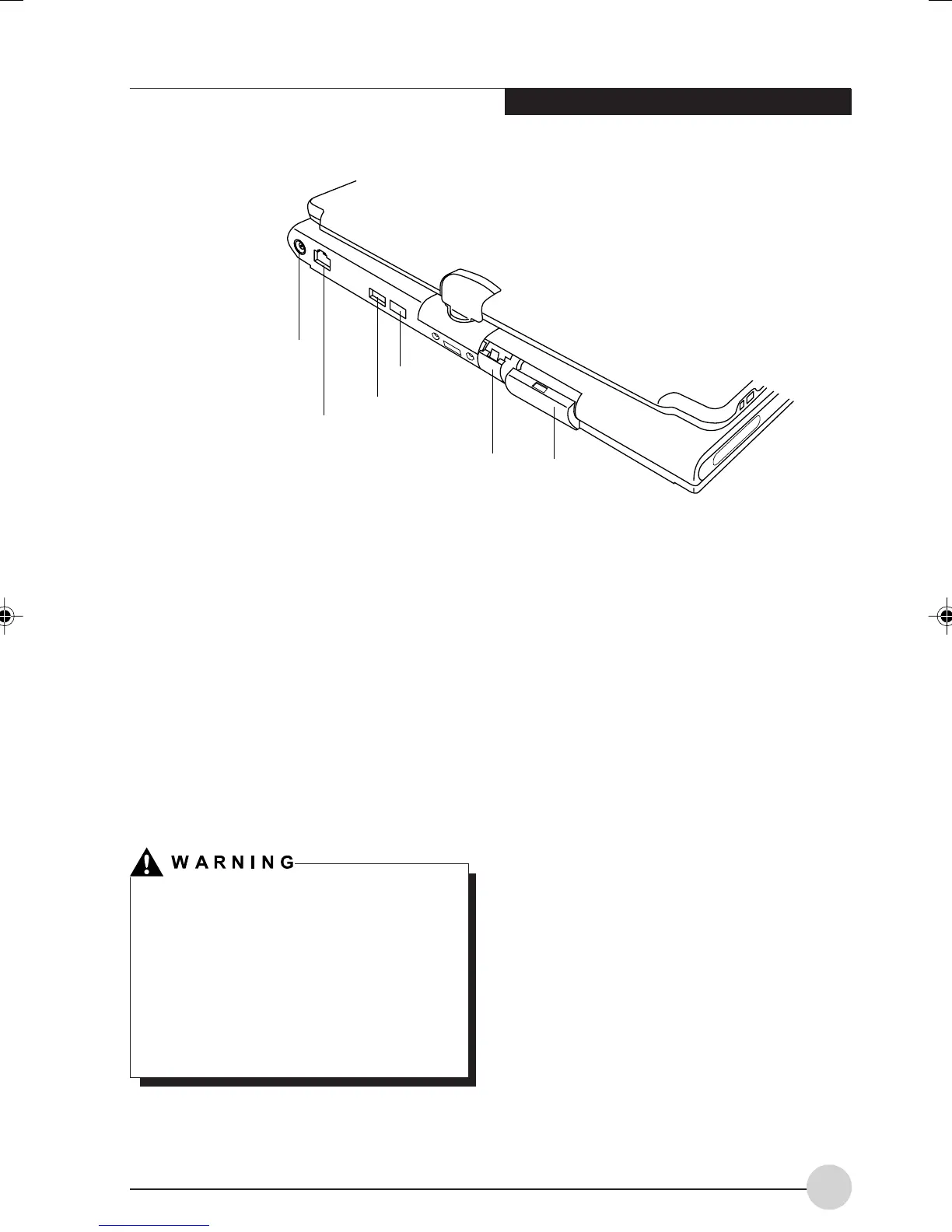

Figure 2-7. LifeBook T Series Tablet PC rear panel
USB 2.0 Ports
The two USB 2.0 ports allow you to connect
Universal Serial Bus devices.
Infrared Port
The fast IrDA compatible port allows you to
communicate with another IrDA compatible
infrared device without a cable.
LAN (RJ-45) Jack
The optional internal LAN (RJ-45) port is used
for an internal Fast Ethernet (Gigabit Ethernet
1000/100/10Mbps) connection.
External Monitor Port
The external monitor port allows you to connect
an external VGA or SVGA monitor. Note that
when the optional Port Replicator is attached to
the system, you must use the external monitor
port on the Port Replicator rather than the port
on the system.
External
Monitor Port
LAN (RJ-45) Jack
Infrared Port
DC Power Jack
USB 2.0 Ports
Modem (RJ-11) Port
