Battery
Pack Latch
Lithium Ion
Battery Bay
Battery
Pack Latch
Port
Replicator
Connector
Memory
Upgrade
Compartment
Main Unit and
Configuration
Label
(approximate
location)

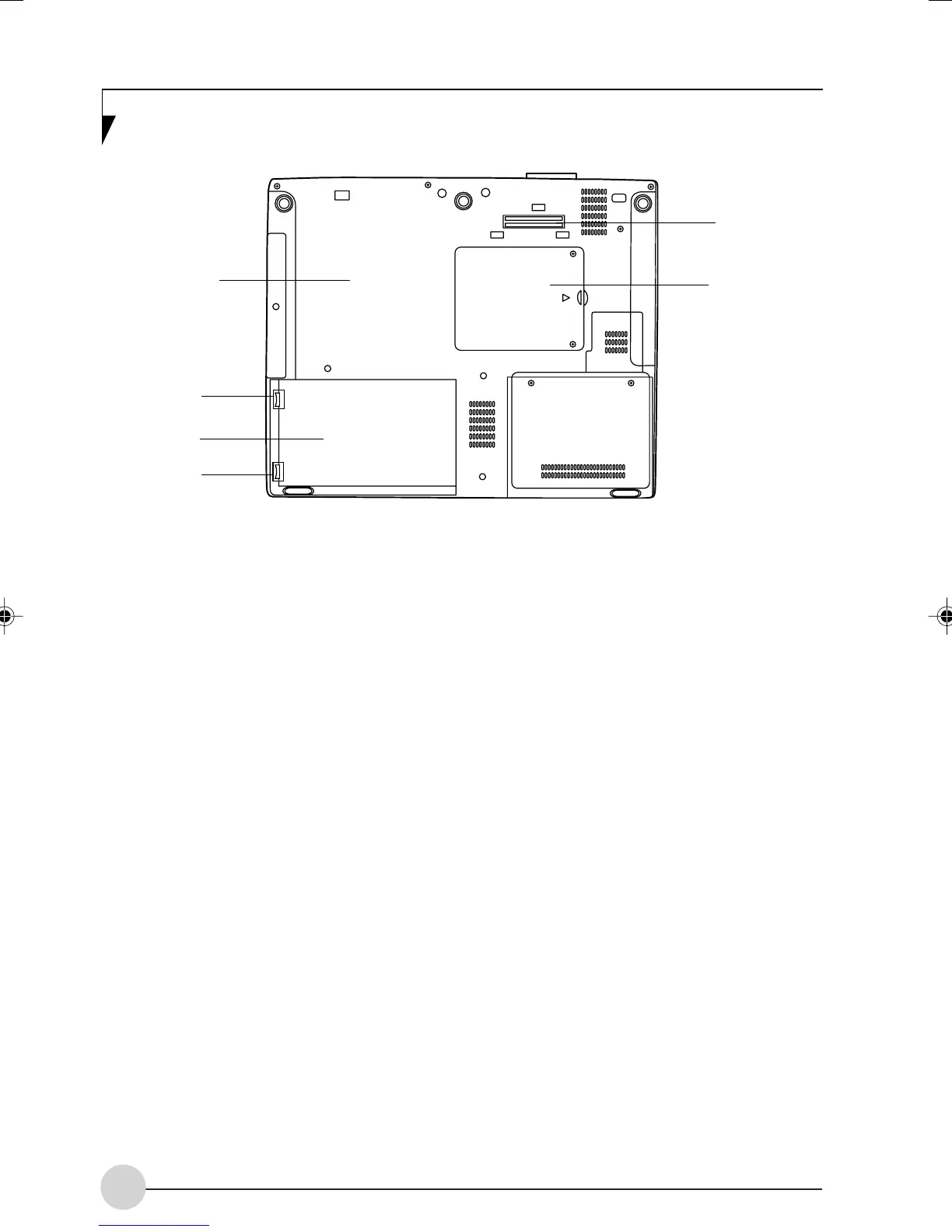

Figure 2-8. LifeBook T Series Tablet PC bottom panel
Bottom Components
Following is a brief description of your Tablet PC’s
bottom panel components.
(Figure 2-8)
Lithium Ion Battery Bay
The battery bay contains the internal Lithium Ion
battery. It can be opened for the removal of the
battery when stored over a long period of time or
for swapping a discharged battery with a charged
Lithium ion battery.
Port Replicator Connector
This connector allows you to connect the optional
Port Replicator.
Main Unit and Configuration Label
The configuration label shows the model number
and other information about your LifeBook T
Series Tablet PC. In addition, the configuration
portion of the label has the serial number and
manufacturer information that you will need to
give your support representative. It identifies the
exact version of various components of your
Tablet PC.
Memory Upgrade Compartment
Your Tablet PC comes with high speed
Synchronous Dynamic RAM (SDRAM). The
memory upgrade compartment allows you to
expand the system memory capacity of your
Tablet PC, hence improving overall performance.
