Fujitsu MCM3064SS - Figure 7.5 SCSI Interface Connector (Cable Side)

7.3 Physical Requirements
C156-E228-02EN 7-7
Symbol mm Remarks
C1 2.540 ————
C2 60.960 ————
C3 2.540 ————
C4 3.302 ————
C5 32.385 ————
C6 68.072 ————
C7 6.096 ————
C8 7.620 Maximum value
Notes: 1. The tolerance is ± 0.127 mm unless otherwise specified.
2. A connector cover and strain relief are not shown in this figure.

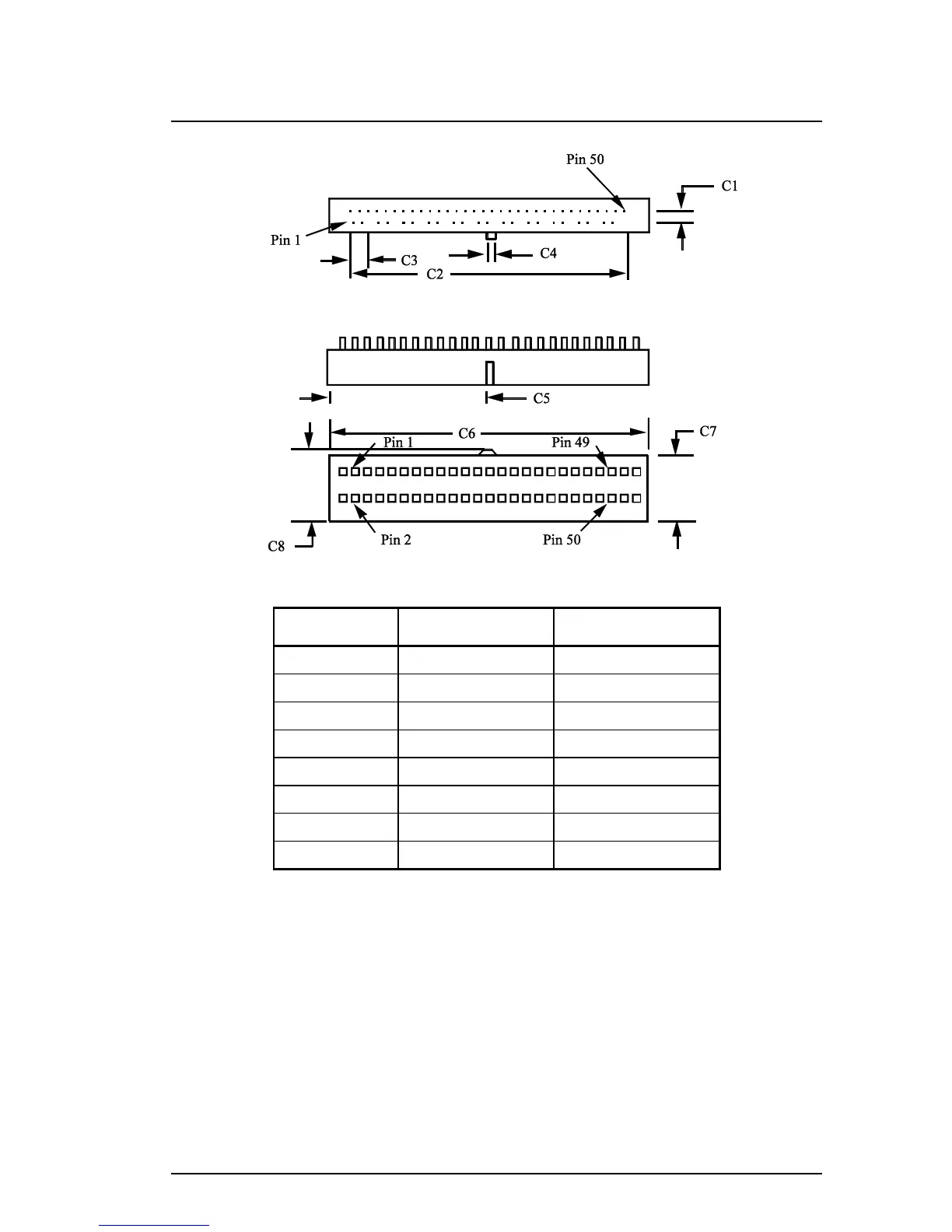

Figure 7.5 SCSI interface connector (cable side)
