Installation
4-6 C156-E228-02EN

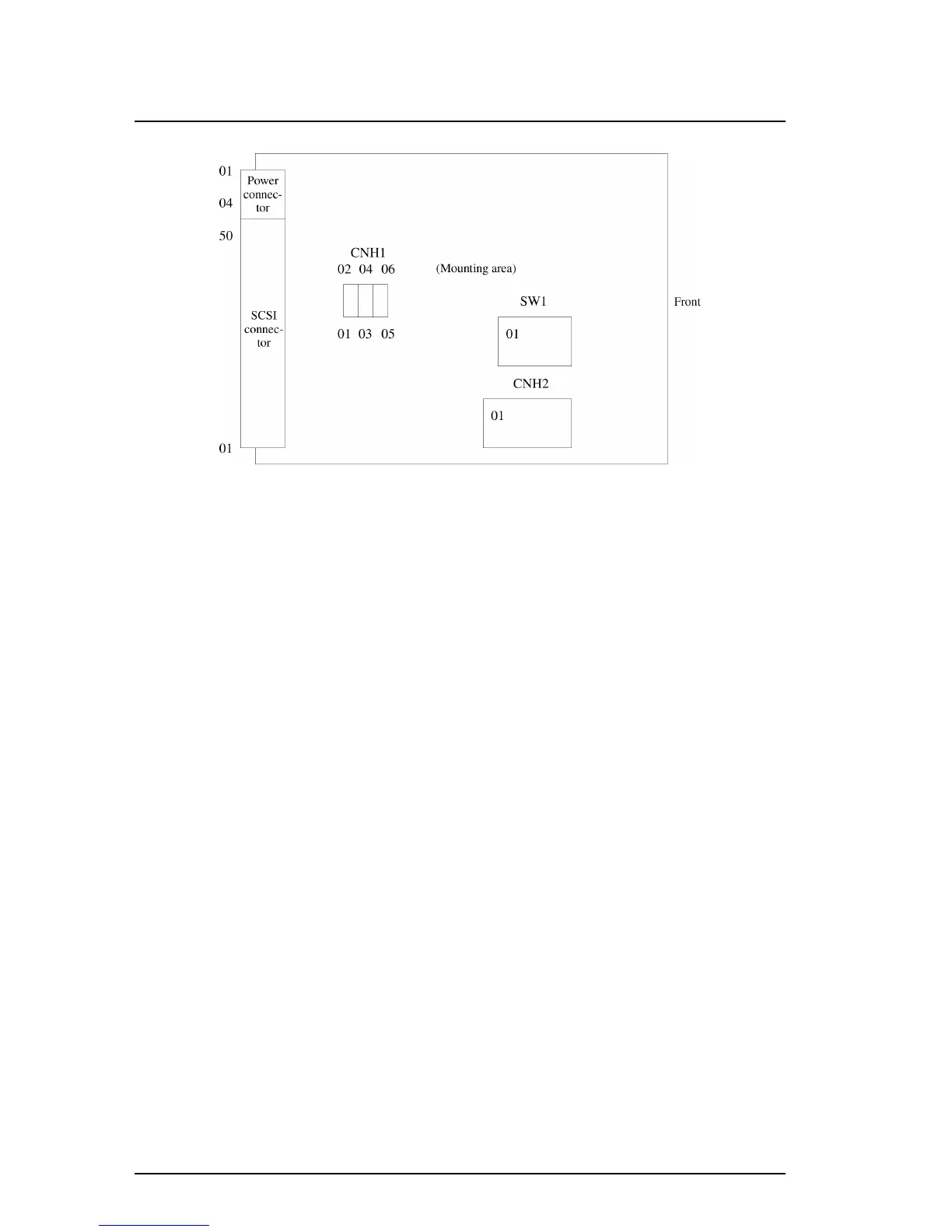

Figure 4.4 Positions of setting terminals and switches
Setting items are as follows:
• SW1
SCSI ID
SCSI data bus parity check
Write cache mode
Device type mode
Spindle automatic stop mode
Factory test mode (user setting inhibited)
• CNH1
SCSI terminating resistor power supply
SCSI terminating resistor mode
• CNH2
SCSI ID
Device type mode
Verify mode
SCSI type-0
• SCSI connector
SCSI signal
• Power connector
+5VDC
GND
