Fujitsu MCM3064SS - Figure 7.11 SELECTION Phase

7.6 Bus Phases
C156-E228-02EN 7-23
µ
Bus Settle Delay (Min)
Bus Clear Delay (Min)
Deskew Delay
×
2 (Min) Deskew Delay
×
2 (Min)
Deskew Delay × 2 (Min)
Deskew Delay
×
2 (Min)
Bus Clear Delay + Bus Settle Delay (Min)

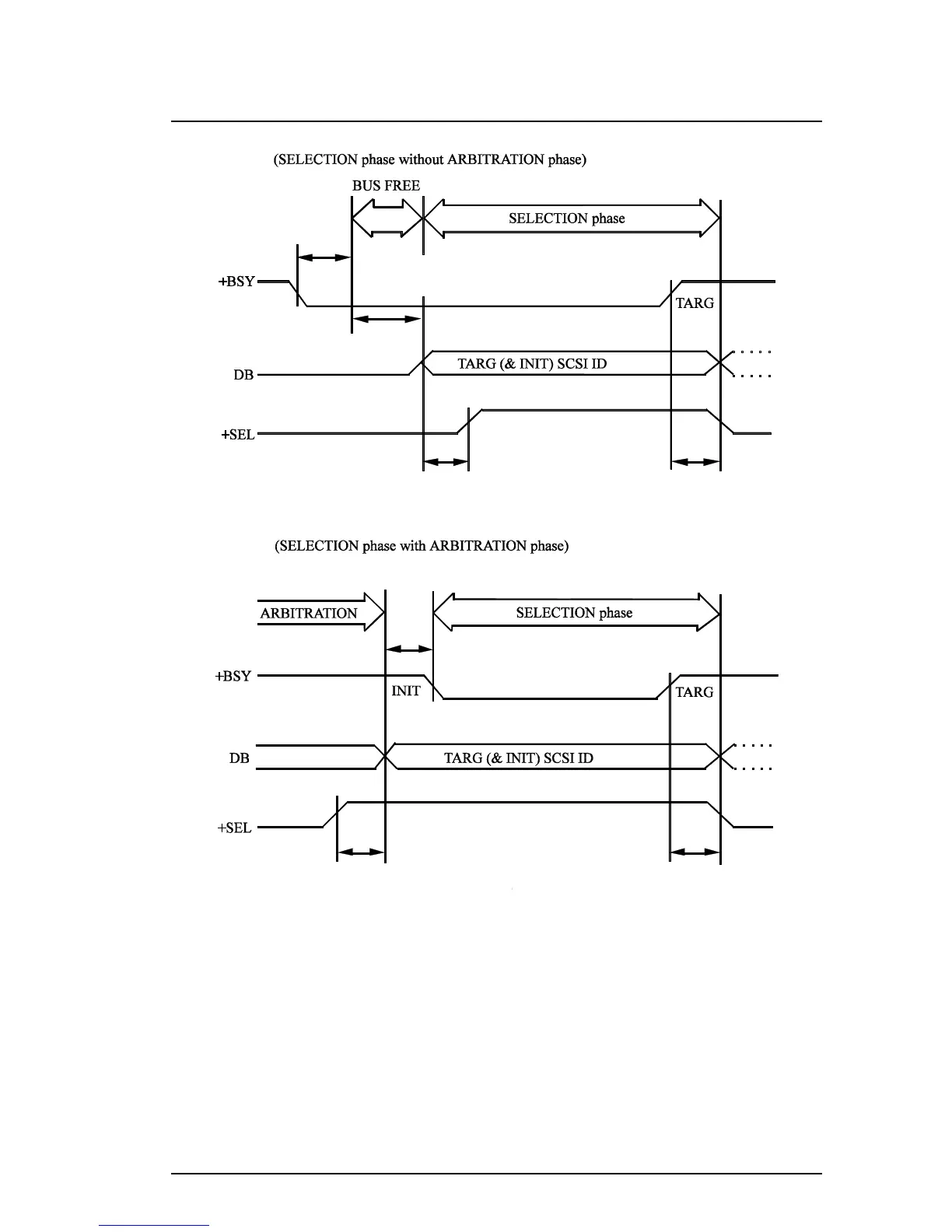

Figure 7.11 SELECTION phase
