SCSI BUS
7-32 C156-E228-02EN
4) Starting with the rise of the ACK pulse, the TARG reads data on the data
bus (DB7 to DB0, P) within the Hold time.
(3) Time monitoring of ACK response wait
When the ODD operates as a TARG, wait time for ACK response to REQ can be
monitored.

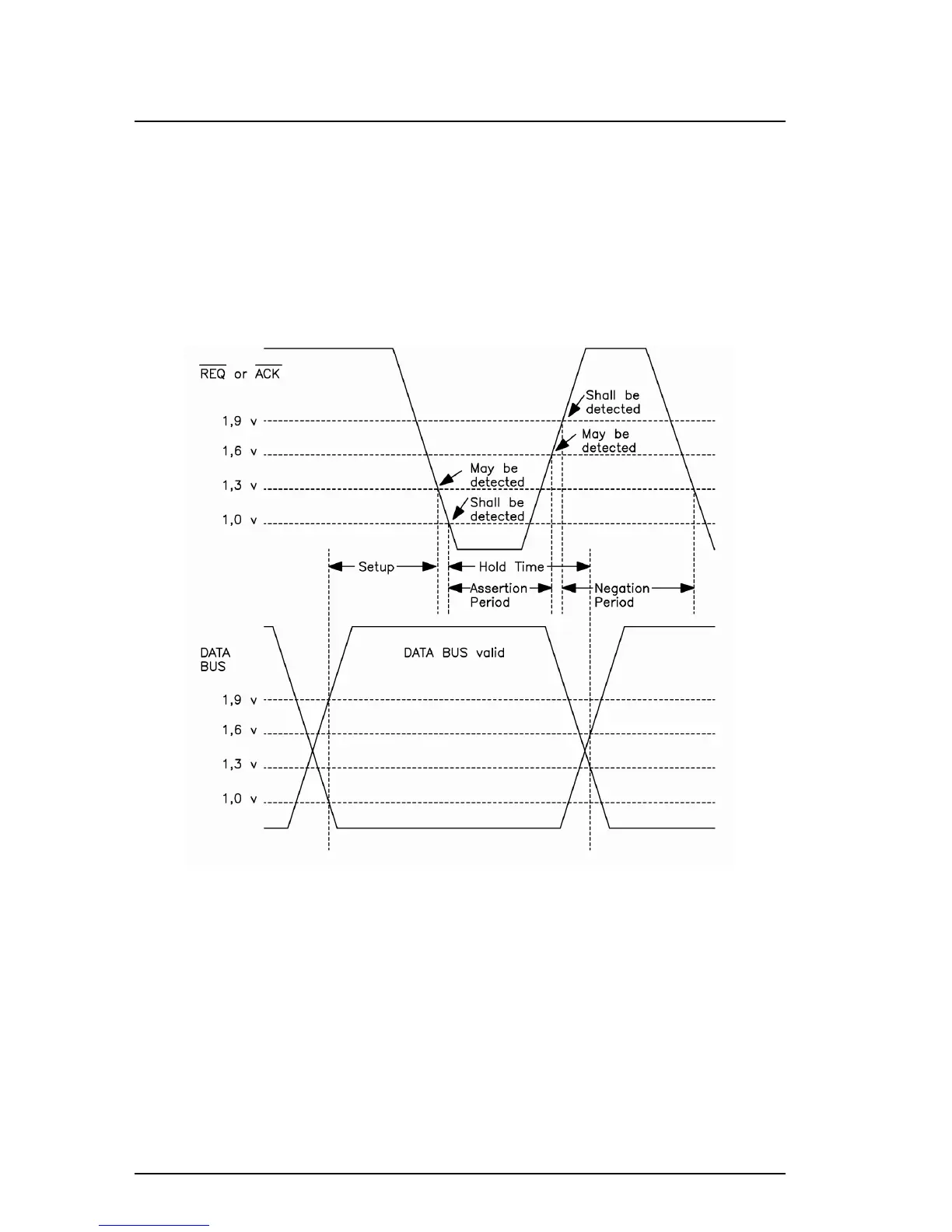

Figure 7.15 Transfer in synchronous mode
To Next Page
