SCSI BUS
7-50 C156-E228-02EN

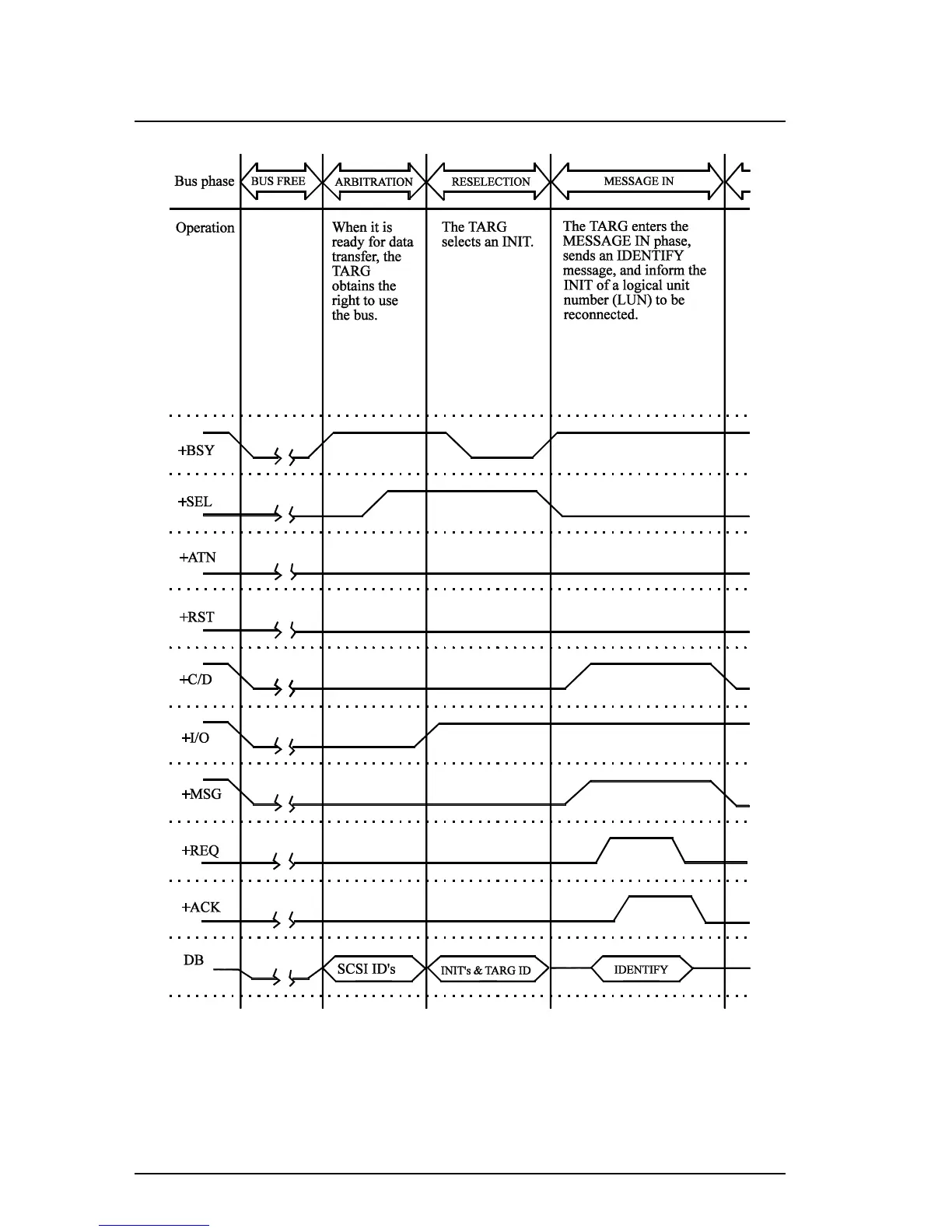

Figure 7.22 Example of bus phase transition on execution
of a single command (3 of 5)
