Fujitsu N7100 Getting Started

11

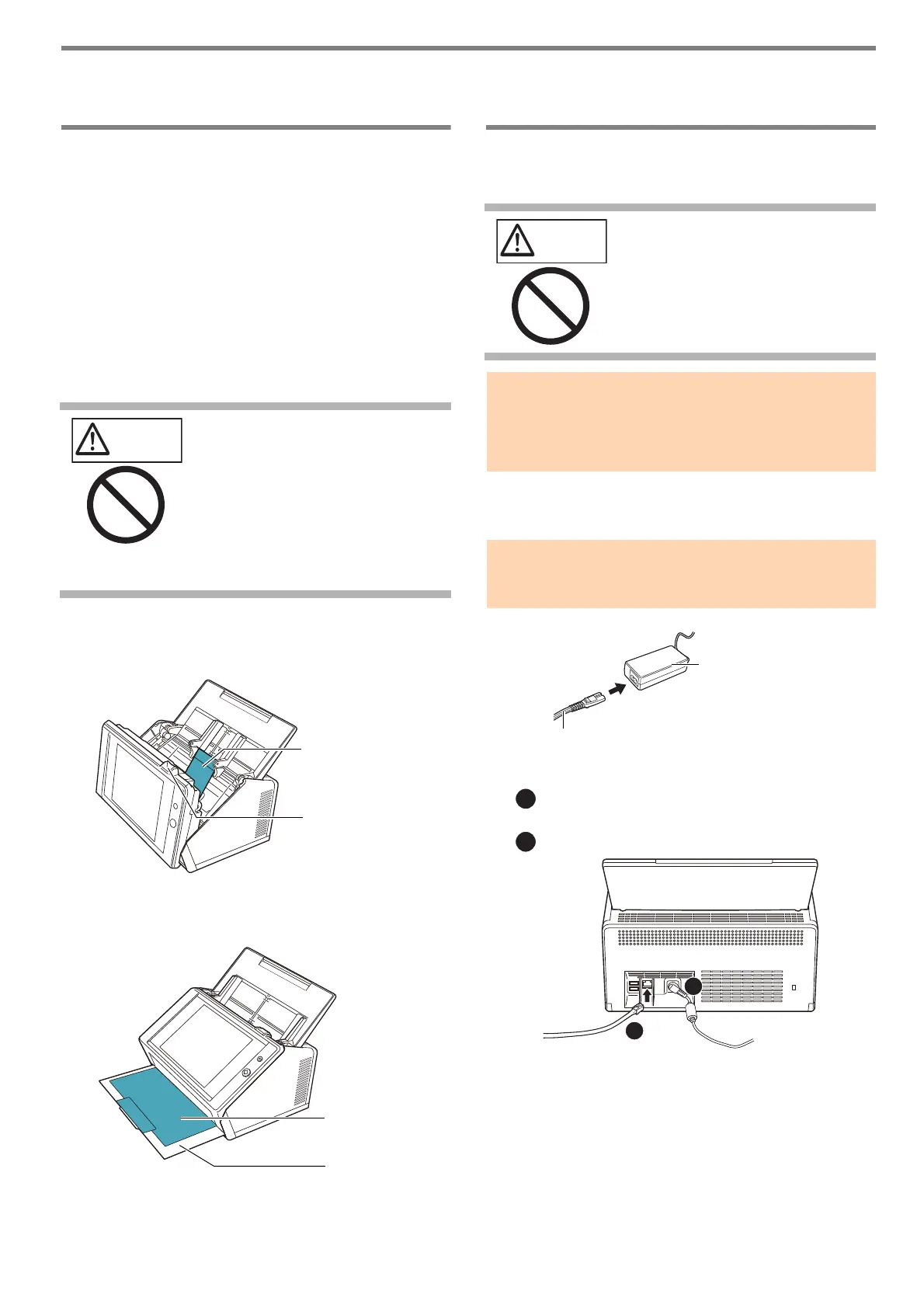

Chapter 2 Setting up the Scanner
2.1 Removing the Protective
Packaging
The scanner comes with a protective foam sheet and
protective card attached. Follow the procedure described
below to remove the protective packaging before using
the scanner.
1. Remove the tape and protective foam sheet that
covers the touch panel.
2. Remove the tape and protective foam sheet on
the back of the ADF paper chute and put the
paper chute all the way back.
3. Pull the cover release catch to open the LCD
cover, and remove the tape and protective card
between the side guides.
4. Pull the stacker forward, and then remove the
tape and protective card.
2.2 Connecting the Scanner
1. Place the scanner at its installation site.
2. Connect the AC cable to the AC adapter
(collectively called "power cable").
3. Connect the cables to the scanner.
Connect the power cable to the scanner's power
connector.
Connect the LAN cable to the LAN connector.
4. Connect the other end of the LAN cable to the
network hub.
5. Insert the power cable into an AC outlet.
The power is connected but the scanner is not yet
ready for operation.
CAUTION
 Be careful not to get your hands
or fingers caught when you put
the paper chute all the way
back.
 Do not forcefully fold the ADF
paper chute beyond the limit.
The scanner and the ADF paper
chute may come apart, which
may cause an injury or a
scanner malfunction.
Cover release
catch
Protective card
Protective
card
Stacker
CAUTION
Do not hold the ADF paper chute
to lift up the scanner.
The scanner and the ADF paper
chute may come apart, which may
cause an injury or a scanner mal-
function.
ATTENTION
The following space is required to set up the scanner:
 Depth: 700 mm (28 in.)
 Width: 400 mm (16 in.)
 Height: 500 mm (20 in.)
ATTENTION
Use only the AC adapter and AC cable provided with the
scanner.
AC cable
AC adapter
1
2
1
2

Fujitsu N7100 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 3048 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	25 ppm
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	50 ipm
Black/white scanning color modes	Grayscale, Monochrome
Display	LCD
Scanner type	ADF scanner
Product color	Black
Display diagonal	8.4 \
Display resolution	1024 x 768 pixels
Scan to	E-mail, E-mail Server, Fax, File, FTP
Sensor type	CIS
Scan file formats	JPG, PDF, TIFF
Daily duty cycle (max)	400 pages
Supported network protocols	TCP/IP(IPv4 / IPv6), DNS, DHCP, SMTP, SMB, LDAP, NTP, FTP, HTTP, SNMP
Auto document feeder (ADF) input capacity	50 sheets
Maximum scan area (ADF)	216 x 355.6 mm
Minimum scan area (ADF)	50.8 x 50.8 mm
ISO A-series sizes (A0...A9)	A4, A5, A6, A8
ISO B-series sizes (B0...B9)	B5, B6
Scanning media types supported	Business Card, Plain paper, Plastic Card, Post Card(JPN), Thick paper, Thin paper
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	40 - 209 g/m²
USB version	2.0
Standard interfaces	Ethernet, USB 1.1, USB 2.0
Input voltage	100-240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	38 W
Power consumption (PowerSave)	2 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	RoHS, ENERGY STAR
Bundled software	Scanner Central Admin Server
Ethernet LAN data rates	10, 100, 1000 Mbit/s

Weight and Dimensions

Depth	232 mm
Width	300 mm
Height	172 mm
Weight	6000 g
