Fujitsu N7100 Getting Started

9
Chapter 1 Before Using the Scanner
1.1 From Arrival through
Operation
The following shows the flow from scanner arrival
through operation.
This manual provides information about Steps 1 to 5
shown below.
For information about Steps 6 to 9, refer to the manual
downloaded in Step 5.

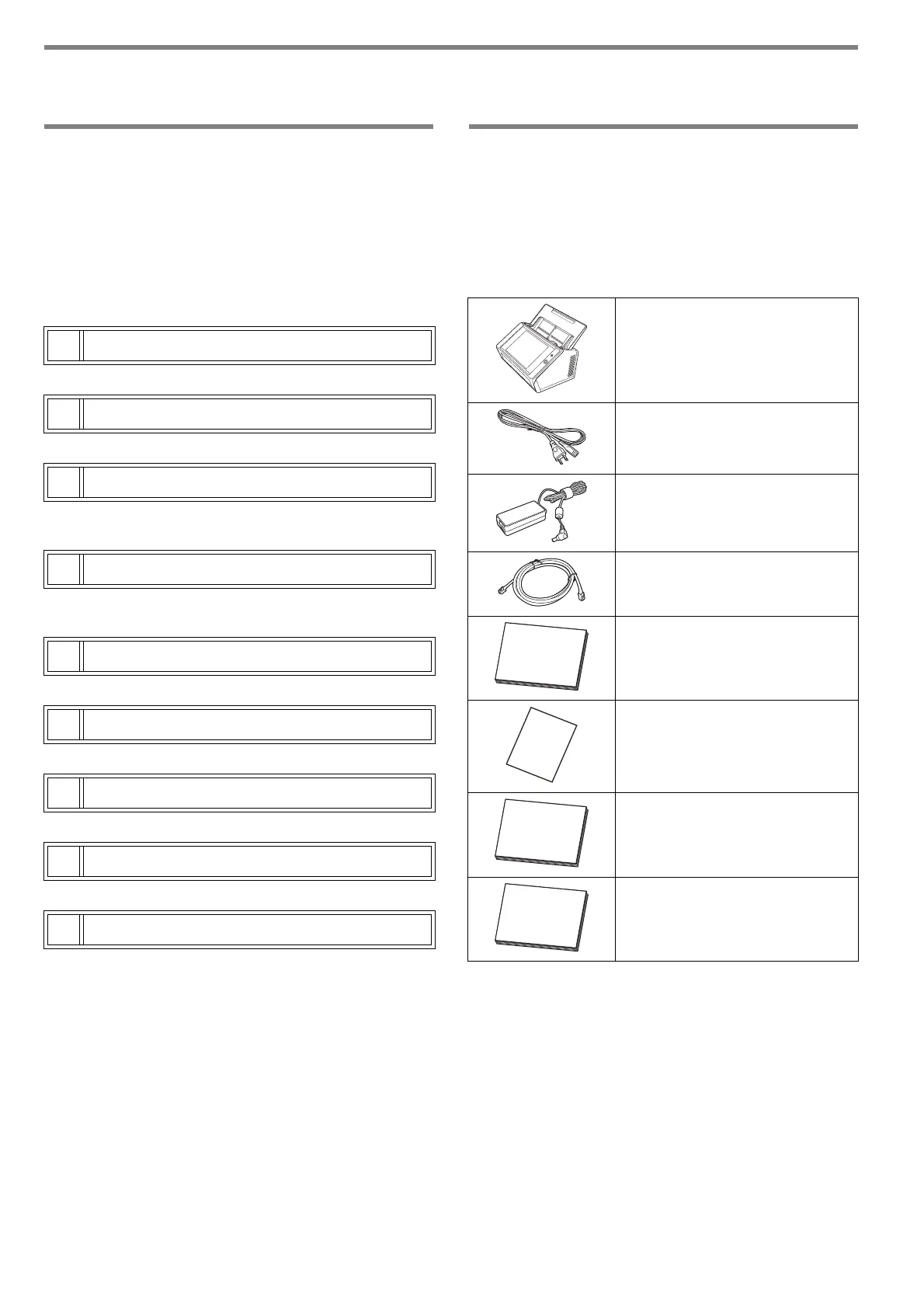

1.2 Checking the Components
Make sure that all items shown below are included in the
package. If any other packaging is provided, make sure
to store it as well. Make sure to handle the components
with care.
If anything is missing or damaged, contact your FUJITSU
scanner dealer or an authorized FUJITSU scanner
service provider.
1 Check package
"1.2 Checking the Components" (page 9)
2 Setup scanner
"Chapter 2 Setting up the Scanner" (page 11)
3 Configure scanner basic settings
"Chapter 3 Configuring Scanner Basic Settings"
(page 12)
4 Check network connection
"Chapter 4 Checking the Network Connection"
(page 16)
5 Download manual
"Chapter 5 Downloading the Manual" (page 17)
6 Install Admin Tool
Refer to the Operator's Guide.
7 Perform scan test
Refer to the Operator's Guide.
8 Configure required settings for scanner use
Refer to the Operator's Guide.
9 Operate scanner
Refer to the Operator's Guide.
Scanner
AC cable
AC adapter
LAN cable (straight-through)
Getting Started (this manual)
Instruction
EULA Terms for Microsoft
®
Windows
®
Embedded 8 Standard
End-User License Agreement for
FUJITSU Image Scanner N7100/
N7100A Embedded Software

Fujitsu N7100 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 3048 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	25 ppm
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	50 ipm
Black/white scanning color modes	Grayscale, Monochrome
Display	LCD
Scanner type	ADF scanner
Product color	Black
Display diagonal	8.4 \
Display resolution	1024 x 768 pixels
Scan to	E-mail, E-mail Server, Fax, File, FTP
Sensor type	CIS
Scan file formats	JPG, PDF, TIFF
Daily duty cycle (max)	400 pages
Supported network protocols	TCP/IP(IPv4 / IPv6), DNS, DHCP, SMTP, SMB, LDAP, NTP, FTP, HTTP, SNMP
Auto document feeder (ADF) input capacity	50 sheets
Maximum scan area (ADF)	216 x 355.6 mm
Minimum scan area (ADF)	50.8 x 50.8 mm
ISO A-series sizes (A0...A9)	A4, A5, A6, A8
ISO B-series sizes (B0...B9)	B5, B6
Scanning media types supported	Business Card, Plain paper, Plastic Card, Post Card(JPN), Thick paper, Thin paper
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	40 - 209 g/m²
USB version	2.0
Standard interfaces	Ethernet, USB 1.1, USB 2.0
Input voltage	100-240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	38 W
Power consumption (PowerSave)	2 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	RoHS, ENERGY STAR
Bundled software	Scanner Central Admin Server
Ethernet LAN data rates	10, 100, 1000 Mbit/s

Weight and Dimensions

Depth	232 mm
Width	300 mm
Height	172 mm
Weight	6000 g
