Getting s tarted
Adjusting height
The he ight adjustment is fixed in the transport position.
1
2

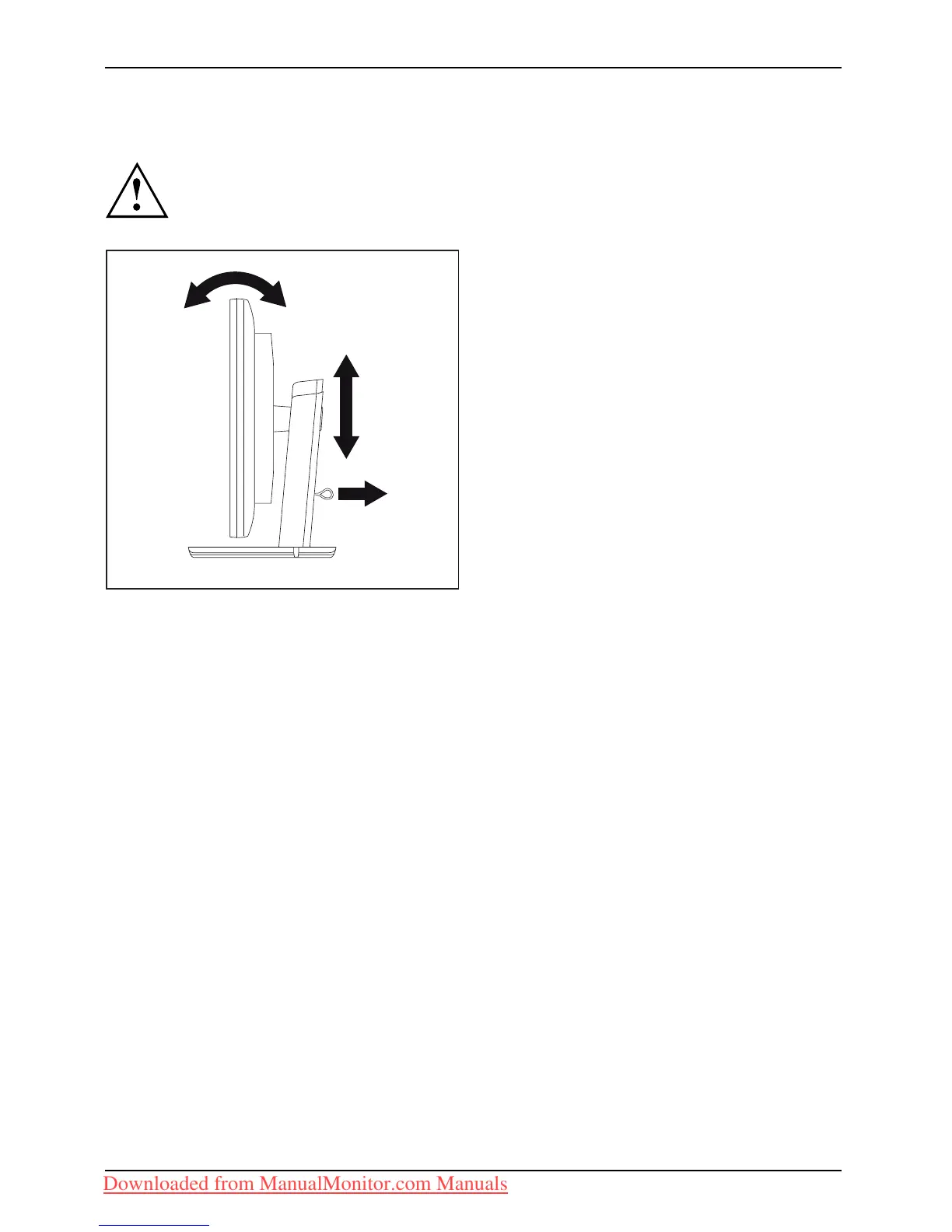

► To free the fixing, rem o ve the locking
pin on the flange (1).
The h eight of the monitor can be adjusted
by appro ximately 120 mm.
► Grasp the monitor with both hands on
the right and left edge of the casing
and move it up or down (2).
Adjusting the i
nclination
The inclination of the monitor can be adjusted by -3° (forward) and +35° (back) from its
vertical position.
► H old the monitor with both hands on the left and right sides of the casing
and m ove it to the desired angle.
14 Fujitsu Technology Solutions
