Getting started
Connecting the device
Please observe the safety information in "Important notes", Page 7.
CE conformance and optimum picture quality are guaran teed only if
you use the data cables supplied.
► Sw itch off the monitor and the computer.
► D isconnect the power plug
from the computer.
Connecting cables to the monitor
The data cables supplied h ave two 20-pin DP connectors for connection to
the monitor and to the computer.
Refer to the operating manual for the computer for information on the computer’s ports and interfaces.
1
2
91087
6
5
11
12
3
4

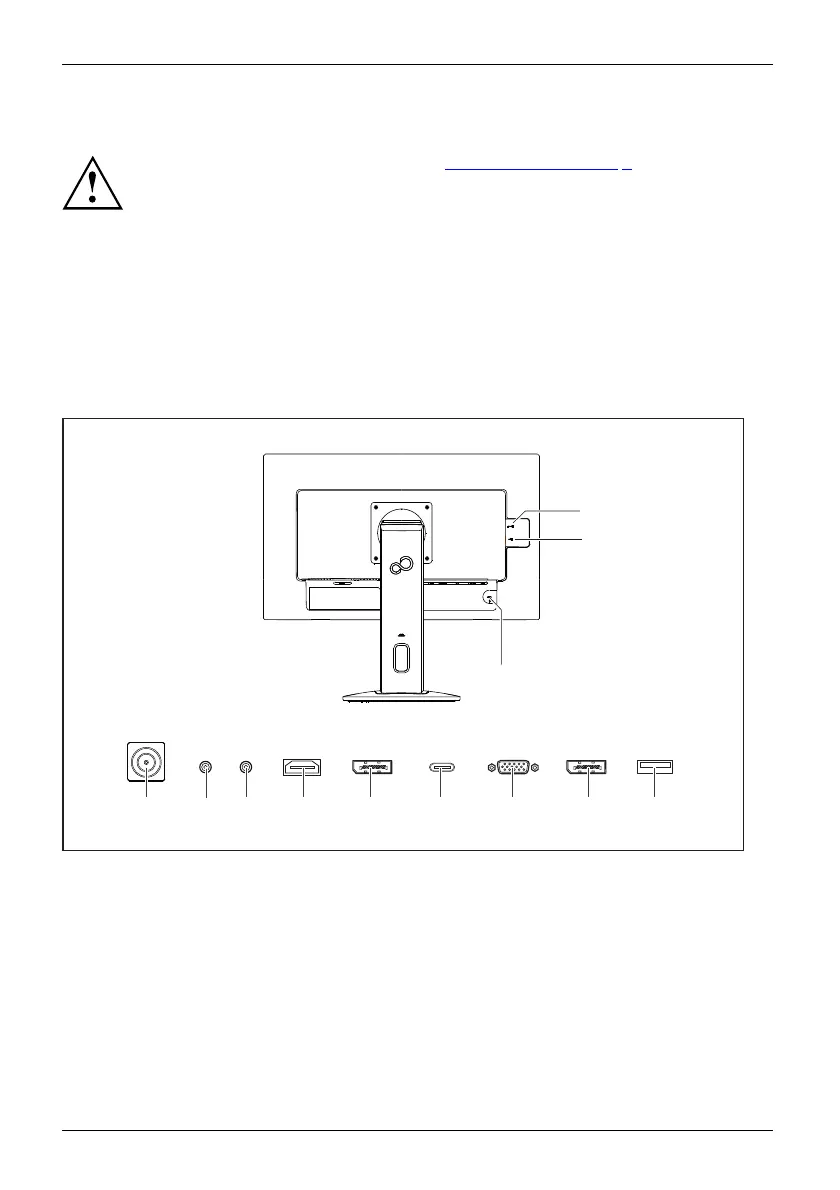

1 = Security slot for Security Lock
2 = Powe r supply socket
3=AUDIOINsocket
4=AUDIOOUTsocket
5=HDMIsocket
6 = Displayport IN socket
7 = USB-C (upstream)
8 = D-SUB socket (VGA)
9 = Displayport OUT socket (daisy chain)
10 = USB 3.0 (Downstream)
11 = USB-C (downstream) - max. 15W (5V/3A)
12 = USB 3.0 (Downstream)
► Select the appropriate data cable for your compu ter.
16 Fujitsu
