Fujitsu P24-9 TE - Connector port specifications

Technical specificati on
Video/TV operating modes via Displayport
Screen resolu tio n Refresh rate Aspect ratio
720 x 480 i 60 Hz
4:3 / 16:9
720 x 480 p 60 Hz
4:3 / 16:9
720 x 576 i 50 Hz
4:3 / 16:9
720 x 576 p 50 Hz
4:3 / 16:9
1280 x 720 p
50 / 60 Hz
16:9
1920 x 1080 i
50 / 60 Hz
16:9
1920 x 1080 p
50 / 60 Hz
16:9

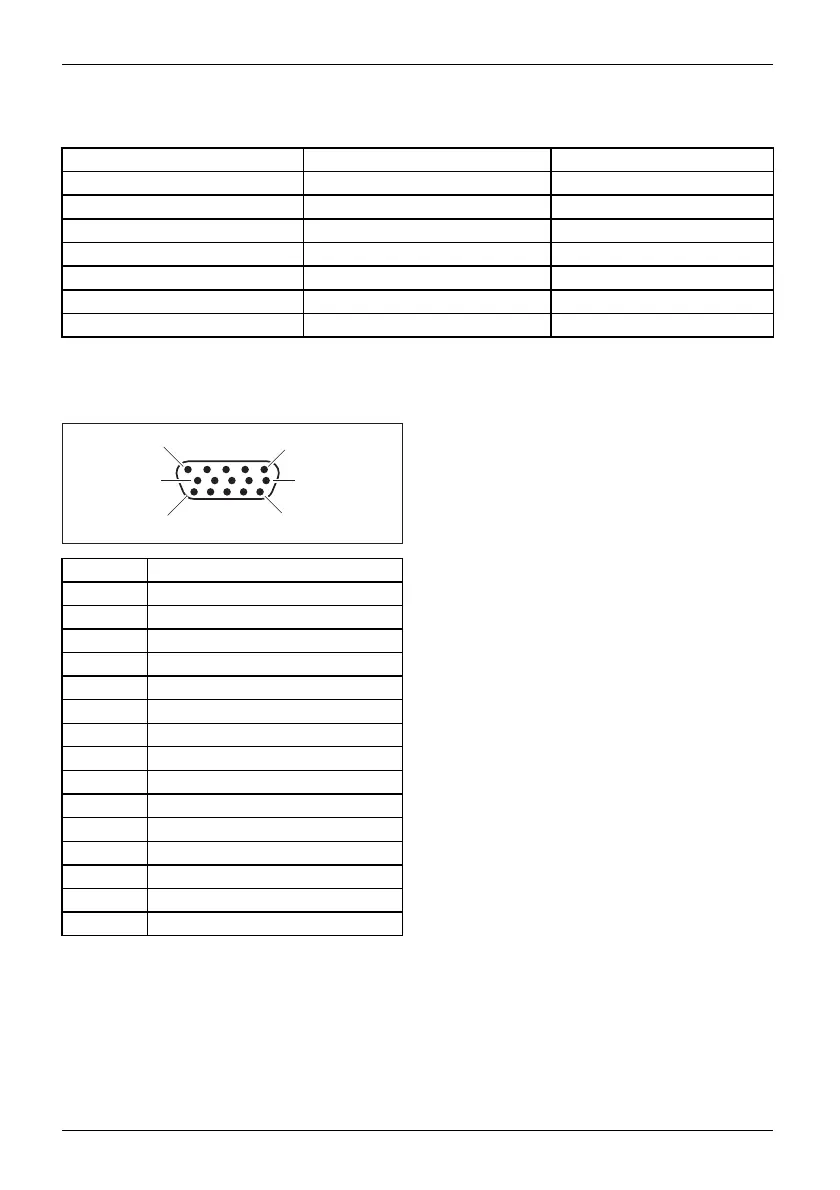

SUBDport
610
1115
51
Pin Meaning
1 Video input red
2 Video input green
3 Video input blue
4
Ground
5
Ground
6 Video ground red
7
Video ground green
8 Video ground blue
9
+5 V (DDC)
10
Sync
. ground
11
Ground
12
DDC Data
13 H. sync
14 V. sync
15
D
DC Clock
