Technical specificati on

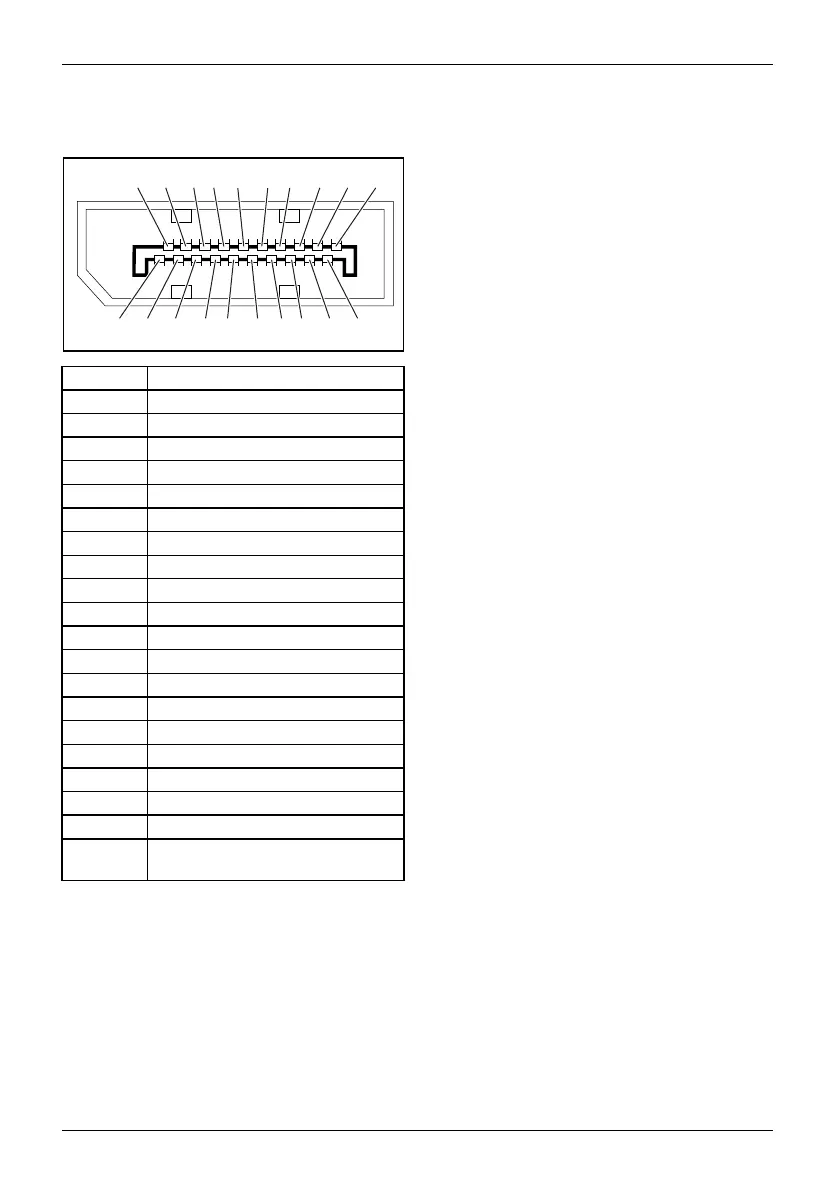

Displayport socket
1319 17 15 13 11 9 7 5
2420 19 16 14 12 10 8 6
Pin Meaning
1
Lane 3 (negative)
2Earth
3
Lane 3 (positive)
4
Lane 2 (negative)
5
Earth
6
Lane 2 (positive
)
7
Lane 1 (negative)
8Earth
9
Lane 1 (positive)
10
Lane 0 (nega
tive)
11 Earth
12
Lane 0 (positive)
13
Connected t o earth
14
Connect
ed to earth
15
Auxiliary channel (positive)
16 Earth
17
Auxiliary channel (negative)
18 Hot Plug Detect
19
Ret
urn for Power
20
Power for connector
(3.3 V 500 mA)
50 Fujitsu

Fujitsu P24-9 TE Specifications

General

3D	No
Pixel pitch	0.2745 x 0.2745 mm
Screen shape	Flat
Display diagonal	23.8 \
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	48 - 76 Hz
Horizontal scan range	30 - 82 kHz
Supported video modes	720p, 1080p
Viewable size, vertical	296 mm
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	527 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Tilt angle range	-5 - 35 °
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, NOR, POL, RUS, SWE, TUR
TV tuner integrated	-
RMS rated power	4 W
Number of speakers	2
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	21 W
Power consumption (off)	0.26 W
Annual energy consumption	28 kWh
Power consumption (standby)	- W
Power consumption (typical)	19 W
Power consumption (PowerSave)	0.3 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Certification	CE, FCC, TÜV GS
Product color	Gray
Package type	Box
Package weight	7200 g
Cables included	AC, DisplayPort, USB

Weight and Dimensions

Depth (with stand)	229.3 mm
Height (with stand)	347 mm
Weight (with stand)	5300 g
Depth (without stand)	63.1 mm
Width (without stand)	540.3 mm
Height (without stand)	325.6 mm
Weight (without stand)	3300 g
