238
9.2 Replacing the Pad ASSY

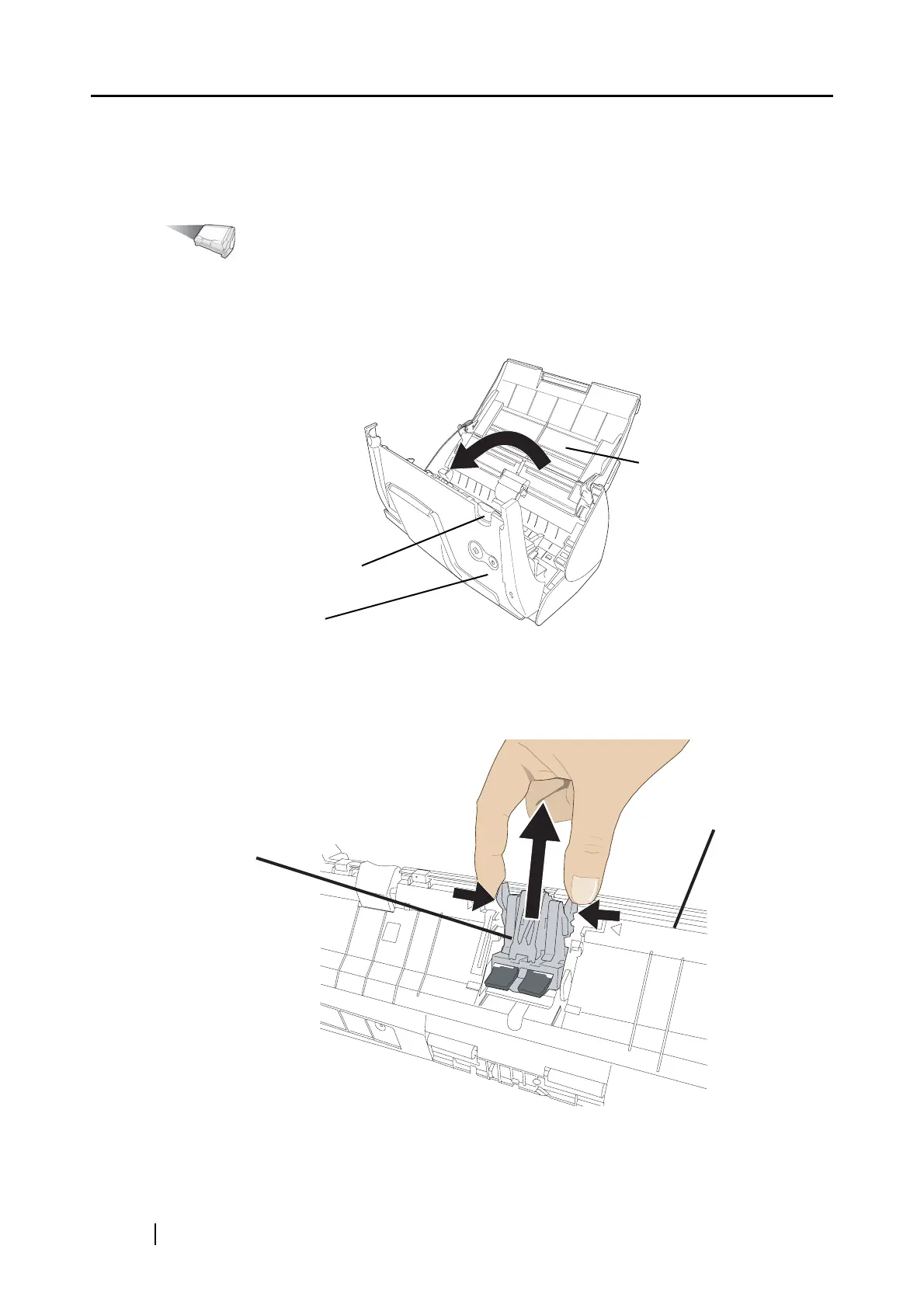

Replace the Pad ASSY following the procedure below.
Operation
1. Remove the documents on the paper chute.
2. Open the ADF while pulling the cover open lever.
3. Remove the Pad ASSY.
Pull out the Pad ASSY in the direction of the arrow while pinching both ends of the Pad
ASSY.
ADF
Cover open lever
Paper chute
ADF
Pad ASSY
