242

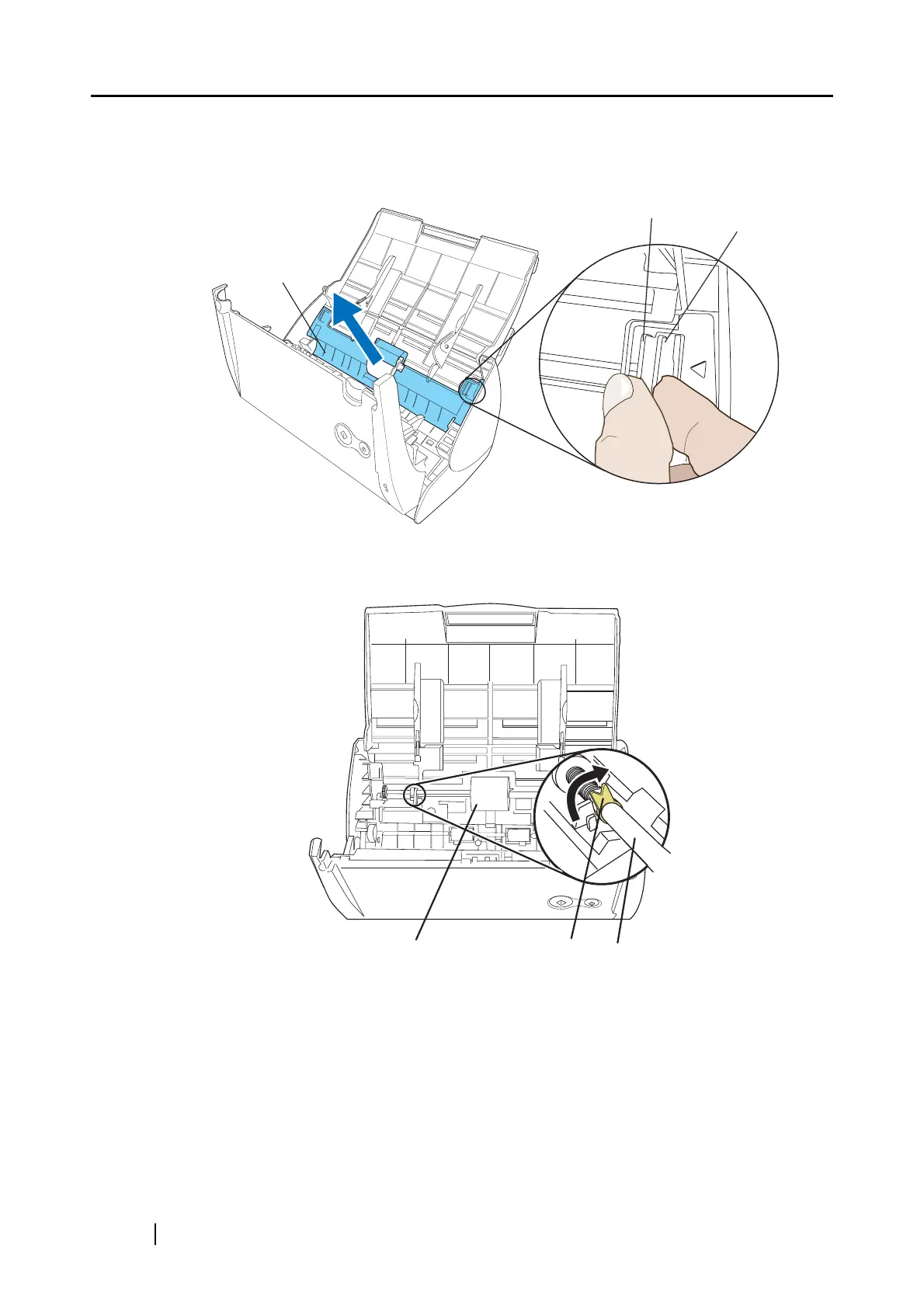

4. Remove the sheet guide.
Hold the pick-up tabs on the sheet guide between the thumb and index finger, and then pull
up the sheet guide to remove.
5. Rotate the pick roller bushing (left).
Pick-up tab
Sheet guide
Pick-up tab
Pick roller bushing
Pick roller
Pick roller shaft
