9.3 Replacing the Pick Roller
ScanSnap S510 Operator's Guide 243
Replacing Consumables and Carrier Sheet
9

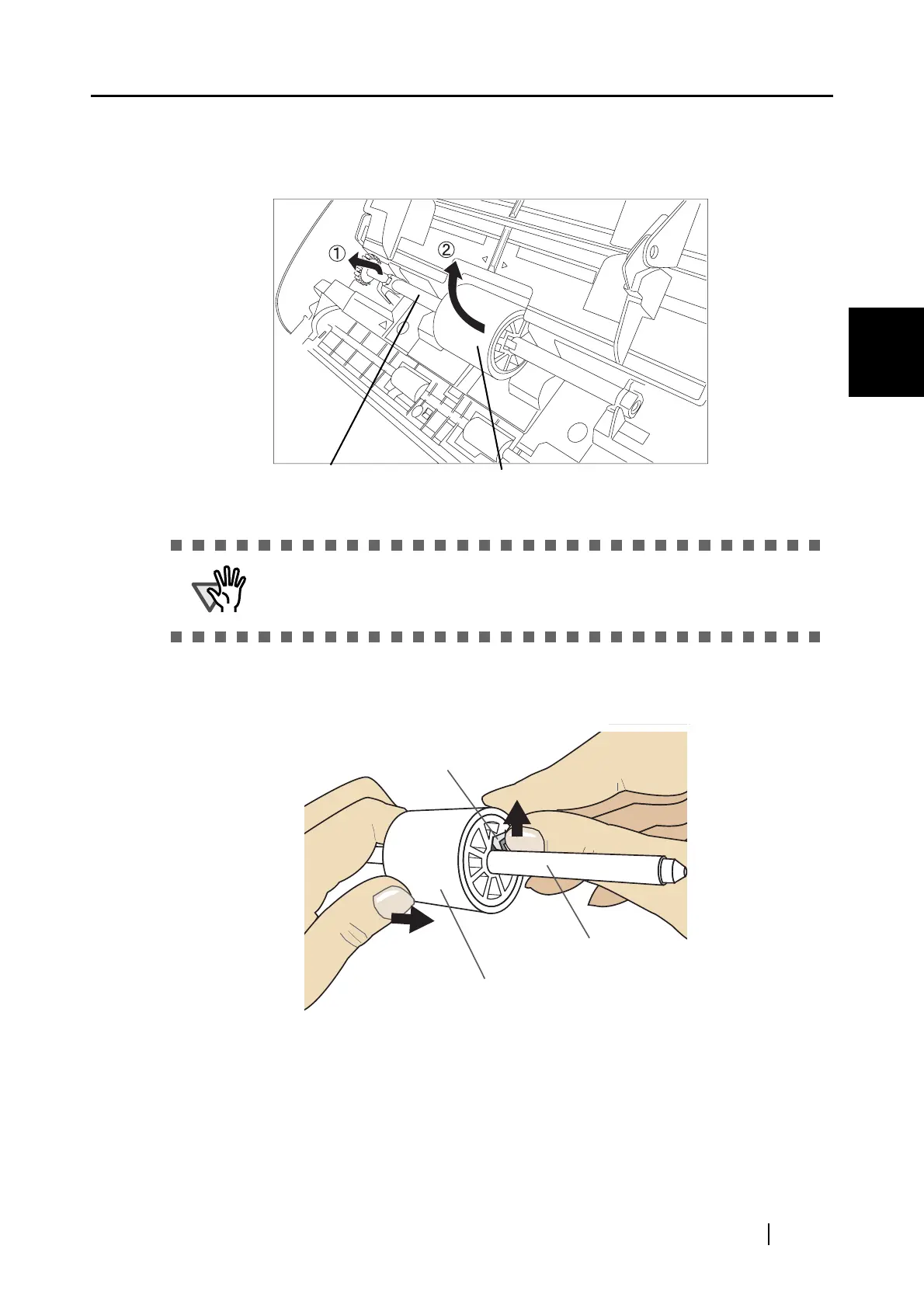

6. Remove the pick roller with its shaft.
Slightly pull up the left part of the Pick roller shaft (about 5mm), move it towards the left
side, and then raise it to remove from the scanner.
7. Remove the pick roller from its shaft.
Pull out the shaft from the pick roller while lifting up its tab.
ATTENTION
If the around the pick roller is dirty by paper-powder, it may cause a scanning
error. Remove the dirt using a dry cloth moistened with Cleaner F1.
* Don't use water, mild detergent or air-spray.
Pick roller shaft
Pick roller
Shaft
Tab
Pick roller
