BX900S2 Operating Manual 79
Starting up and operation
6.1.3.2 Connection Blade GbE Switch/IBP 36/12 (SB11A)

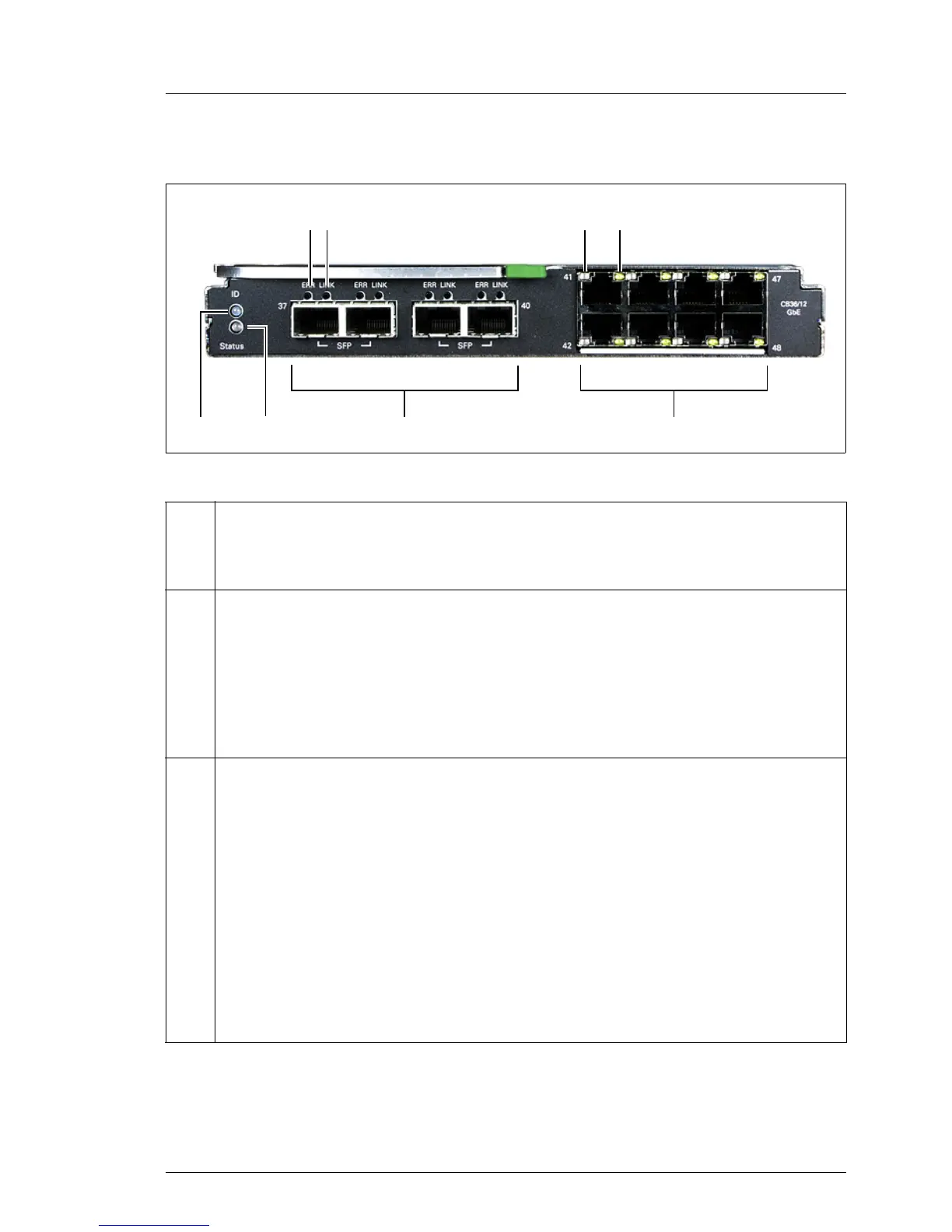

Figure 23: Connection Blade GbE Switch/IBP 36/12
1 ID indicator (blue)
Lit: ID indicator was activated via the management blade
Dark: Normal operation
2 Status indicator (green/orange)
Lights up green: power supply is supplied to the connection blade.
Dark: power supply is not supplied to the connection blade.
Lights up
orange:
Switch error
Dark: Power supply interrupted
A 1-Gbit Ethernet ports for SFP modules for connecting fiber-optic or copper
cables (4x, with two integrated status LEDs each)
3 (ERR) Error indicator (orange)
Dark: No SFP+ transceiver error
Lit: SFP transceiver error
Flashes: SFP module not supported
4 (LINK) LAN connection indicator (green)
Lit: SFP transceiver connection available
Flashes: SFP transceiver connection active
Dark: SFP transceiver connection not available or deactivated
12
34 5 6
AB
